Specifications

–

Product Datasheet

–

Specifications – Innex C570

Camera

• Sensor:

  • SONY IMX415 CMOS 1/2.8″

  • 8.46 Megapixels

  • High Dynamic Range and Noise Reduction

  • 1.5× better sensitivity than IMX274 (1/2.5″)

• USB Video Class (UVC):

  • UVC 1.0

• Supported Video Formats:

  • MJPEG / H.264 / H.265 / YUV / NV12 @30fps

• Supported Video Resolutions:

  • 3840×2160

  • 2560×1440

  • 1920×1080

  • 1280×720

  • 1024×576

  • 960×540

  • 960×720

  • 800×600

  • 800×448

  • 640×480

  • 640×360

  • 480×270

  • 352×288

  • 320×240

  • 320×180

• Maximum Video Resolution & FPS:

  • USB 3.0: 3840×2160 @ 30fps

  • USB 2.0: 1280×720 @ 30fps

• Viewing Angle:

  • 120°

• Focus Range:

  • 50 cm to infinity

• Aperture (F No.):

  • F2.5

• Zoom:

  • 5× Digital Zoom

• Tilt Angle:

  • +14°

Camera Features

• Auto-Framing:

• Auto White Balance:

• Auto Exposure:

• Auto Backlight Compensation:

Microphone

• Built-in Microphones:

  • Dual Electret Microphones

• Effective Pick-up Distance:

  • 0 to 4 meters

• Maximum Pick-up Distance:

  • 8 meters

• Signal/Noise Ratio (SNR):

  • 65 dB (Amplitude @ 1kHz, 1 Pa, A-weighted)

• Sensitivity:

  • -30 ± 2 dB (1kHz, 1 Pa input)

• SPL (Sound Pressure Level):

  • 100 dB FS

• Audio Features:

  • Double Talk Support:

  • Active Noise Reduction & Echo Cancellation: ✓

  • Automatic Gain Control (AGC): ✓

Others

• Privacy Shutter: ✓

• ESD Standard:

  • Contact Discharge: up to 4kV

  • Air Discharge: up to 8kV

• USB3.0 Eye Diagram Test: Passed

Connectivity

• USB Interface:

  • USB-C to USB-A

• Power Supply:

  • USB 3.0 (5V, 900mA)

Compatibility

• Windows 10 / 11

• macOS 10.8 or above

• Android

• Linux

Mounting

• Clip Mount

• Tripod Compatible

Cable

• USB-C to USB-A Cable (2 meters)

Package Contents

• Innex C570 Webcam

• USB-C to USB-A Cable (2 meters)

• Remote Control

• AAA Battery (for Remote Control)

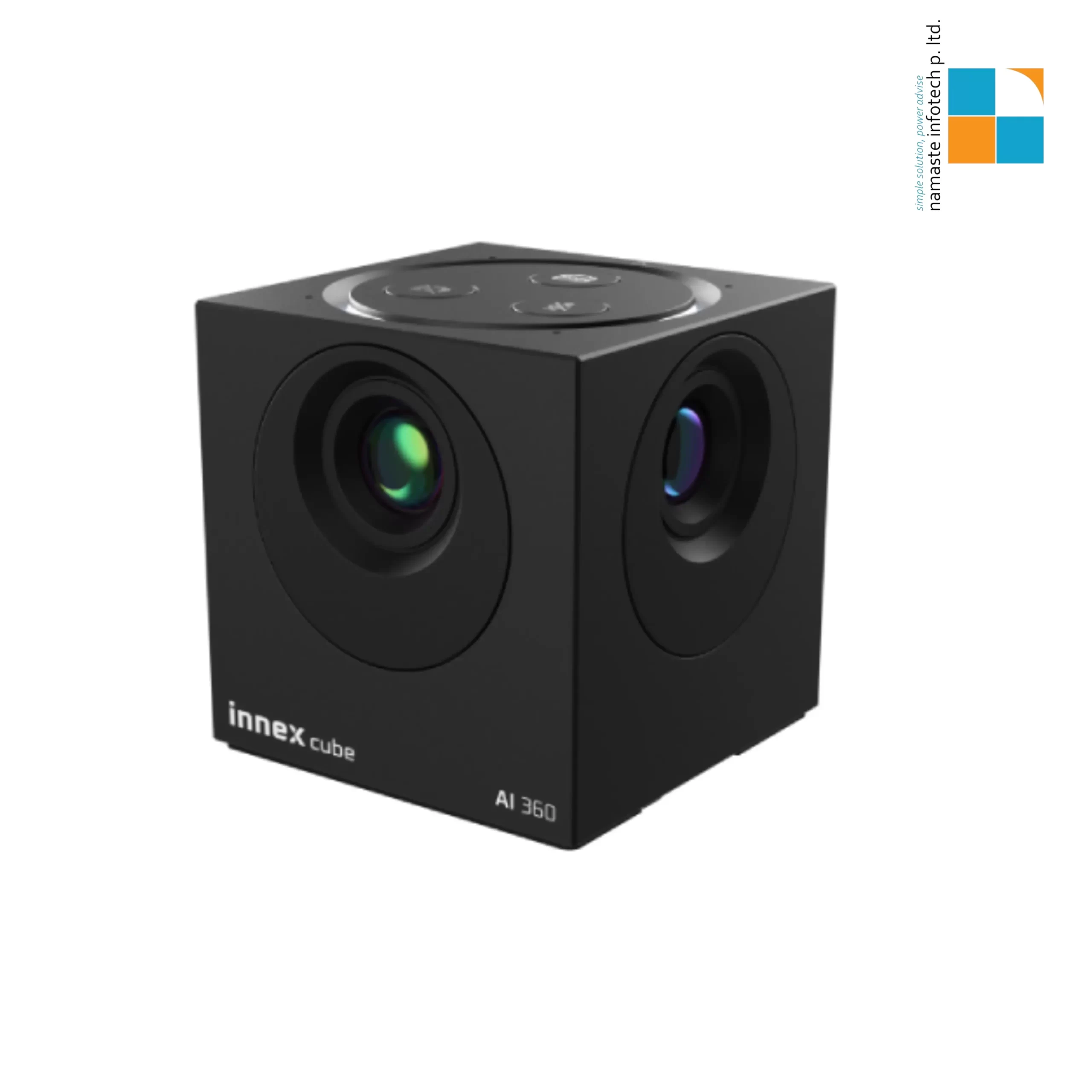

Specifications – Innex Cube

Camera

• Lens Resolution: 5 Megapixels

• Lens Quantity: 4

• Sensor: 1/2.7″ CMOS

• Stitching Technology: Dynamic Real-Time Stitching

• Max. Resolution & Frame Rate: 3840 x 964 @ 30fps (Panoramic View)

• Focus Distance: 2.3ft / 70cm

• Max Output Field of View: Horizontal 360°, Vertical 90°

• Flicker: 50Hz / 60Hz

• Auto Exposure: Yes

• Auto White Balance: Yes

Camera Embedded Modes

1. Gallery

2. Stage Mode

3. Conversation Mode

4. Auto-Framing

5. Manual Modes: 360°, 270°, 180°, 120°, 90°

Microphone

• Type: 2 Omnidirectional Microphones

• Automatic Gain Control (AGC): Yes

• Active Noise Suppression (ANS): Yes

• Sensitivity: -26dB FS

• Pick-up Distance: 10ft / 3m

Connectivity & Power

• Interface (Mic & Camera): USB Type-C x1

• Power Consumption: 5V / 900mA

Physical Dimensions

• Cube: 65 x 65 x 66 mm

• Pole (each): 122 mm

• Wooden Base: 26 x 138 mm

• Full Heights:

  • 1 Pole: 208 mm

  • 2 Poles: 324 mm

  • 3 Poles: 440 mm

• Travel Box: 235 x 108 x 165 mm

Weight

• Cube: 260 g

• Wooden Base: 345 g

• Poles (all 3): 70 g

Package Contents

• Innex Cube

• USB Cable (1.5m)

• Pole x3

• Wooden Base

• Remote Control

• Battery x2 (for Remote)

• Travel Box

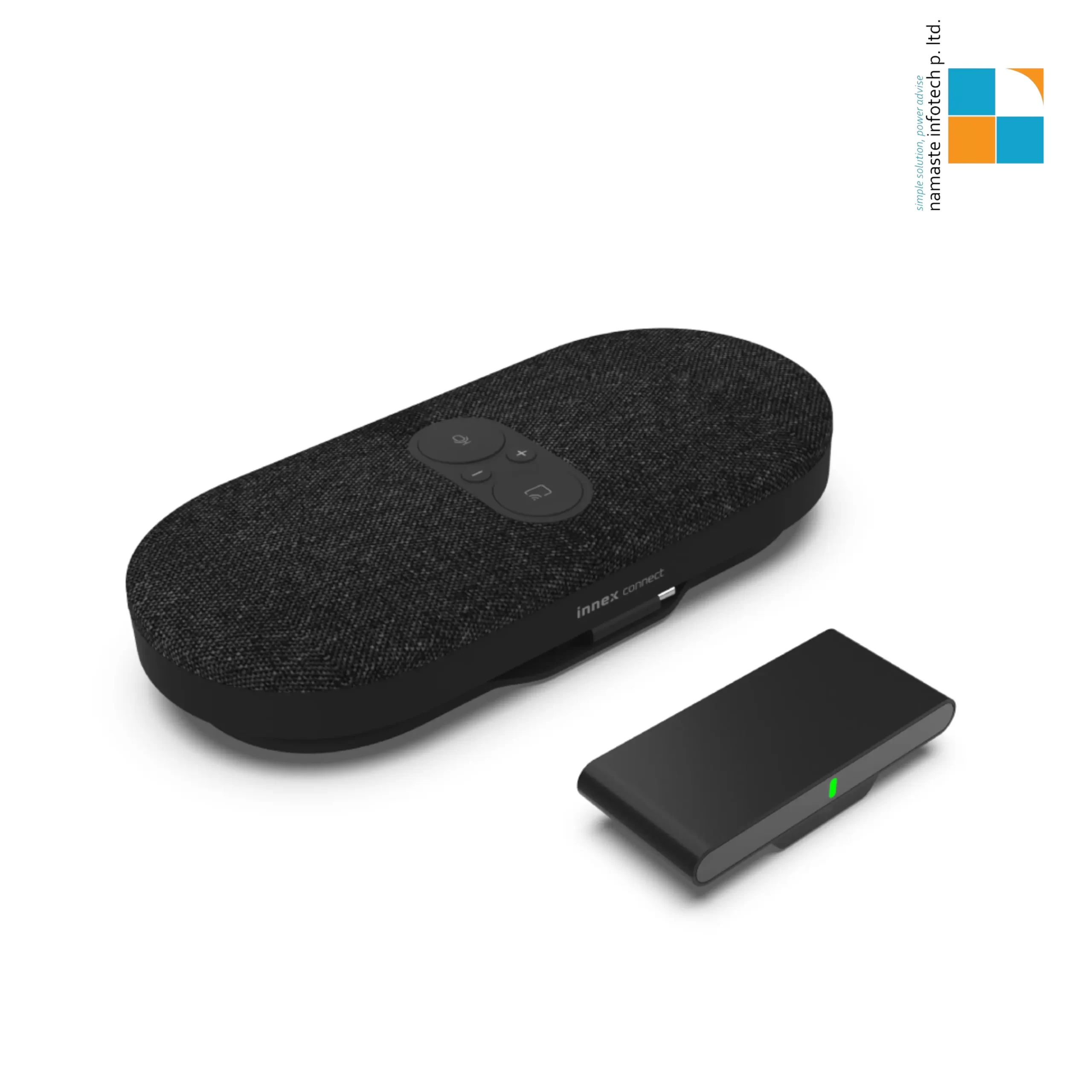

Specifications

I/O Interface

• ST100 (Speakerphone): Type C PD + DP ALT

• RX100 (Receiver): HDMI; Type C PD; USB A 3.0

Button

• ST100: Mic on/off, Casting, Volume +/-

• RX100: Language switch

Operating System

• Windows 10 / 11

• macOS 10.8 and later

Product Dimensions

• ST100: 180 x 81 x 32 mm / 7.09 x 3.19 x 1.26 in

• RX100: 102 x 45 x 20 mm / 4.02 x 1.77 x 0.79 in

Product Weights

• ST100: 385 g / 13.58 oz

• RX100: 70 g / 2.47 oz

Package Contents

• Innex Connect (ST100 and RX100)

• 1.5m power cable (Type C-C)

• 1.5m HDMI cable

• 0.3m USB switch cable (Type C-A)

• USB-C to HDMI & USB-A Adapter

• 0.5m USB 3.0 Extension Cable

Microphone

• Built-in Microphone: 8 MEMS Microphones for 360-degree pickup

• Pick-up Distance: 4m / 13ft

• Sensitivity: -37 ± 1dB FS @ 1kHz

• Frequency: 20Hz – 8kHz

• Sampling Rate: 48kHz

• Features:

  • Beamforming

  • Automatic Noise Suppression

  • Full Duplex Audio

  • Acoustic Echo Cancellation

  • Automatic Gain Control

Speaker

• Output: 4Ω 3W

• Sensitivity: 90dB SPL @ 1kHz ± 3dB @ 0.5m @ 3W

• Signal/Noise Ratio (SNR): 50dB

• Frequency Range: 200Hz – 20kHz

• Max Sound Pressure Level: 95dB SPL @ 0.5m @ 3W

Display & Streaming

• Max. Screen Output Resolution: 3840 x 2160 @ 30FPS

• Camera Streaming Resolution: 1920 x 1080 @ 30FPS

• Format Supported: H.264

• Wi-Fi Frequency: 5GHz

• Distance:

  • Screen Casting Only: 8 meters

  • Camera Streaming for BYOM: 5 meters

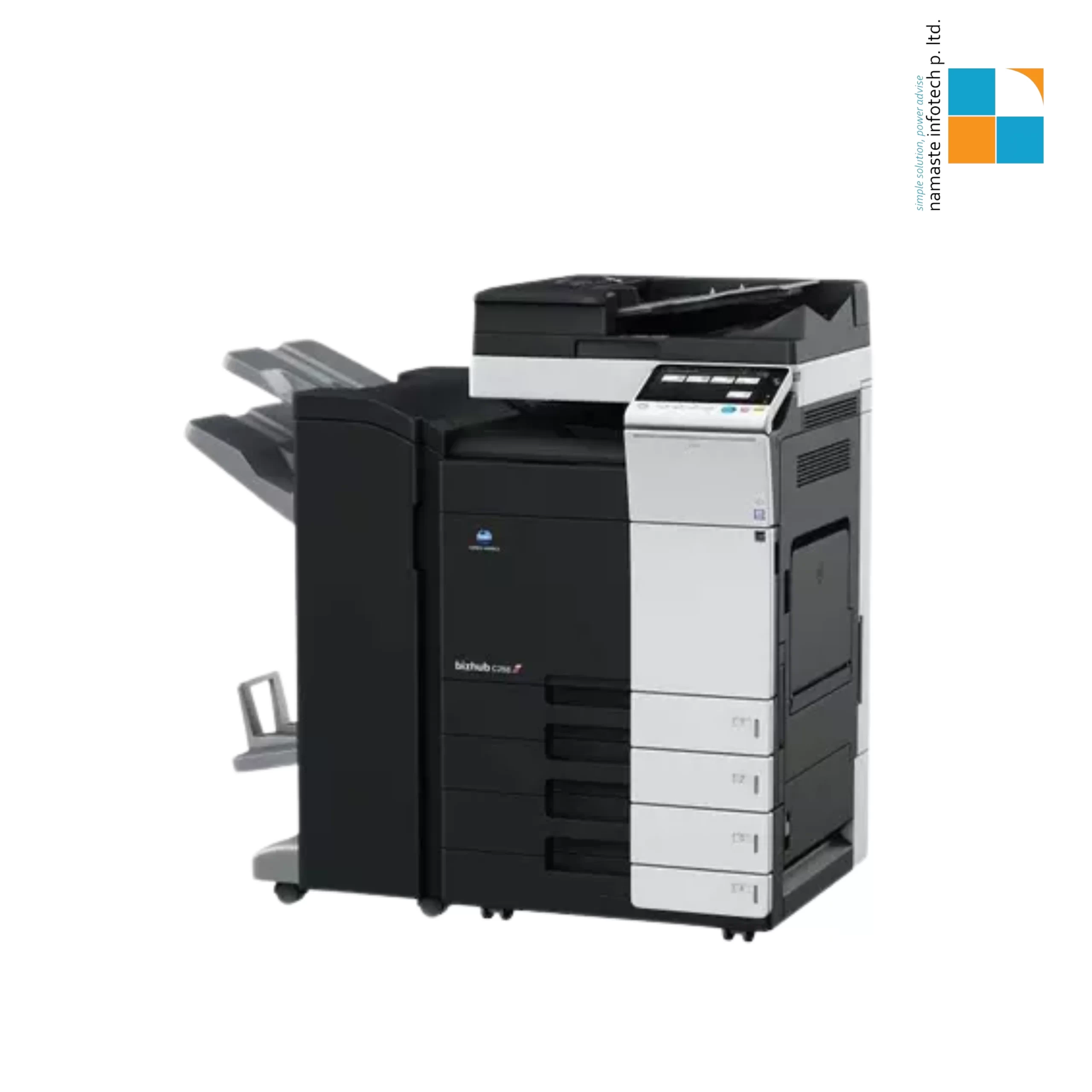

Brand: Konica Minolta
Model: BH-C258
Country of Origin: Japan

Key Features

• Memory:

  • System memory: 2,048 MB (standard)

  • System hard disk: 250 GB (standard)

• Power Consumption:

  • 220-240 V / 50/60 Hz

  • Less than 1.5 kW (system)

• Service Manual URL: Not Available

• Operating System Compatibility:

  • Windows: Vista (32/64), 7 (32/64), 8 (32/64), 10 (32/64), Server 2008 (32/64), Server 2008 R2, Server 2012, Server 2012 R2

  • Macintosh: OS X 10.x

  • Linux: Citrix

Printing Specifications

• Print Resolution:

  • Copy: 600 x 600 dpi

  • Print: 1,800 x 600 dpi, 1,200 x 1,200 dpi

• Print Speed: Up to 25 ppm

• Paper Handling:

  • Paper Input:

    • Standard: 1,150 sheets

    • Max: 6,650 sheets

  • Media Sizes: A6-SRA3, custom sizes, banner paper (max. 1,200 x 297 mm)

  • Printable Paper Weight: 52-300 gsm

  • Max Paper Capacity: 6,650 sheets

Supplies

• Toner Lifetime:

  • Black: 28,000 pages

  • CMY: 26,000 pages

Printer Functions

• Functionality:

  • Color/B&W Speed: Up to 25 ppm

  • Dual Scanning Option: Up to 160 opm

Dimensions

• Dimensions (WxDxH): 615 x 685 x 771 mm (excluding ADF and lower paper tray unit)

• Weight: 85 Kg

–
