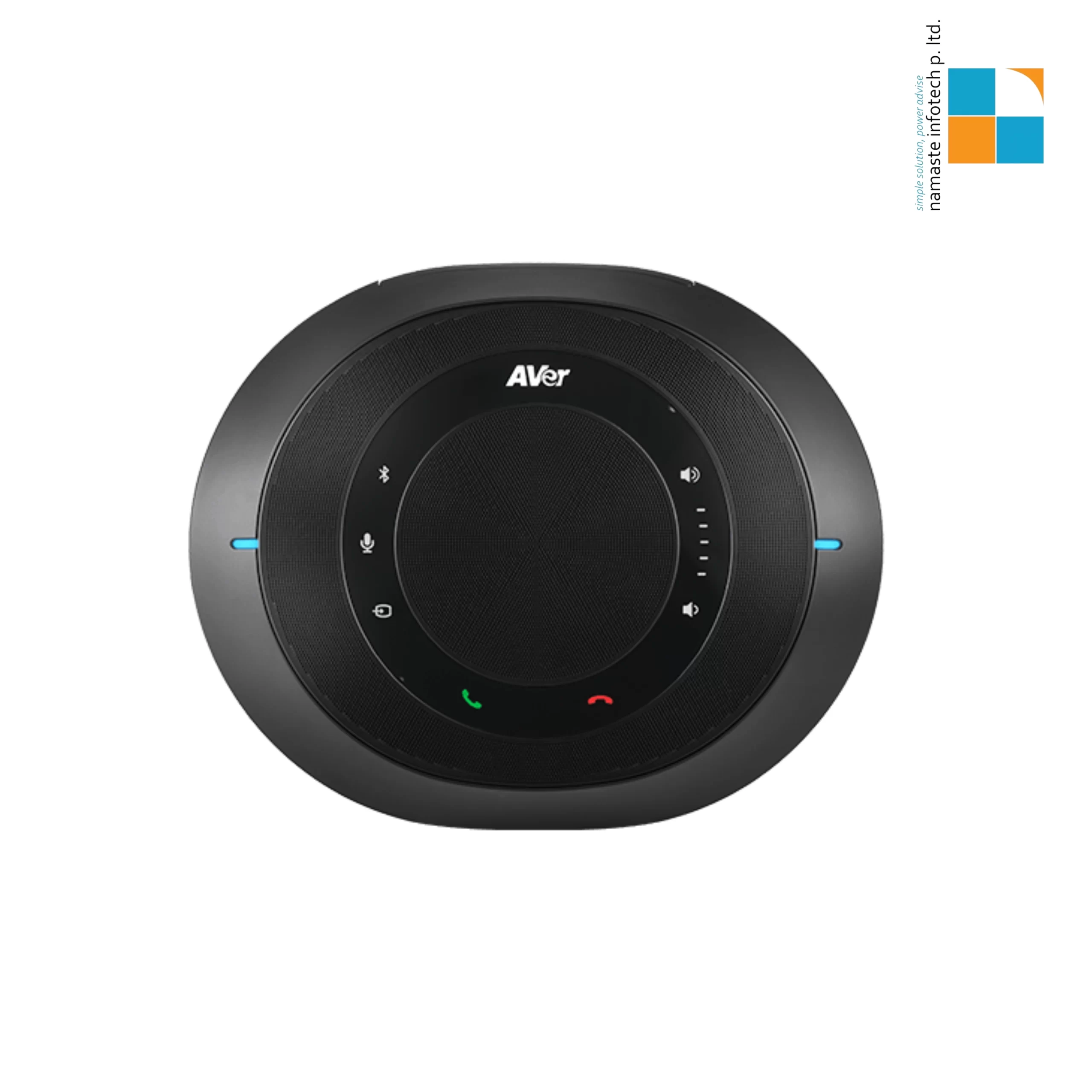

• Wireless Bluetooth / USB Wired for PC
• Full duplex microphone array speakerphone
• Two omnidirectional microphones support 360° pickup
• Full duplex echo cancellation
• Advanced noise suppression
• Powerful wideband voice processing
• Speaker volume: adjustable to 90 dB SPL at 0.5 m
• 3.5 mm line-in (aux) cable connects BYOD smartphones or PCs to use as speakerphones
• Touch controls for volume down/up, mute, phone input, call, and hang up
• Can bridge phone-in and USB into one call
• Ceiling Speakerphone

• 12V power adapter
• Micro USB connector
• LAN for IP remote access
• Expansion port (daisy-chain speakerphone or microphone)
• 3.5 mm phone-in jack
• 3.5 mm line out

• Micro USB 2.0
• USB Audio Class (UAC) 1.0

• UAC, plug and play
• WebUI: browser IP access via Chrome browser(Internet Explorer not supported)
• Room Management (PTZApp 2)

• Kensington slot

• Windows^® 7/10 or later
• Mac OS X v10.13 or later
• Google Chromebook version 76.0.3809.102 or later

• Processor: 3.2 GHz Intel^® Core i5-4460 or later
• 4 GB RAM
• USB port

• AC 100V to 240V, 50/60 Hz
• Consumption: 12V, 5A

• Room Management (PTZApp 2)
• Supports Windows^® 7 or later, macOS^® 11.6 or later
• Cloud Management
• Supports Windows^® 7 or later, macOS^® 10 or later

• Operation temperature: 0°C to 40°C
• Operation humidity: 20% to 80%
• Storage temperature: -20°C to 60°C
• Storage humidity: 20% to 80%

• Package dimensions: 259 x 259 x 171 mm
• Package weight: 1.93kg
• Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg

• Speakerphone unit
• Power adapter
• Micro USB 2.0 to Type-A cable (16 ft/5 m)
• 3.5 mm aux cable (3 ft/0.9 m)
• Warranty card
• Quick Start Guide

• Expansion speakerphone (10 m cable included), daisy-chain up to two speakerphones
• Two expansion microphones (two 5 m cables included), daisy-chain up to four microphones

• Camera/Speakerphone: 3+2 years
• Accessories: 1 year

• Full duplex acoustic system for optimal meeting experience
• One cable daisy chain up to 4 speakerphones for flexible installation
• Versatile connectivity for video conferencing integration
• Advanced acoustic features optimized for ceiling installation, powered by AVer algorithm for uncompromised audio quality across daisy-chain setup
• Acoustic echo cancellation (AEC)
• Advanced noise reduction (NR)
• Automatic gain control (AGC)
• Double-talk detection
• De-reverberation
• AI noise suppression
• Voice fencing

• 3 units directional + 18 units omnidirectional microphones
• Acoustic pickup angle: 360 degrees per unit
• Acoustic pickup range*: up to 3.5 m radius per unit
• Speakerphone volume: adjustable, up to 99 dB SPL at 0.5 m
• Daisy chain: up to 4 speakerphones with AVer-supplied RJ45 cable(s)

*Optimal performance varies depending on acoustic treatment of meeting room

• Acoustic DSP Hub for speakerphone, expandable up to 3 additional units
• One cable 48 V powered from Hub to 4 speakerphones via AVer-supplied Cat5 cable; no additional power required
• Integration for video conferencing with versatile connections for:*
• USB 3.0 type-C port for PC connection
• USB 3.0 type-A ports for AVer USB cameras hub; up to 2 cameras connected
• USB 2.0 type-A port for BT dongle connection
• Speakerphone port for AVer proprietary daisy-chained technology
• LAN port for remote control and AVer Virtual Audio technology
• 4K HDMI output (for USB to display output from connected PC)
• 3.5 mm line-out jack for external speaker or hearing aid system
• 3.5 mm phone-in jack for phone calls or external microphone input

*Settings configured in Room Management (PTZApp 2) or via web browser

• USB with USB Audio Class (UAC) 1.0
• RJ45 with AVer proprietary Virtual Audio (IP streaming)
• Phone in (1Vrms input)

• USB Plug and Play: Video conference software with mute/unmute, volume up/down
• Room Management (PTZApp 2) for advanced settings and AVer Virtual Audio streaming
• Web browser for advanced remote settings

• Safety tether attachment points on speakerphone
• Kensington slot on Hub

• Windows^® 7/10 or later
• Mac OS X v10.13 or later
• Google Chromebook version 76.0.3809.102 or later

• AC 100 V to 240 V, 50/60 Hz
• Consumption: 48 V, 3.75 A

• Room Management (PTZApp 2)
• Supports Windows^® 7 or later, macOS^® 11.6 or later
• Enterprise Management (PTZ Management)
• Supports Windows^® 10 or later
• Cloud Management
• Supports Windows^® 7 or later, macOS^® 10 or later

• Operating temperature: 0°C to 40°C
• Operating humidity: 20% to 80%
• Storage temperature: -20°C to 60°C
• Storage humidity: 20% to 80%

• Package dimensions: 39.2 x 39.2 x 24 cm
• Package weight: 7.83 kg
• Hub: 21 x 12.5 x 4 cm/1.06 kg
• Speakerphone: 37 x 37 x 16.5 cm/3.31 kg

• FONE700 Ceiling Speakerphone
• FONE700 Hub
• Power adapter (48 V/3.75 A)
• Power cable
• RJ45 cable (10 m)
• USB-C 2.0 cable (5 m)
• Hub wall mount bracket with screws
• Mount drill template
• Quick Start Guide

• Ceiling Speakerphone with 10 m cable supplied (for daisy chain)
• RJ45 cable (10/20 m)
• Ceiling mount kit
• BT dongle
• IR Receiver cable

• Speakerphone/ hub: 3 years
• Accessories: 1 year

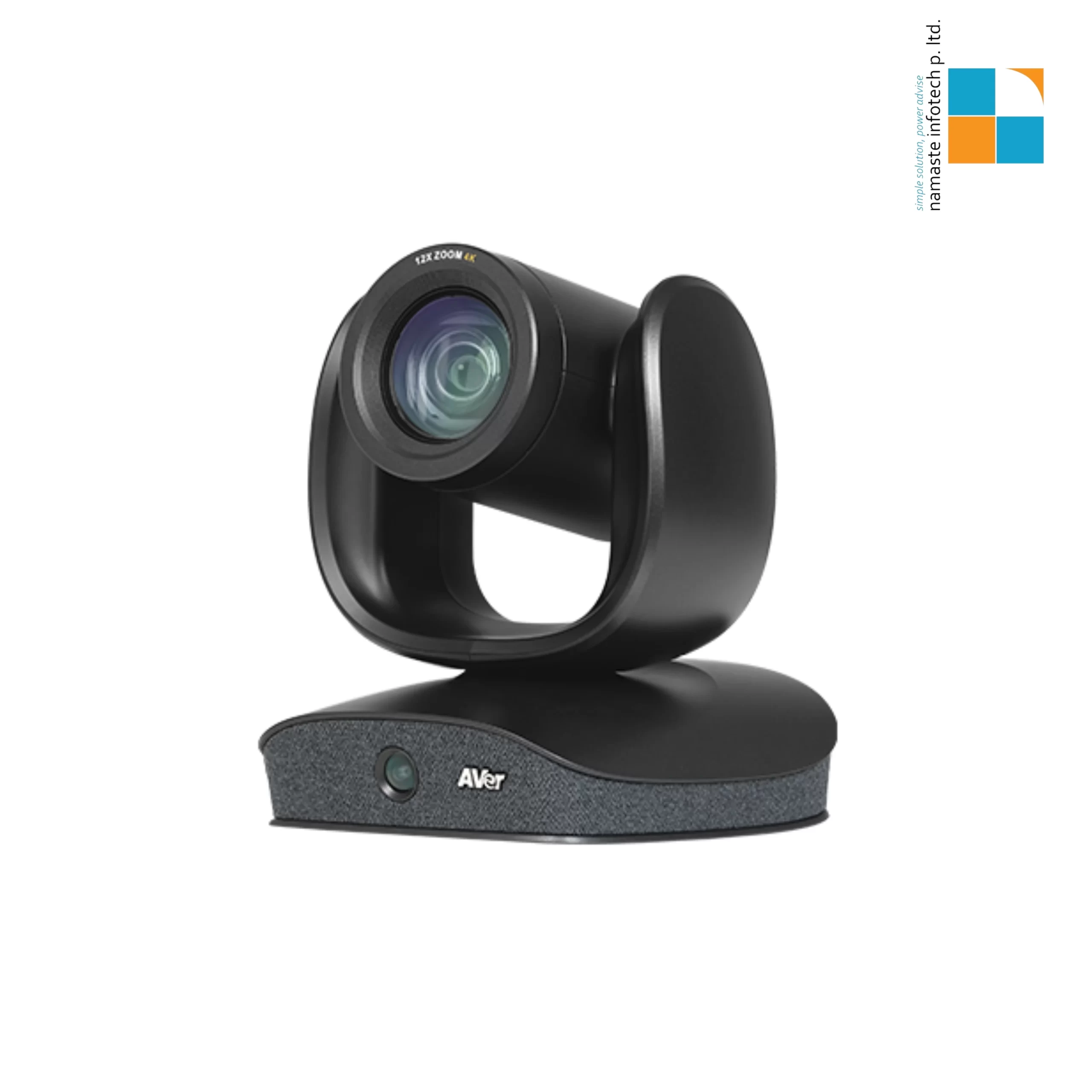

• Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
• Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
• SmartFrame for automatic FOV adjustment to fit all participants
• Smart Gallery* function offers great visibility for individual participant in the meeting room
• Innovative Preset Framing: Follow presenter based on preset areas
• True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Zoom: 24X* total zoom (12X optical zoom)
• Field of view(D/H/V):84.5°/76°/48°
• Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• Mirror, flip, AE, white balance: auto/manual override via Room Management (PTZApp 2)
• Minimum focus distance: 1.5 m
• Standard tripod screw holes and Kensington slot
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

Please use Room Management (PTZApp 2) to set up Smart Gallery and 24X zoom.

• Pan: ±170°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (via remote control)
• Fast and quiet pan/tilt movement

• YUV, YUY2, MJPEG, NV12
• Network video compression format: H.264, H.265
• Network protocol: RTSP, RTMP

• 12V/2A power adaptor
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
• USB 3.1 type-B connector
• IP (RJ45)

• 3.1 Gen1 Type B, backward compatible with USB 2.0
• UVC (USB video class) 1.1, UVC1.5*

*UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC/UAC plug and play
• WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
• Room Management (PTZApp 2)

• CAM520 Pro2 unit
• Remote control
• 5m, USB2.0 type-B to type-A cable
• Power adapter (10 ft/3 m)
• QR code card
• Wall-mount bracket
• ¼’ tripod screw
• Mini DIN9 to mini DIN8 RS232 adapter

• Mini DIN8 to D-SUB9 RS232 adapter
• Foldable TV mount
• Ceiling mount
• USB3.1 fiber extender 10m/20m/30m
• USB3.1, 3m type-B to type-A cable

• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

• Windows^® 7/10/11
• Mac OS X 14.4 or higher
• Chromebox 3 version 94.0.4606.114 or later

• 3.2 GHz Intel^® Core i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port , backward compatible with USB2.0 port

• Chrome: version 76.x or above
• Firefox: version 69 or above
• IE: Not support

• AC 100V ~ 240V, 50/60 Hz
• Consumption: 12V, 2A
• PoE+: 802.3at

• Room Management (PTZApp 2)
• Supports Windows^® 7 or later, macOS^® 11.6 or later
• Enterprise Management (PTZ Management)
• Supports Windows^® 10 or later
• EZManager 2
• Supports Windows^® 7 or later
• EZLive
• Supports Windows^® 7 or later

• Operation temperature: 0°C ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 20% ~ 80%

• Package dimensions: 256 x 256 x 274 mm
• Package weight: 3.335 kg/7.35 lbs
• Camera: 182 x 142.7 x 153 mm/1.47 kg
• Remote control: 200 x 50 x 21 mm/0.09 kg

• Camera: 3 years
• Accessories: 1 year

• Sony super-low-light 8M pixel sensor, clear and natural imaging in low-light conditions, providing ultra FHD image quality.
• Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps
• SmartFrame for automatic FOV adjustment to fit all participants
• Smart Composition function offers great visibility for individual participant in the meeting room
• Innovative Preset Framing: Follow presenter based on preset areas
• WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Zoom: 36X* total zoom (12X optical zoom)
• Field of view(D/H/V): 80.5°/72.8°/44.1°
• Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)
• Lens F#: 1.6 (wide) ~ 2.8 (tele)
• Mirror, flip, AE, white balance: auto/manual override via Room Management (PTZApp 2)
• Minimum focus distance: 1m
• Standard tripod screw holes and Kensington slot
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

*Please use Room Management (PTZApp 2) to set up 36X zoom.

• Pan: ±170°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (via remote control)
• Fast and quiet pan & tilt movement

• YUV, YUY2, MJPEG
• Network video compression format: H.264
• Network protocol: RTSP, RTMP

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
• Room Management (PTZApp 2)

• 12V/2A power adaptor
• Type Non-B Mini DIN 9 for RS232 in & out connection (VISCA, control panel and camera daisy chain)
• USB 3.1 type-B
• IP (RJ45)
• HDMI 1.4

• 3.1 Gen 1 Type-B, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

* UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.

• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

• Windows^® 7/10/11
• Mac OS X 10.14 or later
• Google Chromebox 3 version 94.0.4606.114 or later

• 3.2 GHz Intel^® Core i5-4460 processor
• 8 GB RAM or more
• USB 3.1 port , backward compatible with USB2.0 port

• Operation temperature: 0 ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20 ~ 60°C
• Storage humidity: 20% ~ 80%

• Package dimensions: 256 x 256 x 274 mm
• Package weight: 3.335 kg/7.35 lbs
• Camera: 182 x 142.7 x 153 mm/1.47 kg
• Remote control: 200 x 50 x 21 mm/0.09 kg

• Mini DIN8 to D-SUB9 RS232 adapter
• USB3.1 fiber extender 10m/20m/30m
• USB3.1, 3m type-B to type-A cable
• HDMI Cable
• Ceiling mount
• 1-Port POE+ Injector
• Foldable TV mount

• Chrome: version 76.x or above
• Firefox: version 69 or above
• IE: Not support

• AC 100V ~ 240V, 50/60 Hz
• Consumption: 12V, 2A
• PoE+: 802.3at

• Room Management (PTZApp 2)
• Supports Windows^® 7 or later, macOS^® 11.6 or later
• Enterprise Management (PTZ Management)
• Supports Windows^® 10 or later
• Cloud Management
• Supports Windows^® 7 or later, macOS^® 10 or later
• EZManager 2
• Supports Windows^® 7 or later
• EZLive
• Supports Windows^® 7 or later, macOS^® 10.13 or later

• CAM520 Pro3 unit
• Remote control
• 5m, USB2.0 type-B to type-A cable
• Power adapter (10 ft/3 m)
• QR code card
• Wall-mount bracket
• ¼” tripod screw
• Mini DIN9 to mini DIN8 RS232 adapter

• Camera: 3 years*
• Accessories: 1 year

• PTZ optical zoom lens
• Image sensor: Sony 4K EXMOR, crystal clear in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• 24X Zoom*: 12X optical; 2X digital zoom
• Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
• Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• AE, white balance: auto, manual override via Room Management (PTZApp 2)
• Minimum focus distance: 1.5m
• Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
• Preset number: 10 via IR remote, 128 via RS232
• Secondary fixed lens (AI lens)
• Image sensor: Sony 4K EXMOR
• Frame rates and resolution set according to PTZ lens settings
• Wide field of view: DFOV 95°; HFOV 82°; VFOV 52°

*Please use Room Management (PTZApp 2) to set up 24X zoom
*Please don’t put the CAM550 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor.

• Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
• Preset framing tracks both preset area and speaker*
• Simultaneous 3-way output: USB, HDMI and IP connections
• Gesture control provides intuitive camera controls
• HDMI Picture in Picture (PIP) function
• Smart Gallery** function offers great visibility for individual participant in the meeting room
• Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
• Audio tracking support: Integration with AVer FONE700 & 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link ** function.

* Make sure preset areas are within AI lens’ view.
** Please download Room Management (PTZApp 2) to set up Smart Gallery, USB virtual streaming and Preset Link functionality.

• USB type-B 3.1 connector, backward compatible with USB 2.0
• 12V/2A DC jack power adapter
• Type Non-B Mini DIN 9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
• IP (RJ45)
• HDMI

• HDMI 1.3: 1080p 30fps/ 60fps
• PoE+: 802.3at

• YUV, YUY2, MJPEG
• Network video compression format: H.264, H.265
• Network protocol: RTSP, RTMP

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

*UVC1.5 utilizes a different platform environment and requires an extra FW upgrade. Please contact technical support for more details.

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome. (Not support IE)
• OSD setting: HDMI out to TV monitor
• Room Management (PTZApp 2)

• AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
• PoE+: 802.3 at

• Room Management (PTZApp 2)
• Supports Windows^® 7 or later, macOS^® 11.6 or later
• Enterprise Management (PTZ Management)
• Supports Windows^® 10 or later
• Cloud Management
• Supports Windows^® 7 or later, macOS^® 10 or later
• EZManager 2
• Supports Windows^® 7 or later
• EZLive
• Supports Windows^® 7 or later

• Operation temperature: 0 to 40°C
• Operation humidity: 20% to 80%
• Storage temperature: -20 to 60°C
• Storage humidity: 20% to 80%

• Package dimensions: 253(L)*253(W)*271(H) mm
• Package weight: 4.8KG
• Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
• Remote control: 200 x 50 x 21 mm/90g

• CAM550 unit
• Power adapter (10 ft/3 m)
• USB 3.1 type-B to type-A cable (3m)
• Remote control
• Mini DIN9 to mini DIN8 RS232 adapter cable
• HDMI cable (3 m)
• Wall mount bracket and screws
• Tripod screw
• Drill paper

• Mini DIN8 to D-Sub9 cable
• Ceiling mount*
• Foldable TV mount
• USB2.0 type-B to type-A cable (5 m)
• USB 3.1 Extension Cable (10 m/20 m/30 m)
• 1-Port POE+ Injector

*For ceiling mounting, please purchase the AVer ceiling mount.

• Kensington lock
• 1/4′ tripod mounting screw
• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

• Windows 7/10/11
• Mac OS X 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later

• 3.2 GHz Intel^® Core i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

• Camera: 3 years*
• Accessories: 1 year

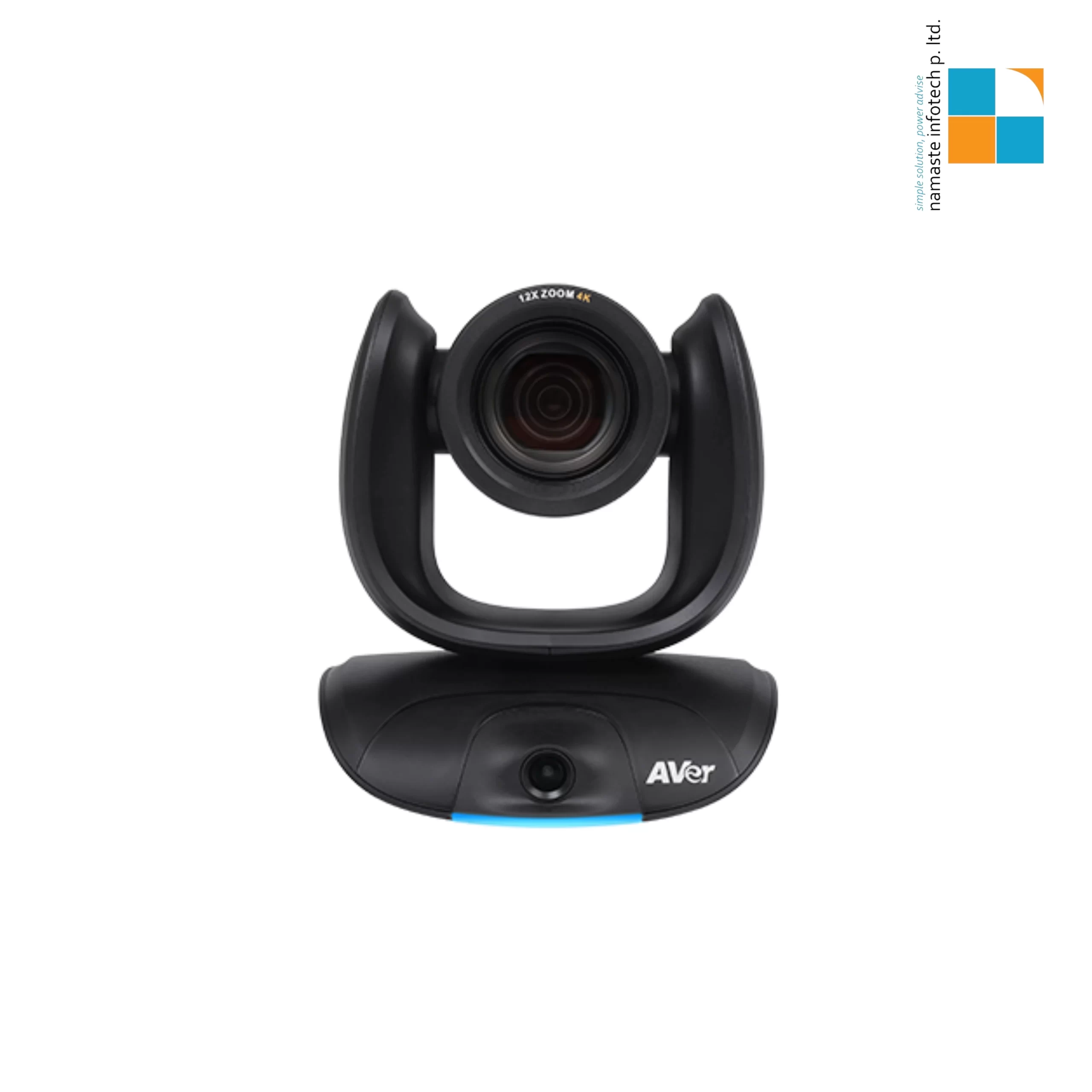

• PTZ optical zoom lens
• Image sensor: Sony 4K EXMOR, crystal clear in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• 36X Zoom*: 12X optical; 3X digital zoom
• Wide field of view: DFOV 90°/ HFOV 78°/ VFOV 50°
• Lens focal length: 3.4mm (wide) ~ 40.3mm (tele)
• Lens F#: 1.8 (wide) ~ 3.6 (tele)
• Wide Dynamic Range (WDR): Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Minimum focus distance: 1.5m
• Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
• Preset number: 10 via IR remote, 128 via RS-232
• Image flip and image mirror
• Secondary fixed lens (AI lens)
• Image sensor: Sony 4K EXMOR
• Frame rates and resolution set according to PTZ lens settings
• Wide field of view: DFOV 95°; HFOV 82°; VFOV 52°

*Please use Room Management (PTZApp 2) to set up 36X zoom
*Please don’t put the CAM570 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor.

• SmartSpeaker: automatically track human voice and focus on the speaker
• Dynamic detection: secondary AI lens detects all participants
• new participants trigger PTZ lens to dynamically frame all participants.
• Presentation tracking: voice-triggered tracking speaker with both preset area and people tracking*
• Simultaneous 3-way output: USB, HDMI and IP connections
• Gesture control provides intuitive camera controls
• Smart gallery** function offers great visibility for individual participant in the meeting room
• Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
• 3rd party audio tracking support***: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yahama) via AVer Preset Link** function.

* Make sure preset areas are within AI lens’ view.
** Please download Room Management (PTZApp 2) to set up Smart gallery, USB virtual streaming and Preset Link functionality
*** While CAM570 already offers audio tracking function, we still integrate with 3rd party ceiling microphone for more audio tracking settings via the Room Management (PTZApp 2) on PC.

• USB type-B 3.1 connector, backward compatible with USB 2.0
• 12V/2A DC jack power adapter
• Type Non-B Mini DIN 9 for RS-232 in & out connection (VISCA control panel and camera daisy-chain)
• IP (RJ45)
• HDMI
• Audio in* (1Vrms input)

*To avoid tracking the speakerphone, please insert speakerphone’s Line-out to CAM570’s Line-in port.

• Audio pick-up range: 10m, ±60°
• 3 pairs of sensor, each composed of 4 sensors

* The built-in sensor is for the audio-tracking function, it cannot be used as an audio source for video-conferencing software.

• CAM570 unit
• Power adapter (10 ft/3 m)
• USB 3.1 type-B to type-A cable (3m)
• Remote control
• Mini DIN9 to mini DIN8 RS-232 adapter cable
• HDMI cable (3 m)
• Wall mount bracket and screws
• QR code card
• Tripod screw
• Drill paper

• HDMI 1.3: 1080p 30fps/ 60fps
• PoE+: 802.3at

• YUV, YUY2, MJPEG
• Network video compression format: H.264
• Network protocol: RTSP, RTMP

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

* UVC1.5 utilizes a different platform environment and requires an extra FW upgrade. Please contact technical support for more details.

• IR remote control
• VISCA/pelco P/pelco D via RS-232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome. (Not support IE)
• OSD setting: HDMI out to TV monitor
• Room Management (PTZApp 2)

• AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
• PoE+: 802.3 at

• Room Management (PTZApp 2)
• Supports Windows^® 7 or later, macOS^® 11.6 or later
• Enterprise Management (PTZ Management)
• Supports Windows^® 10 or later
• Cloud Management
• Supports Windows^® 7 or later, macOS^® 10 or later
• EZManager 2
• Supports Windows^® 7 or later
• EZLive
• Supports Windows^® 7 or later

• Operation temperature: 0 to 40°C
• Operation humidity: 20% to 80%
• Storage temperature: -20 to 60°C
• Storage humidity: 20% to 80%

• Package dimensions: 253(L)*253(W)*271(H) mm
• Package weight: 4.8KG
• Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
• Remote control: 200 x 50 x 21mm/90g

• FONE 540
• Mini DIN 8 to D-Sub 9 RS-232 Cable
• Ceiling mount
• Foldable TV mount
• USB2.0 type-B to type-A cable (5 m)
• USB 3.1 Extension Cable (10 m/20 m/30 m)
• 1-Port POE+ Injector

• Kensington lock
• 1/4′ tripod mounting screw
• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

• Windows^® 7/10/11
• Mac OS X 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later

• 3.2 GHz Intel^® Core i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

• Camera: 3 years*
• Accessories: 1 year

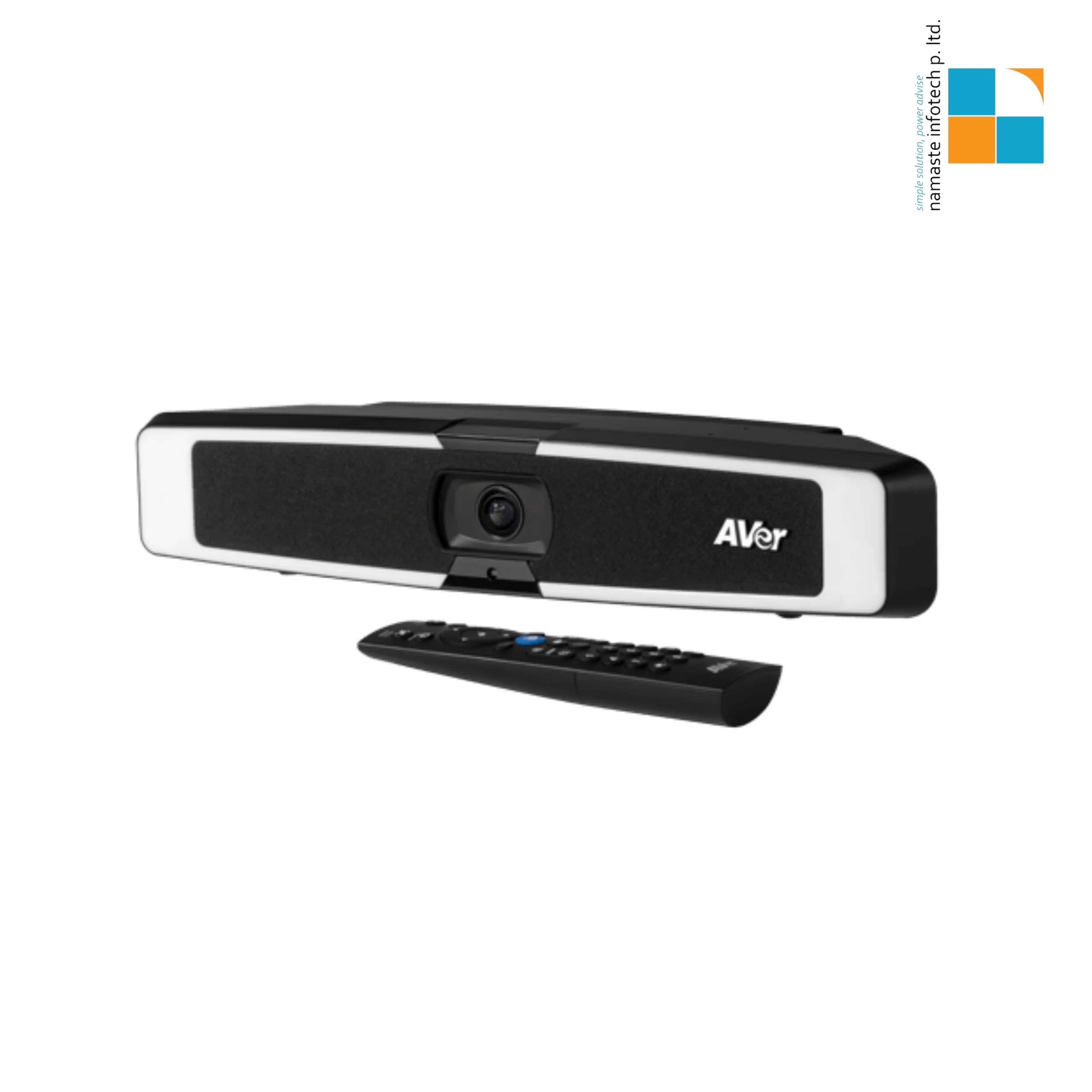

• 4K optics lens, 120° FOV, up to 5X zoom*
• Sony 4K sensor: ultra-crystal-clear image in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• Adjustable audio fence: freedom to define your meeting area
• Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment**
• Supports autofocus: SmartFrame function automatically adjusts the FOV to track and fit all participants on screen
• SmartSpeaker: Voice triggered tracking people or specific preset areas.
• True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
• Mirror, flip, AE, white balance: auto/manual override via Room Management (PTZApp 2)
• Minimum focus distance: 60 cm
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
• 10 camera presets (through remote control and IP web page)

*Please use Room Management (PTZApp 2) to set up 5X zoom.
**The best lighting distance is for people sitting within 1meter far from the camera

• Beamforming microphone array: 5 microphones, 5-meter pickup range
• Echo cancellation and background noise suppression
• Supports an expansion microphone
• 6W speaker with a professional bass port tuned for communication
• 180Hz–20kHz speaker frequency response
• Output volume: 94dB SPL +/-2dB at 0.5 meters

• 12V/2A power adapter
• Mini-B for expansion microphone connection
• USB Type-B 3.1 connector, backward compatible with USB 2.0
• RJ45 port for Ethernet
• USB 2.0 Type-A for wireless connection*

*Optional wireless dongle is required to connect with mobile phone

• YUV, YUY2, MJPEG
• Network video compression format: H.264
• Network protocols: RTSP, RTMP*

*When USB streaming is in use, RTSP and RTMP are not available.

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UAC 1.0 (USB audio)

• IR remote control
• WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
• UVC/UVA plug-and-play
• Room Management (PTZApp 2)

• Camera wall-mount bracket
• Screen mount kit (optional)
• TV VESA mount (optional)

• Wall mount and mounting screws
• Screen mount kit
• BT Dongle
• 10m/20m expansion microphone
• 10m/20m/30m USB 3.1 extension cable
• USB 3.1 GEN1 Type-B to Type-A cable, 3 m

• Camera: 3 years
• Accessories: 1 year

• Windows^® 7/10/11
• MacOS X 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later

• 3.2 GHz Intel^® Core i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

• AC 100V–240V, 50/60 Hz
• Consumption: 12V/2A

• Room Management (PTZApp 2)
• Supports Windows^® 7 or later, macOS^® 11.6 or later
• Enterprise Management (PTZ Management)
• Supports Windows^® 10 or later
• EZManager 2
• Supports Windows^® 7 or later
• EZLive
• Supports Windows^® 7 or later

• Operation temperature: 0 ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20 ~ 60°C
• Storage humidity: 20% ~ 80%

• Package dimensions: 406(L)x146(W)x189(H) mm
• Package weight: 2.358 kg
• Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
• Remote control: 149.72 x 42.3 x 19.29 mm/50g

• VB130 unit
• Power cable 10 ft (3 m)
• USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
• QR code card
• Wall mount
• Remote control
• Tripod screw

• 4K 3X optical zoom lens with 15X zoom
• Field of view (D/H/V): 92°/84°/53°
• Sony 4K True WDR sensor: ultra-crystal-clear image in any lighting
• Frame rate: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360 at 60, 30, 15fps
• Adjustable audio fence: Block outside noise; freely define your meeting area
• True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• SmartFrame & SmartSpeaker: automatic tracking and field of view adjustment to fit all participants and focus on the speaker
• Presentation tracking: Tracking speaker with both preset area and participant tracking
• Smart gallery* function for great visibility
• Gesture control for intuitive camera control
• Mirror, Flip, AE, white balance: Auto, manual override via Room Management (PTZApp 2)
• Minimum focus distance: 80 cm
• People counting API: Enterprises and third-party software providers can obtain people-counting data and meeting interval for better understanding of meeting space usage

*Please download Room Management (PTZApp 2) to set up Smart gallery function

• Pan: total horizontal viewing area 180°
• Tilt: total vertical viewing area 105°
• 10 camera presets (via remote control and IP web page)

• YUV, YUY2, M-JPEG
• Network video compression formats: H.264, H.265

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB Video); UAC 1.0 (USB Audio)

• IR remote control
• WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
• VISCA/pelco P/pelco D via RS-232; Visca over IP
• UVC/UVA plug-and-play
• Room Management (PTZApp 2)

• Camera wall-mount bracket included
• TV VESA mount kit (optional)
• Foldable TV mount (optional)
• Kensington security lock

• Software
• Windows^® 7/10/11
• Mac OS X 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later
• Hardware
• 3.2 GHz Intel^® Core i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

• AC 100V–240V, 50/60 Hz
• Consumption: 12V/5A

• Room Management (PTZApp 2)
• Supports Windows^® 7 or later, macOS^® 11.6 or later
• Enterprise Management (PTZ Management)
• Supports Windows^® 10 or later
• EZManager 2
• Supports Windows^® 7 or later
• EZLive
• Supports Windows^® 7 or later, macOS^® 10.13 or later

• 10-element beamforming microphone array
• 8 meters (27 ft) pickup range
• Stereo speaker with output power 12W (6W x 2 pcs)
• Volume up to 96 dB SPL at 1/2 m
• Echo cancellation
• Noise suppression

• USB Display Adapter: built-in USB 3.1 (Gen 1) to HDMI adapter

• 12V/5A power adaptor
• Mini DIN 6 for RS-232 connection
• USB 3.1 Type-B port, backward compatible with USB 2.0
• HDMI out connection (USB Display Adapter)
• Phone in (1Vrms input)/Speaker out for HA system*
• Two RJ45 ports (one for Ethernet, one for audio expansion speakerphone/ microphone)
• USB 2.0 Type-A*2 : One for Wireless connection**; one for IFP USB Touch back

* Need to set up via Room Management (PTZApp 2) and purchase an audio-out converter from AVer
** Wireless dongle (optional item) to connect with mobile phone

• Operation temperature: 0 ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20 ~ 60°C
• Storage humidity: 20% ~ 80%

• VB342 Pro unit
• Power cable 10 ft (3 m)
• USB 2.0 Type-B to Type-A Cable 5m
• USB 3.1 Type-A to Type-C adapter
• QR code card
• Wall-mount bracket and screws
• Remote control
• Velcro (x2)(pre-install on the device)
• Wall-mount drill paper

• Mini DIN 6 to RS-232 adapter
• TV VESA mount for mounting on top of TV and beneath TV
• Foldable TV mount
• 10 m/20 m expansion microphone
• 10 m/20 m expansion Speakerphone
• 10 m/20 m/30 m USB 3.1 extender cable
• 3 m USB 2.0 extender cable
• Wireless dongle (for connecting with mobile phone)
• Audio-out converter (TRS female to TRRS male)

• Package dimensions: 872 x 197 x 260 mm
• Package weight: 6.3 kg / 13.8 lbs
• Camera: 738 x 127 x 116 mm / 3.1 kg
• Remote control: 149.72 x 42.3 x 19.3mm / 50 g

• Camera: 3 years
• Accessories: 1 year
