The Grandstream GWN7801P Pro is a Layer 2+ managed network switch designed for high-performance business networks and SME deployments. It provides 8 Gigabit Ethernet ports with PoE+ and 2 × 2.5G SFP uplink ports for high-speed connectivity. With a 120W total PoE budget and up to 30W per PoE port, it can power IP phones, cameras, Wi-Fi access points, and other PoE devices. Advanced VLAN, QoS, routing, multicast, ACL, and network security features provide flexible and secure network management. The switch supports local Web GUI, embedded controller, GDMS Networking, GWN Manager, GWN App, and CLI for flexible centralized or local management.]]>

Product Specifications

1. General / Network

  • Product Model: Grandstream GWN7801P Pro
  • Product Type: Layer 2+ Managed Network Switch
  • Gigabit Ethernet Ports: 8
  • SFP/SFP+ Ports: 2 × 2.5G SFP
  • Console Port: 1 × Console port
  • Reset: 1 × Reset pinhole
  • Forwarding Mode: Store-and-forward
  • IPv4 & IPv6: Supported
  • Total Non-Blocking Throughput: 13 Gbps
  • Switching Capability: 26 Gbps
  • Forwarding Rate: 19.344 Mpps
  • Packet Buffer: 8.4 MB
  • Network Latency: <4 µs

2. PoE Specifications

  • PoE Ports: 8
  • PoE Standard: IEEE 802.3af/at
  • Maximum PoE Output per Port: 30W
  • Total PoE Budget: 120W
  • Smart Dynamic PoE/PoE+ Power Allocation: Supported
  • PoE Port Priority: Supported
  • Maximum Power Allowed per Port: Configurable
  • PoE Scheduling: User-defined PoE power schedules through WebUI
  • PoE Applications: IP phones, IP cameras, Wi-Fi access points and other PoE endpoints

3. Switching & VLAN

  • MAC Address Table: 16K MAC addresses
  • VLANs: Up to 4K VLANs
  • Port-Based VLAN: Supported
  • IEEE 802.1Q VLAN Tagging: Supported
  • MAC-Based VLAN: Supported
  • Protocol-Based VLAN: Supported
  • QinQ: Supported
  • VLAN Translation: Supported
  • VLAN Mapping: Supported
  • VLAN Stacking: Supported
  • Voice VLAN: Supported
  • Auto Voice VLAN: Supported
  • Tagged/Untaged OUI: Supported
  • Jumbo Frame: Maximum 12,288 bytes
  • GVRP: Supported/pending as specified by Grandstream
  • ERPS: Supported
  • Private VLAN: Supported where applicable

4. Layer 2 / Reliability

  • Spanning Tree: STP, RSTP, MSTP
  • PVST(+): Supported
  • RPVST(+): Supported
  • MSTP/PVST(+)/RPVST(+): Up to 16 instances for the GWN7801P Pro
  • Link Aggregation: Static and LACP
  • LAG Groups: Up to 8
  • LAG Members: Up to 8 per LAG group
  • MAC Filtering: Supported
  • MAC Migration Records: Supported

5. IP Services & Routing

  • DHCP Client: Supported
  • DHCP Server: Supported
  • DHCP Relay: Supported
  • DHCP Snooping: Supported
  • DHCPv6 Client: Supported
  • DHCPv6 Snooping: Supported
  • ND Snooping: Supported
  • DNS: Supported
  • ARP/NDP: 64 static/dynamic entries
  • VLAN Virtual Interfaces: 16
  • VLAN Interface MTU: 9216
  • Static IPv4 Routes: 32
  • Static IPv6 Routes: 32
  • Policy Routing: Supported where applicable

6. Multicast & AV

  • IGMP Snooping: Supported
  • IGMP Versions: IGMPv2 and IGMPv3
  • IGMP Snooping Groups: Up to 256
  • MLD Snooping: Supported
  • MLD Versions: MLDv1 and MLDv2
  • MLD Snooping Groups: Up to 256
  • Pro AV: Supported
  • IEEE 1588v2 Time Synchronization: Supported
  • PTPv2 / RFC 8173: Supported
  • Video Conferencing: Optimized through multicast and QoS features
  • HD Video Surveillance: Supported through IGMP/MLD Snooping

7. QoS

  • Port Priority: Supported
  • 802.1p Priority Mapping: Supported
  • DSCP Mapping: Supported
  • IP Precedence Mapping: Supported
  • Queue Scheduling: SP, WRR, WFQ, SP-WRR, SP-WFQ
  • Traffic Shaping: Supported
  • Rate Limiting: Supported
  • QoS Traffic Prioritization: Supported
  • Pro AV Traffic Optimization: Supported

8. Security

  • HTTPS: Supported
  • SSH: Supported
  • Telnet: Supported
  • 802.1X Authentication: Supported
  • MAC Authentication: Supported
  • RADIUS: Supported
  • TACACS/TACACS+: Supported
  • AAA Authentication: Supported
  • Storm Control: Supported
  • Port Isolation: Supported
  • Port Security: Supported
  • Sticky MAC: Supported
  • MAC Address Filtering: Supported
  • IP Source Guard: Supported
  • IPv6 Source Guard: Supported
  • DoS Attack Prevention: Supported
  • Dynamic ARP Inspection: Supported
  • DHCP/DHCPv6 Snooping: Supported
  • CPU Protection: Supported
  • BPDU Protection: Supported
  • Root Protection: Supported
  • Loopback Protection: Supported
  • Kensington Security Slot: Supported
  • Firmware Signature: Supported

9. ACL — Access Control List

  • ACL for Ethernet, IPv4 and IPv6: Supported
  • 128 ACLs: Supported for GWN7801P Pro
  • Up to 1.5K ACEs: Supported
  • MAC ACL: Supported
  • IPv4 ACL: Supported
  • IPv6 ACL: Supported
  • ACL Redirection: Supported
  • ACL Statistics: Supported
  • ACL Mirroring: Supported
  • ACL Priority Mapping: Supported
  • ACL Rate Limiting: Supported
  • ACL Port Binding: Supported
  • ACL VLAN Binding: Supported
  • Time-Based ACL Rules: Supported

10. Management

  • Local Web GUI: Supported
  • Embedded Controller: Built into Web GUI
  • GDMS Networking: Supported
  • GWN Manager: Supported
  • GWN App: Supported
  • GWN Series Routers: Supported for management
  • Command-Line Interface (CLI): Supported
  • SNMP: SNMPv1, SNMPv2c, SNMPv3
  • RMON: Supported
  • LLDP: Supported
  • LLDP-MED: Supported
  • Syslog: Supported
  • NTP: Supported
  • Backup & Restore: Supported
  • Firmware Upgrade: FTPS, TFTP, HTTP, HTTPS or local upload
  • Mass Provisioning: Supported through available management platforms

11. Monitoring & Diagnostics

  • CPU Usage Monitoring: Supported
  • Memory Usage Monitoring: Supported
  • Power Supply Monitoring: Supported
  • Temperature Monitoring: Supported
  • Fan Monitoring: Supported
  • Power Supply Failure Alarm: Supported
  • Fan Failure Alarm: Supported
  • Over-Temperature Alarm: Supported
  • Ping: Supported
  • Traceroute: Supported
  • Ping Watchdog: Supported
  • SPAN/RSPAN: Supported
  • Traffic Capture: Supported
  • Copper Test: Supported
  • Fiber Module Diagnostics: Supported
  • One-Click Debugging: Supported
  • sFlow: Supported

12. Hardware & Physical

  • CPU: Single-core MIPS interAptive™ 1GHz
  • RAM: 128 MB
  • Flash: 32 MB NOR Flash
  • Power Supply: 100–240V AC, 50/60Hz
  • Maximum Power Consumption: 145.5W including 120W PoE load
  • Dimensions: 330 × 175 × 44 mm
  • Weight: 1.77 kg
  • Mounting: Desktop, wall-mount or rack-mount
  • Rack-Mounting Kit: Included
  • Operating Temperature: 0°C to 45°C
  • Storage Temperature: -10°C to 60°C
  • Operating Humidity: 10%–90% RH, non-condensing
  • Storage Humidity: 5%–95% RH, non-condensing
  • MTBF: 70,000 hours
  • Fan: Fanless for GWN7801P Pro
  • Surge Protection: ±6kV common-mode for power and ±4kV common-mode for network ports
  • ESD Protection: ±12kV contact discharge
  • Certifications: FCC, CE, RCM, IC

Key Features

  • Layer 2+ managed switch for scalable business networks.
  • 8 × Gigabit Ethernet ports for high-speed wired connectivity.
  • 8 × PoE+ ports with up to 30W per port.
  • 120W total PoE power budget.
  • 2 × 2.5G SFP uplink ports for high-speed fiber connectivity.
  • 26Gbps switching capacity and 19.344Mpps forwarding rate.
  • 13Gbps total non-blocking throughput.
  • Advanced VLAN and traffic segmentation.
  • Advanced QoS for traffic prioritization.
  • IGMP/MLD Snooping for video, surveillance and AV applications.
  • Advanced ACL and network security.
  • IPv4/IPv6 dual-stack support.
  • Static routing and DHCP server/relay capabilities.
  • 802.1X, RADIUS and TACACS+ authentication.
  • ARP Inspection, IP Source Guard and DoS protection.
  • STP/RSTP/MSTP/PVST+/RPVST+ support.
  • LACP link aggregation for increased bandwidth and redundancy.
  • IEEE 1588v2/PTPv2 precise time synchronization.
  • Pro AV support for professional audio/video networks.
  • Multiple management options including GDMS Networking, GWN Manager, Web GUI, GWN App and CLI.
]]> https://store.namasteinfo.com/product/grandstream-gwn7801p-pro/feed/ 0 Grandstream GWN7801P https://store.namasteinfo.com/product/grandstream-gwn7801p/ https://store.namasteinfo.com/product/grandstream-gwn7801p/#respond Thu, 09 Jul 2026 09:21:05 +0000 https://store.namasteinfo.com/?post_type=product&p=5370

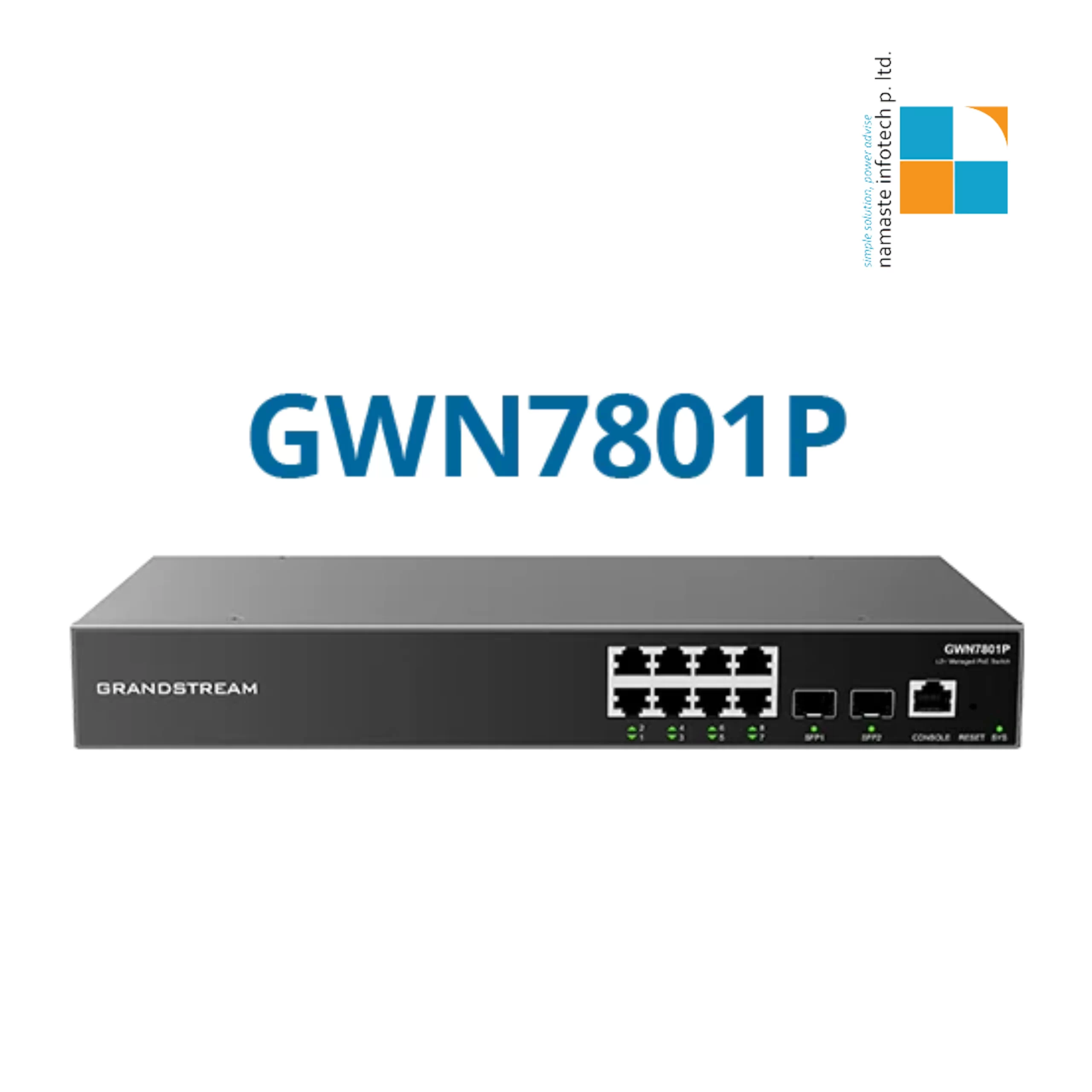

The Grandstream GWN7801P is a Layer 2+ managed Gigabit PoE+ switch designed for small and medium-sized business networks. Featuring 8 Gigabit PoE+ Ethernet ports, 2 Gigabit SFP uplink ports, and a 120W PoE budget, it provides secure, reliable, and high-performance connectivity for IP phones, wireless access points, IP cameras, and other PoE-powered devices. Advanced Layer 2+ switching, enterprise-grade security, QoS, and flexible cloud or on-premise management make it an ideal networking solution for modern business environments.]]>

Technical Specifications

General

  • Product Type: Layer 2+ Managed Gigabit PoE+ Switch
  • Series: GWN7800 Series
  • Management Type: Managed
  • Network Protocols: IPv4, IPv6
  • Embedded Controller
  • Cloud & On-Premise Management

Ports & Interfaces

  • 8 × 10/100/1000 Mbps Gigabit PoE+ RJ45 Ports
  • 2 × Gigabit SFP Uplink Ports
  • 1 × RJ45 Console Port
  • Reset Button

PoE Features

  • IEEE 802.3af/at Compliant
  • 8 PoE+ Ports
  • Maximum PoE Output Per Port: 30W
  • Total PoE Budget: 120W
  • Intelligent Dynamic PoE Allocation

Switching Performance

  • Switching Capacity: 20 Gbps
  • Non-Blocking Throughput: 10 Gbps
  • Forwarding Rate: 14.88 Mpps
  • MAC Address Table: 8K
  • Jumbo Frames: Up to 9,216 Bytes

Layer 2+ Features

  • IEEE 802.1Q VLAN
  • Port-Based VLAN
  • MAC-Based VLAN
  • Voice VLAN
  • QinQ
  • Link Aggregation (LACP)
  • STP, RSTP & MSTP
  • IGMP Snooping
  • MLD Snooping
  • Static Routing
  • Port Mirroring

QoS

  • Traffic Prioritization
  • Queue Scheduling
  • Rate Limiting
  • Bandwidth Management
  • Advanced QoS Policies

Security Features

  • 802.1X Authentication
  • MAC Authentication
  • RADIUS & TACACS+
  • DHCP Snooping
  • ARP Inspection
  • IP Source Guard
  • DoS Protection
  • Port Security
  • Storm Control
  • HTTPS, SSH & Telnet Management

Management

  • Embedded Web GUI
  • CLI Management
  • SNMP v1/v2c/v3
  • GDMS Networking Cloud
  • GWN Manager
  • Firmware Upgrade
  • Configuration Backup & Restore
  • Syslog Support

Physical

  • Desktop or Wall Mount Design
  • Metal Enclosure

Applications

  • Small & Medium Businesses
  • Enterprise Offices
  • Hotels & Hospitality
  • Educational Institutions
  • Healthcare Facilities
  • Retail Stores
  • IP Surveillance
  • VoIP Networks
  • Wireless Access Point Deployments

Product Categories

  • Networking
  • Network Switches
  • Managed Switches
  • Layer 2+ Switches
  • PoE Switches
  • Gigabit Ethernet Switches
  • Enterprise Networking
  • Grandstream Products
]]> https://store.namasteinfo.com/product/grandstream-gwn7801p/feed/ 0 Grandstream GWN7803P https://store.namasteinfo.com/product/grandstream-gwn7803p/ https://store.namasteinfo.com/product/grandstream-gwn7803p/#respond Thu, 09 Jul 2026 09:05:17 +0000 https://store.namasteinfo.com/?post_type=product&p=5365

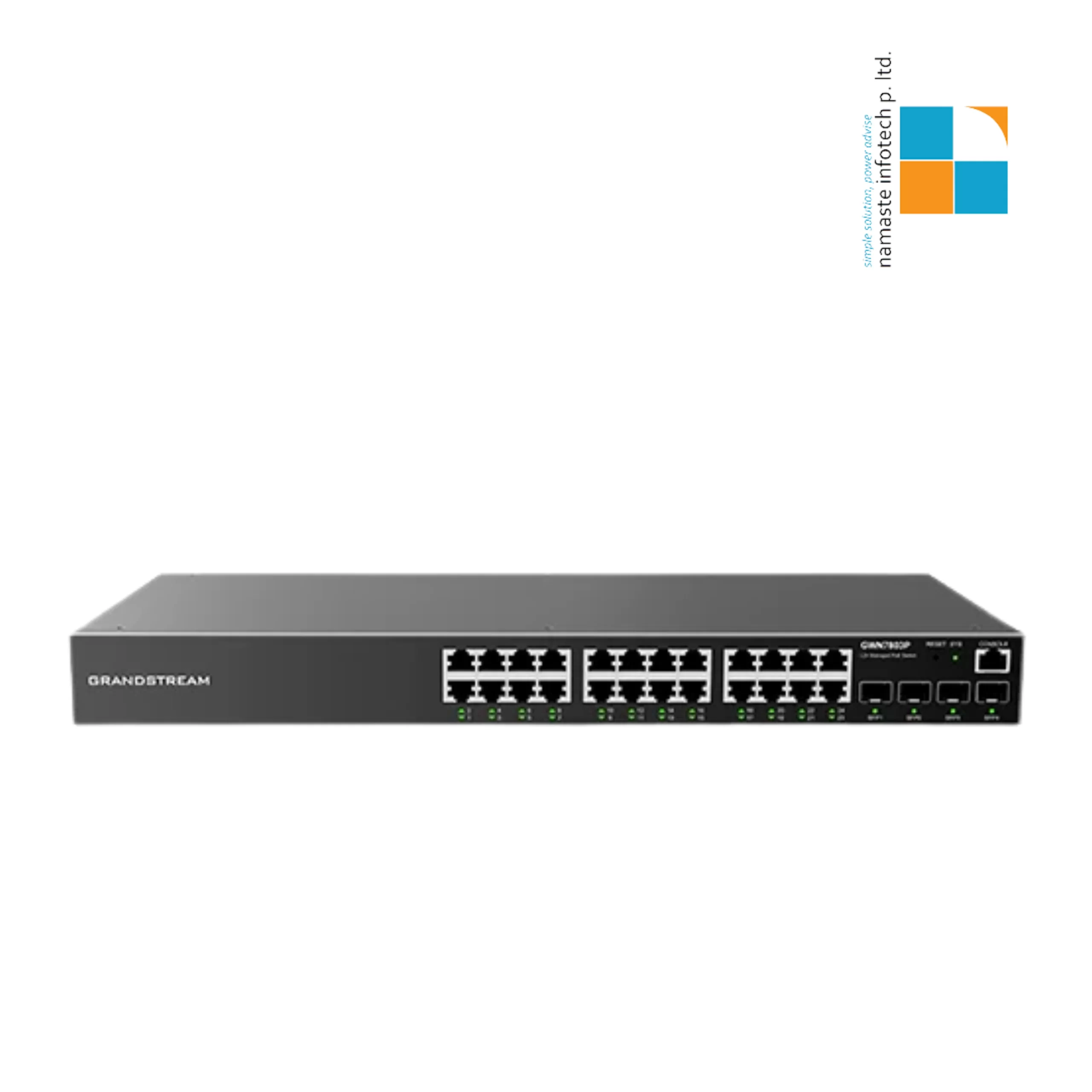

The Grandstream GWN7803P is an enterprise-grade Layer 2+ managed PoE network switch built for secure, scalable, and high-performance business networks. It features 24 Gigabit Ethernet PoE+ ports and 4 Gigabit SFP uplink ports, providing reliable connectivity for IP phones, wireless access points, IP cameras, and other PoE-enabled devices. With a 360W PoE power budget, advanced VLAN, QoS, and comprehensive security features, it is ideal for small to medium-sized enterprises. The switch supports centralized management through its embedded controller, GDMS Networking, and GWN Manager for simplified deployment and monitoring. Designed for modern business environments, the GWN7803P delivers intelligent switching, robust security, and dependable network performance.]]>

Grandstream GWN7803P Detailed Specifications

General

  • Product Type: Layer 2+ Managed PoE Switch
  • Series: GWN7800 Series
  • Deployment: Desktop/Rack Mount
  • Management: Managed
  • Network Protocols: IPv4, IPv6
  • Embedded Switch Controller
  • Cloud & On-Premise Management Support

Ports & Interfaces

  • 24 × 10/100/1000 Mbps Gigabit Ethernet PoE+ Ports
  • 4 × Gigabit SFP Uplink Ports
  • 1 × Console Port
  • 1 × Reset Button

PoE Features

  • 24 PoE+ Ports
  • IEEE 802.3af/at Compliant
  • Maximum PoE Output per Port: 30W
  • Total PoE Budget: 360W
  • Smart Dynamic PoE Power Allocation
  • Automatic PoE Device Detection

Switch Performance

  • Switching Capacity: 56 Gbps
  • Total Non-Blocking Throughput: 28 Gbps
  • Forwarding Architecture: Store-and-Forward
  • 8K MAC Address Table
  • Jumbo Frame Support: Up to 9K Bytes

Layer 2 Features

  • IEEE 802.1Q VLAN
  • Port-Based VLAN
  • MAC-Based VLAN
  • Voice VLAN
  • QinQ
  • Link Aggregation (LACP)
  • STP, RSTP, MSTP
  • IGMP Snooping
  • MLD Snooping
  • Port Mirroring
  • Loop Detection

Quality of Service (QoS)

  • Advanced QoS
  • Traffic Prioritization
  • Voice & Video Optimization
  • Rate Limiting
  • Bandwidth Management
  • Queue Scheduling

Security Features

  • 802.1X Authentication
  • MAC Authentication
  • RADIUS & TACACS+
  • DHCP Snooping
  • ARP Inspection
  • IP Source Guard
  • DoS Attack Protection
  • Port Security
  • Storm Control
  • HTTPS, SSH & Telnet Management
  • User Access Control

Management

  • Embedded Web GUI
  • CLI Management
  • SNMP
  • GDMS Networking Cloud Management
  • GWN Manager On-Premise Management
  • Firmware Upgrade Support
  • Configuration Backup & Restore

Power

  • Integrated Power Supply
  • Power Consumption Optimized
  • Smart PoE Power Management

Applications

  • Enterprise Networks
  • Business Offices
  • Hotels
  • Educational Institutions
  • Healthcare Facilities
  • Retail Stores
  • Surveillance Networks
  • IP Telephony Deployments
  • Wireless Access Point Networks

Product Categories

  • Networking
  • Network Switches
  • Managed Switches
  • Layer 2+ Switches
  • PoE Switches
  • Gigabit Ethernet Switches
  • Enterprise Networking
  • Grandstream Products
]]> https://store.namasteinfo.com/product/grandstream-gwn7803p/feed/ 0 Grandstream GWN7660ELR https://store.namasteinfo.com/product/grandstream-gwn7660elr/ https://store.namasteinfo.com/product/grandstream-gwn7660elr/#respond Thu, 09 Jul 2026 08:52:17 +0000 https://store.namasteinfo.com/?post_type=product&p=5361

The Grandstream GWN7660ELR is a high-performance, enterprise-grade outdoor Wi-Fi 6 access point engineered for long-range wireless connectivity in demanding environments. It features dual-band 2×2:2 MU-MIMO with OFDMA technology to deliver up to 3 Gbps aggregate wireless throughput while supporting 256 concurrent Wi-Fi clients. Its rugged weatherproof enclosure, advanced antenna design, and up to 300-meter coverage make it ideal for campuses, warehouses, industrial sites, schools, and outdoor public spaces. With built-in support for PoE/PoE+, advanced QoS, mesh networking, and enterprise-grade security, it ensures reliable and secure wireless performance. The GWN7660ELR also includes an embedded controller and supports GDMS Networking cloud management and GWN Manager for simple deployment and centralized administration.]]>

General

  • Product Type: Enterprise-Grade Outdoor Wi-Fi 6 Access Point
  • Deployment: Outdoor, Long-Range
  • Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
  • Technology: Dual-Band 2×2:2 MU-MIMO with OFDMA
  • Maximum Wireless Throughput: Up to 3 Gbps
  • Coverage Range: Up to 300 meters
  • Concurrent Clients: Up to 256
  • Maximum SSIDs: 32 (16 per radio)

Wireless Performance

  • 2.4 GHz Throughput: Up to 573.5 Mbps
  • 5 GHz Throughput: Up to 2.4 Gbps
  • Dual-Band Wi-Fi 6 (802.11ax)
  • MU-MIMO Technology
  • DL/UL OFDMA
  • Band Steering
  • Fast Roaming
  • Mesh Networking Support
  • Captive Portal Support
  • Load Balancing
  • Airtime Fairness

Network Interfaces

  • 1 × 10/100/1000 Mbps RJ45 Ethernet Port
  • 1 × 2.5 Gbps SFP Port
  • PoE (802.3af) & PoE+ (802.3at) Support
  • Auto PoE Detection
  • Maximum Power Consumption: 13W

Antennas

  • 5 Internal High-Gain Antennas
  • Optimized for long-range outdoor coverage
  • Enhanced RF performance for stable connectivity

Security Features

  • WPA/WPA2-Personal
  • WPA/WPA2-Enterprise (TKIP/AES)
  • WPA3 Security
  • Secure Boot Protection
  • Digital Signature Verification
  • Critical Data & Control Lockdown
  • Unique Security Certificate per Device
  • Random Default Password
  • Anti-Hacking Protection

Management

  • Embedded Controller (Manages up to 50 local GWN APs)
  • GDMS Networking Cloud Management
  • GWN Manager On-Premise Management
  • Web-Based User Interface
  • Zero-Touch Deployment Support

Quality of Service (QoS)

  • Advanced QoS
  • Real-Time Voice & Video Optimization
  • Low-Latency Application Prioritization
  • Voice-over-Wi-Fi Optimization

Outdoor & Environmental

  • Weatherproof & Dustproof: IP67-rated enclosure
  • Heat-Resistant Design
  • Operating Temperature: -30°C to 60°C
  • Designed for harsh outdoor environments

Mounting

  • Wall Mount
  • Pole Mount
  • Adjustable Mounting Kit Included (Up to 60° Rotation)

Physical Specifications

  • Dimensions: 270 × 230 × 57 mm
  • Rugged Outdoor Enclosure
  • Weight: Approximately 1 kg

Ideal Applications

  • Enterprise Campuses
  • Warehouses & Logistics Centers
  • Manufacturing Facilities
  • Hotels & Resorts
  • Schools & Universities
  • Hospitals
  • Stadiums & Outdoor Venues
  • Public Wi-Fi Hotspots
  • Industrial Parks
  • Smart City Deployments
]]> https://store.namasteinfo.com/product/grandstream-gwn7660elr/feed/ 0 Grandstream GWN7802P Pro https://store.namasteinfo.com/product/grandstream-gwn7802p-pro/ https://store.namasteinfo.com/product/grandstream-gwn7802p-pro/#respond Mon, 15 Jun 2026 10:37:15 +0000 https://store.namasteinfo.com/?post_type=product&p=5326

The Grandstream GWN7802P Pro is an enterprise-grade Layer 2++ managed network switch designed for high-performance business networks. It features 16 Gigabit PoE++ Ethernet ports and 2 high-speed 10G SFP+ uplink ports, making it ideal for IP phones, Wi-Fi access points, surveillance systems, and other PoE-powered devices. With advanced security features, intelligent power management, VLAN support, and flexible cloud or on-premise management options, the GWN7802P Pro delivers reliable, secure, and scalable networking for small to medium-sized enterprises. Its 250W PoE budget and robust switching capacity ensure smooth network performance even in demanding environments.]]>

Detailed Specifications

General

  • Model: GWN7802P Pro
  • Series: GWN7800 Pro Series
  • Switch Type: Layer 2++ Managed Switch
  • Form Factor: Rack Mountable
  • Management: Web UI, CLI, GDMS Networking (Cloud), GWN Manager, GWN Routers
  • Networking Support: IPv4 & IPv6

Ports & Interfaces

  • 16 × Gigabit RJ45 Ethernet Ports
  • 16 × PoE++ (802.3bt Type 3) Ports
  • 2 × 10 Gigabit SFP+ Uplink Ports
  • 1 × RJ45 Console Port

PoE Features

  • PoE Standards: IEEE 802.3af/at/bt
  • Maximum PoE Output: Up to 60W per port
  • Total PoE Budget: 250W
  • Smart Dynamic PoE Power Allocation

Performance

  • Switching Capacity: 72 Gbps
  • Non-Blocking Throughput: 36 Gbps
  • Forwarding Rate: 53.57 Mpps
  • Packet Buffer: 8.4 MB
  • MAC Address Table: 16K Entries
  • Jumbo Frame Support: Up to 12,288 Bytes

Network Features

  • VLAN Support
  • Link Aggregation
  • IGMP/MLD Snooping
  • QoS Traffic Prioritization
  • DHCP Server
  • Port Mirroring
  • Storm Control
  • Auto-MDI/MDIX
  • IPv4 & IPv6 Support

Security Features

  • ARP Inspection
  • IP Source Guard
  • DHCP Snooping
  • Port Security
  • DoS Attack Protection
  • RADIUS Authentication
  • MAC Filtering

Hardware

  • CPU: Single-Core MIPS Processor
  • Memory: 256 MB RAM
  • Flash Storage: 32 MB
  • Cooling: Intelligent Fan Cooling System

Physical & Power

  • Dimensions: 440 × 200 × 44 mm
  • Weight: 2.9 kg
  • Power Input: 100–240V AC, 50/60Hz
  • Maximum Power Consumption: 294.4W
  • Operating Temperature: 0°C to 45°C
]]> https://store.namasteinfo.com/product/grandstream-gwn7802p-pro/feed/ 0
