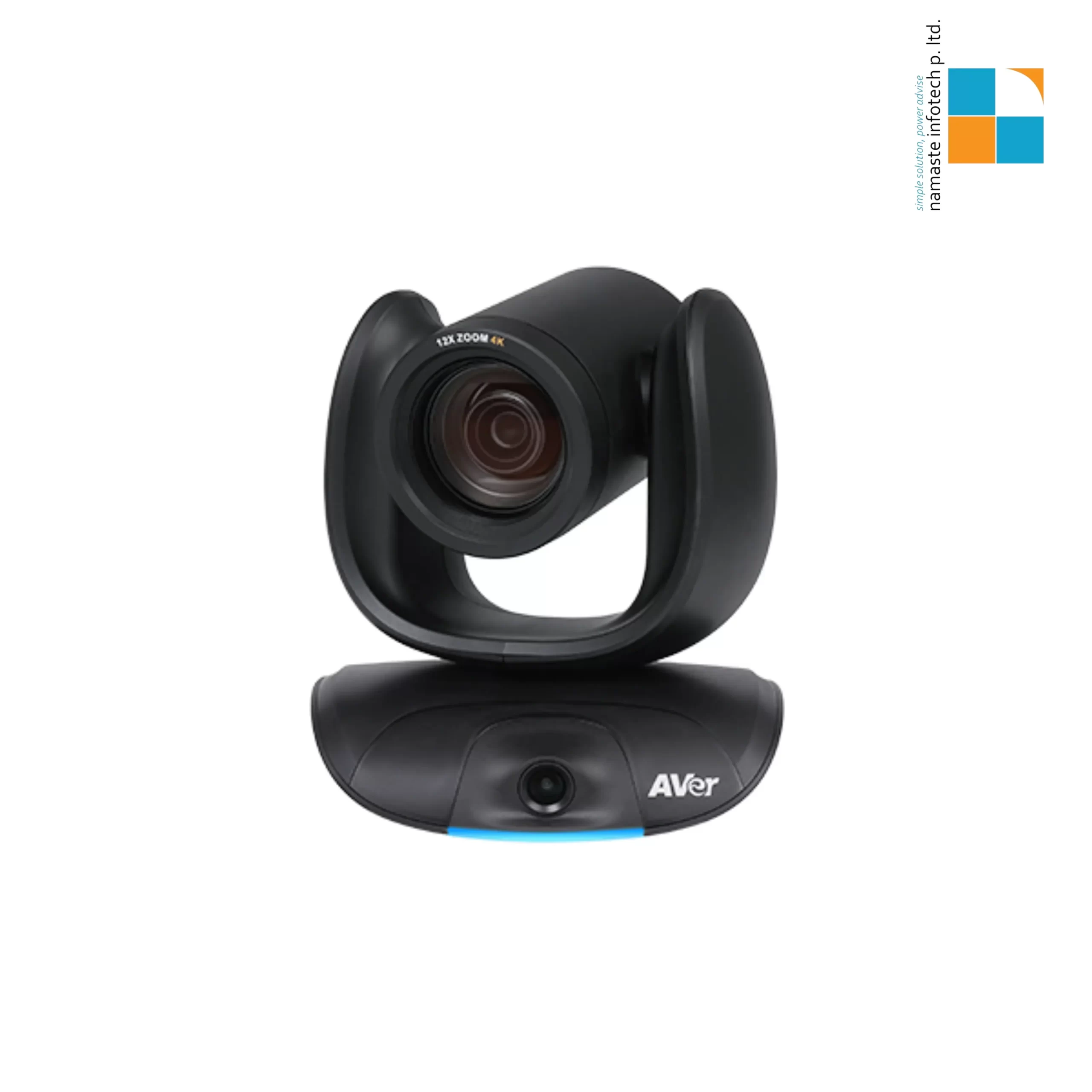

AVer CAM 550+FONE 700
AVer CAM 550+FONE 700 - Image 2
AVer CAM 550+FONE 700 - Image 3
AVer CAM 550+FONE 700 - Image 4
AVer CAM 550+FONE 700 - Image 5

AVer CAM 550+FONE 700

The CAM550 is equipped with an AI lens for automated PTZ functionality, which delivers a full view of meeting attendees and detects newcomers. The Smart Gallery feature puts up clear views of every participant on the remote side. Enable gesture control camera operation to enjoy a fluent, safe meeting experience. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.

The FONE700 takes any room pro in seconds. It connects with just one cable, eliminating tangled wires and complex configurations. No tech expertise needed – simply plug in and go. No technical expertise is required – simply connect and experience a seamless conferencing upgrade.

Categories: , Tags: , , , , , , , Brand:

Description

CAM 550-Specifications

Primary PTZ Camera

  • Image Sensor: Sony 4K EXMOR

  • Zoom: 12x Optical, 2x Digital (Total 24x Zoom)

  • Field of View:

    • Diagonal: 85°

    • Horizontal: 76°

    • Vertical: 46°

  • Focal Length: 3.9mm (wide) to 47.3mm (tele)

  • Aperture: f/1.8 (wide) to f/2.8 (tele)

  • Minimum Focus Distance: 1.5 meters

  • Pan Range: ±170°

  • Tilt Range: +90° to -30°

  • Presets:

    • 10 via IR Remote

    • 128 via RS232

  • True WDR: Up to 120dB for optimal lighting in high-contrast conditions

Secondary Fixed AI Camera

  • Image Sensor: Sony 4K EXMOR

  • Field of View:

    • Diagonal: 95°

    • Horizontal: 78°

    • Vertical: 50°

  • Frame Rates & Resolution: Synchronized with PTZ lens settings

🎥 Video & Output

  • Resolutions & Frame Rates:

    • 4K at 30fps (16:9)

    • 1080p, 1600×900, 1280×720, 960×540, 848×480, 800×448, 640×360 at 60/30/15fps

    • 1280×960, 800×600, 640×480 (4:3) at 60/30/15fps

  • Video Formats: YUV, YUY2, MJPEG

  • Network Video Compression: H.264, H.265

  • Network Protocols: RTSP, RTMP

  • Simultaneous Outputs: USB, HDMI, and IP

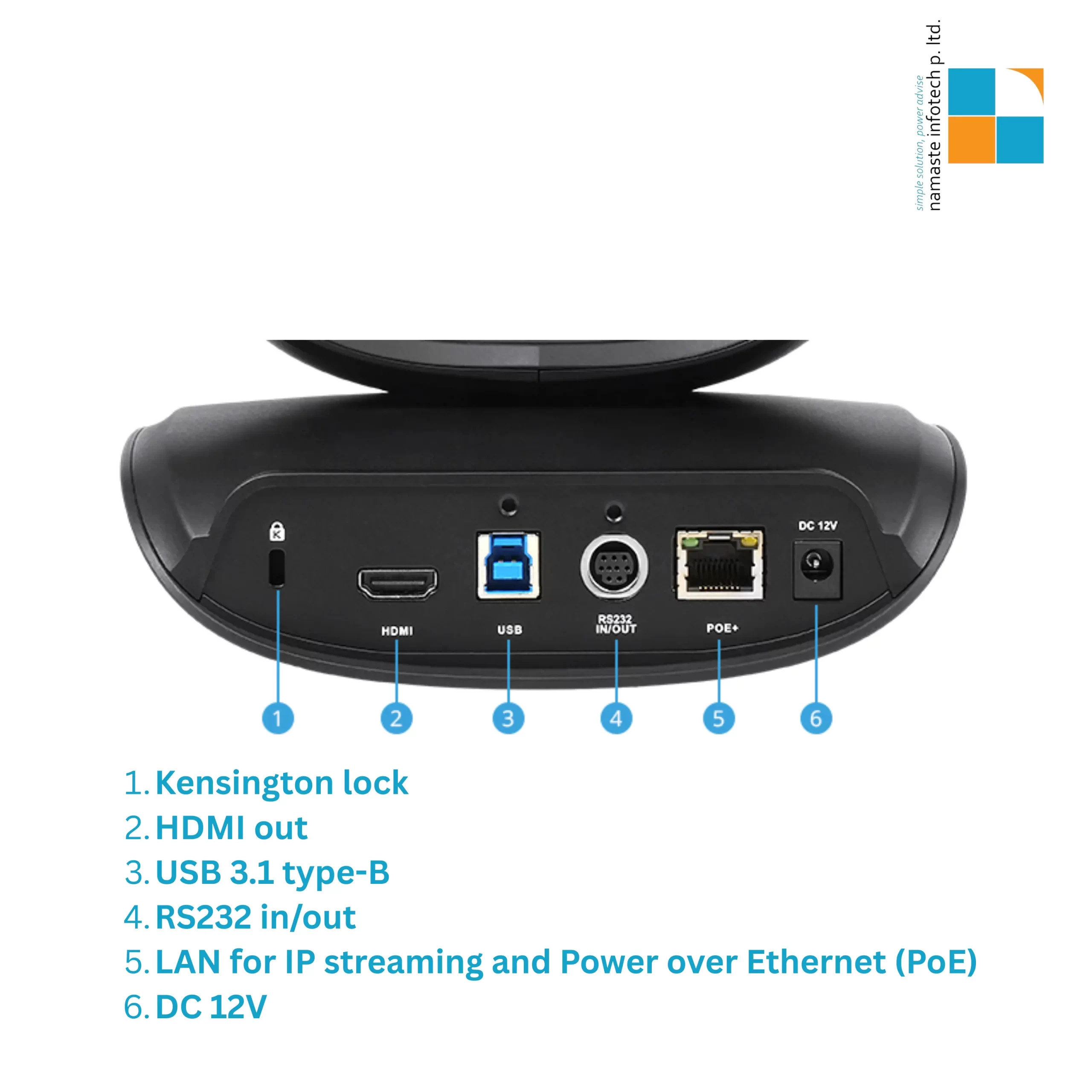

🔌 Connectivity & Interfaces

  • USB: USB 3.1 Gen 1 Type-B (Backward compatible with USB 2.0)

  • HDMI: HDMI 1.3 supporting 1080p at 30/60fps

  • LAN: RJ45 for IP streaming and control

  • RS232: Mini DIN9 for VISCA/pelco P/pelco D control protocols

  • Power:

    • DC 12V/2A

    • PoE+ (802.3at)

🧠 AI Features & Smart Functions

  • Dynamic Auto Framing: Automatically adjusts the camera to include all participants

  • Preset Framing: Tracks both preset areas and active speakers

  • Gesture Control: Allows intuitive camera control through hand gestures

  • Smart Gallery: Enhances visibility for individual participants

  • Picture-in-Picture (PIP): Displays both PTZ and AI lens views simultaneously

  • Audio Tracking Support: Integrates with third-party ceiling microphones (e.g., Shure, Sennheiser) via AVer Preset Link function

🖥️ System Requirements

  • Operating Systems:

    • Windows® 7/10/11

    • Mac OS X v10.14 or later

    • Chrome OS 94.0.4606.114 or later

  • Hardware:

    • Processor: 3.2 GHz Intel® Core™ i5-4460 or later

    • Memory: 4 GB RAM or more

🛠️ Control & Management

  • Control Interfaces:

    • IR Remote Control

    • VISCA/pelco P/pelco D via RS232

    • VISCA over IP

    • UVC Plug and Play

    • WebUI via Chrome browser (Not supported on Internet Explorer)

  • Software Applications:

    • PTZApp 2:

      • Camera settings software for smart gallery, virtual USB streaming, preset link, live video viewing, participant metrics, and meeting-interval information. It also allows firmware upgrades, camera control, parameter adjustments, and diagnostics.

    • EZManager 2:

      • Camera central management software for remotely grouping firmware/software upgrades, controlling the camera, and managing settings.

    • EZLive:

      • Broadcasting software for multi-camera real-time streaming, annotating, image capturing, and video recording.

📦 Package Contents

  • CAM550 Camera Unit

  • Power Adapter (10 ft/3 m)

  • USB 3.1 Type-B to Type-A Cable (3 m)

  • HDMI Cable (3 m)

  • Remote Control

  • Mini DIN9 to Mini DIN8 RS232 Adapter Cable

  • Wall Mount Bracket and Screws

  • Tripod Screw

  • Drill Paper

  • QR Code Card

📐 Physical Specifications

  • Camera Dimensions: 170.8 x 190.5 x 173 mm

  • Camera Weight: 2.1 kg

  • Remote Control Dimensions: 200 x 50 x 21 mm

  • Remote Control Weight: 90 g

  • Package Dimensions: 253 x 253 x 271 mm

  • Package Weight: 4.8 kg

🔐 Security & Mounting Options

  • Security: Kensington Lock Slot

  • Mounting Options:

    • Wall Mount (Bracket Included)

    • Tripod Mount (1/4″ Thread)

    • Optional Ceiling Mount (Note: CAM550 does not support upside-down installation)

    • Optional Foldable TV Mount

🌐 Compatibility

  • Compatible with various video conferencing platforms, including:

    • Zoom

    • Microsoft Teams

    • Skype

    • Skype for Business

    • Google Meet

    • RingCentral

    • BlueJeans

    • Intel Unite

    • Fuze

    • Adobe Connect

    • CyberLink U Meeting

    • Cisco WebEx

    • GoToMeeting

    • LiveOn

    • Microsoft Lync

    • TrueConf

    • V-Cube

    • Vidyo

    • vMix

    • WebRTC

    • Wirecast

    • XSplit

🛡️ Warranty

  • Camera: 3-Year Limited Warranty

  • Accessories: 1-Year Limited Warranty

  • Optional: 2-Year Extended Warranty available in certain regions



FONE700-Specifications

  • FONE700 System
    (Hub + Speakerphone)
    • Full duplex acoustic system for optimal meeting experience
    • One cable daisy chain up to 4 speakerphones for flexible installation
    • Versatile connectivity for video conferencing integration
    • Advanced acoustic features optimized for ceiling installation, powered by AVer algorithm for uncompromised audio quality across daisy-chain setup
    • Acoustic echo cancellation (AEC)
    • Advanced noise reduction (NR)
    • Automatic gain control (AGC)
    • Double-talk detection
    • De-reverberation
    • AI noise suppression
    • Voice fencing



  • FONE700 Speakerphone
    • 3 units directional + 18 units omnidirectional microphones
    • Acoustic pickup angle: 360 degrees per unit
    • Acoustic pickup range*: up to 3.5 m radius per unit
    • Speakerphone volume: adjustable, up to 99 dB SPL at 0.5 m
    • Daisy chain: up to 4 speakerphones with AVer-supplied RJ45 cable(s)

    *Optimal performance varies depending on acoustic treatment of meeting room

  • FONE700 Hub
    • Acoustic DSP Hub for speakerphone, expandable up to 3 additional units
    • One cable 48 V powered from Hub to 4 speakerphones via AVer-supplied Cat5 cable; no additional power required
    • Integration for video conferencing with versatile connections for:*
    • USB 3.0 type-C port for PC connection
    • USB 3.0 type-A ports for AVer USB cameras hub; up to 2 cameras connected
    • USB 2.0 type-A port for BT dongle connection
    • Speakerphone port for AVer proprietary daisy-chained technology
    • LAN port for remote control and AVer Virtual Audio technology
    • 4K HDMI output (for USB to display output from connected PC)
    • 3.5 mm line-out jack for external speaker or hearing aid system
    • 3.5 mm phone-in jack for phone calls or external microphone input

    *Settings configured in Room Management (PTZApp 2) or via web browser

  • Connection
    • USB with USB Audio Class (UAC) 1.0
    • RJ45 with AVer proprietary Virtual Audio (IP streaming)
    • Phone in (1Vrms input)



  • Control
    • USB Plug and Play: Video conference software with mute/unmute, volume up/down
    • Room Management (PTZApp 2) for advanced settings and AVer Virtual Audio streaming
    • Web browser for advanced remote settings



  • Security
    • Safety tether attachment points on speakerphone
    • Kensington slot on Hub



  • System Requirements
    • Windows® 7/10 or later
    • Mac OS X v10.13 or later
    • Google Chromebook™ version 76.0.3809.102 or later



  • Power Supply
    • AC 100 V to 240 V, 50/60 Hz
    • Consumption: 48 V, 3.75 A



  • Software Tools
    • Room Management (PTZApp 2)
    • Supports Windows® 7 or later, macOS® 11.6 or later
    • Enterprise Management (PTZ Management)
    • Supports Windows® 10 or later
    • Cloud Management
    • Supports Windows® 7 or later, macOS® 10 or later
  • Environmental Data
    • Operating temperature: 0°C to 40°C
    • Operating humidity: 20% to 80%
    • Storage temperature: -20°C to 60°C
    • Storage humidity: 20% to 80%



  • Dimensions
    • Package dimensions: 39.2 x 39.2 x 24 cm
    • Package weight: 7.83 kg
    • Hub: 21 x 12.5 x 4 cm/1.06 kg
    • Speakerphone: 37 x 37 x 16.5 cm/3.31 kg



  • Package Contents
    • FONE700 Ceiling Speakerphone
    • FONE700 Hub
    • Power adapter (48 V/3.75 A)
    • Power cable
    • RJ45 cable (10 m)
    • USB-C 2.0 cable (5 m)
    • Hub wall mount bracket with screws
    • Mount drill template
    • Quick Start Guide



  • Optional Accessories
    • Ceiling Speakerphone with 10 m cable supplied (for daisy chain)
    • RJ45 cable (10/20 m)
    • Ceiling mount kit
    • BT dongle
    • IR Receiver cable



  • Warranty
    • Speakerphone/ hub: 3 years
    • Accessories: 1 year

    *We offer an optional 2-year extended warranty in the European area. Please contact your local agency for details
