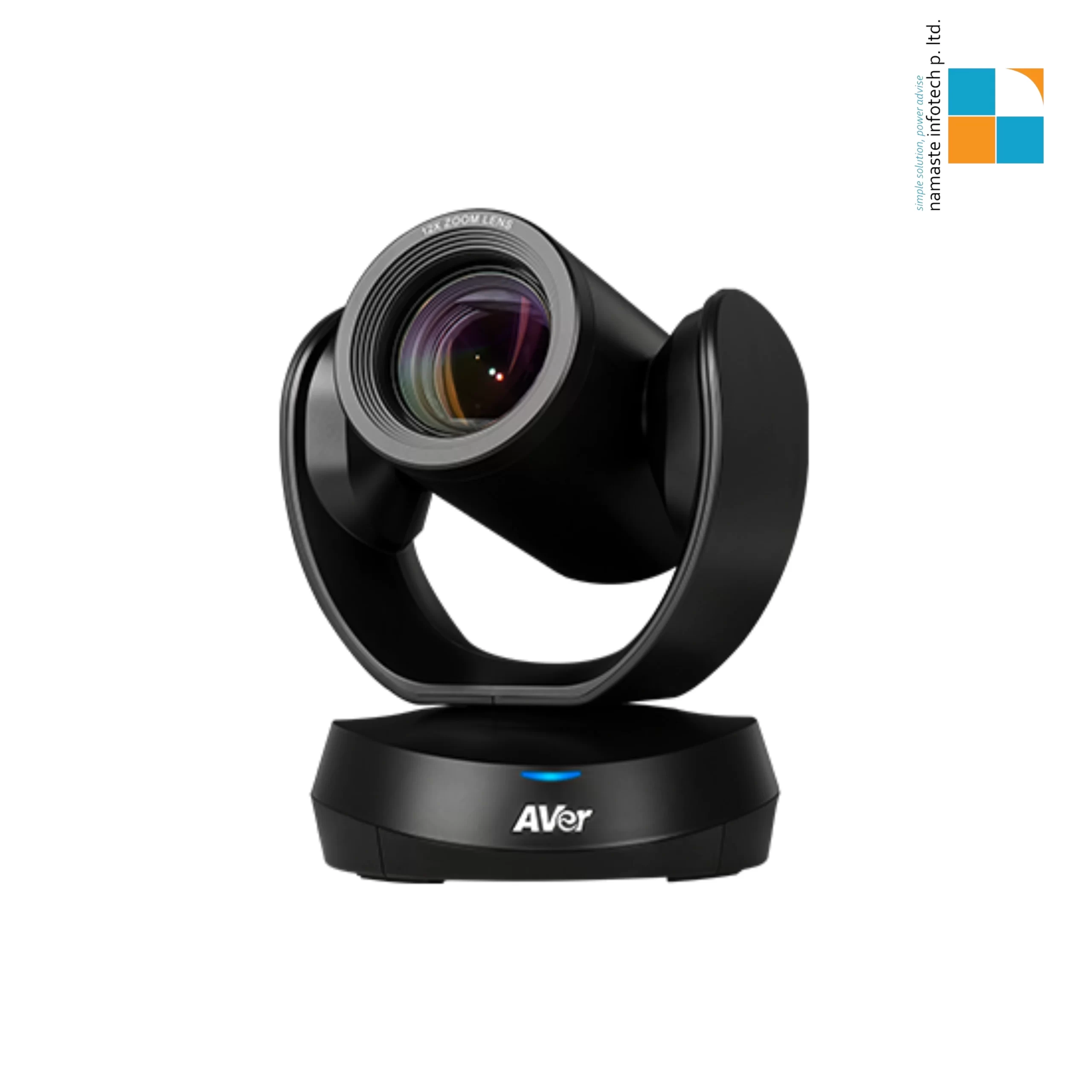

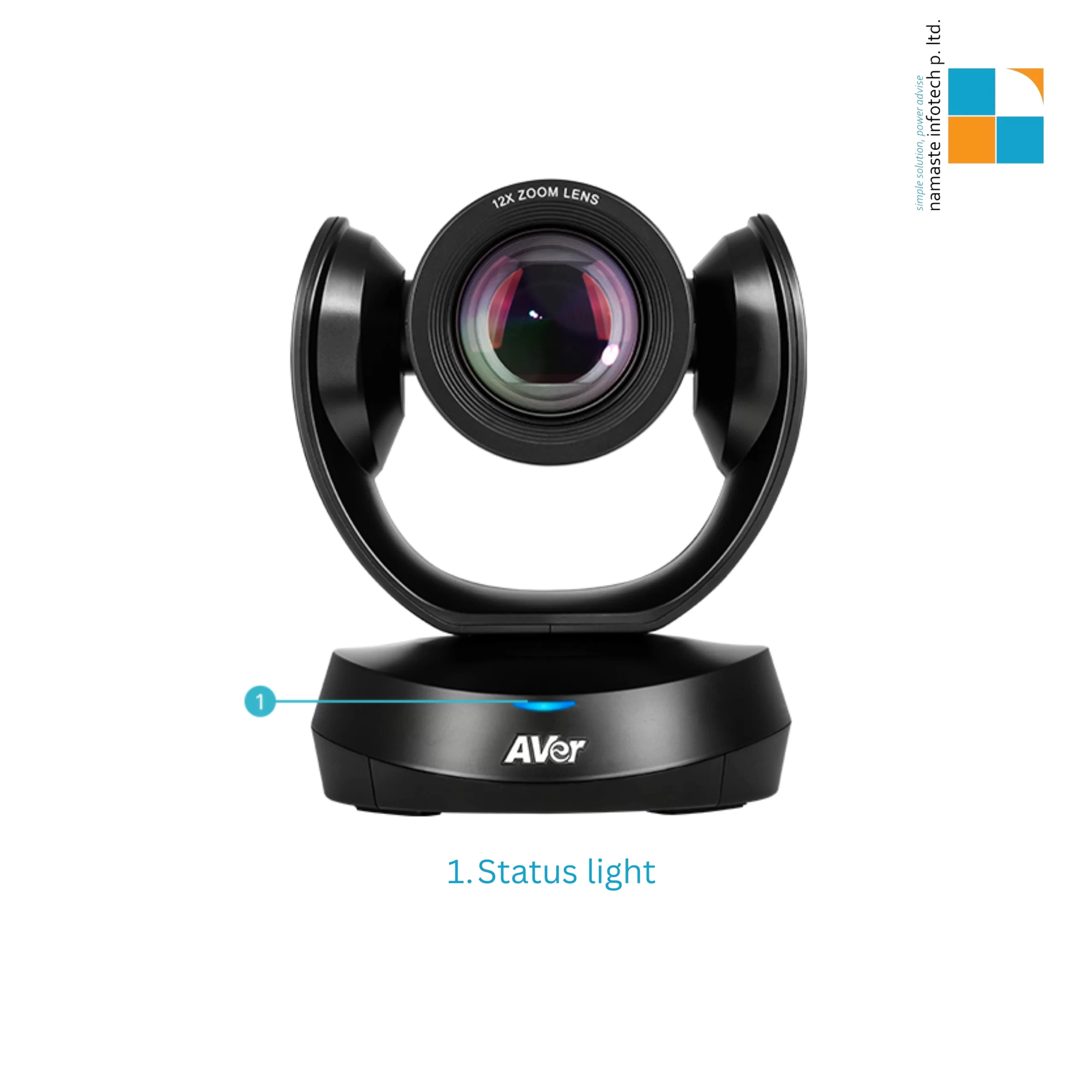

AVer CAM520 Pro3+ FONE 700

Description

Specifications

📷 Camera

• Image Sensor: Sony 8MP super low-light CMOS sensor

• Resolution & Frame Rates:

  • 1920×1080 (1080p), 1600×900, 1280×720, 960×540, 848×480, 800×448, 640×360, 424×240, 320×180 (16:9)

  • 1280×960, 800×600, 640×480, 480×360, 320×240 (4:3)

  • Frame rates: 60/30/15 fps

• Zoom: 12x Optical, 36x Total (12x optical + 6x digital)

• Field of View (FOV):

  • Diagonal: 80.5°

  • Horizontal: 72.8°

  • Vertical: 44.1°

• Lens:

  • Focal Length: 3.9 mm (wide) to 46.8 mm (tele)

  • Aperture: f/1.6 (wide) to f/2.8 (tele)

  • Minimum Focus Distance: 1 meter

• Pan & Tilt:

  • Pan: ±170°

  • Tilt: +90° (up) to -30° (down)

  • Fast and quiet movement

• Presets:

  • 10 via IR remote control

  • 128 via VISCA command over RS232

• Image Control:

  • Auto Exposure (AE), White Balance (AWB), and manual override via PTZApp 2

  • True Wide Dynamic Range (WDR) up to 120dB for optimal lighting in high-contrast conditions

---

🧠 AI Features & Smart Functions

• SmartFrame: Automatically adjusts the field of view to fit all participants

• Smart Composition: Utilizes AI to crop and frame each participant’s face or body for better visibility

• Preset Framing: Tracks presenters within predefined zones, smoothly adjusting the view as they move

• People-Counting API: Provides data for understanding meeting-space usage

---

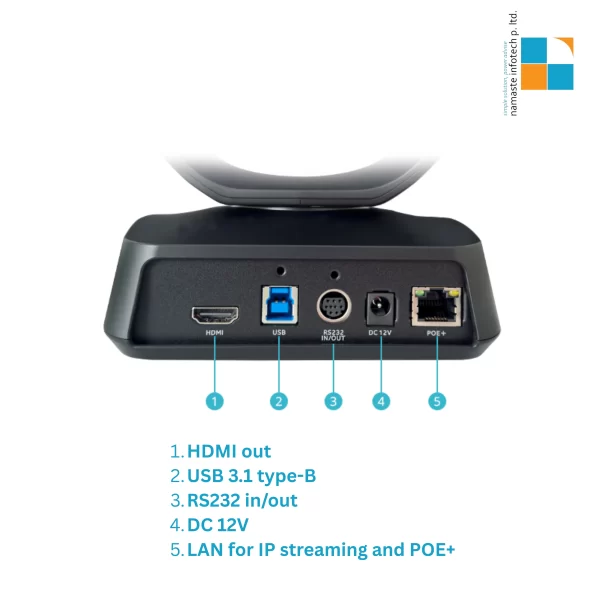

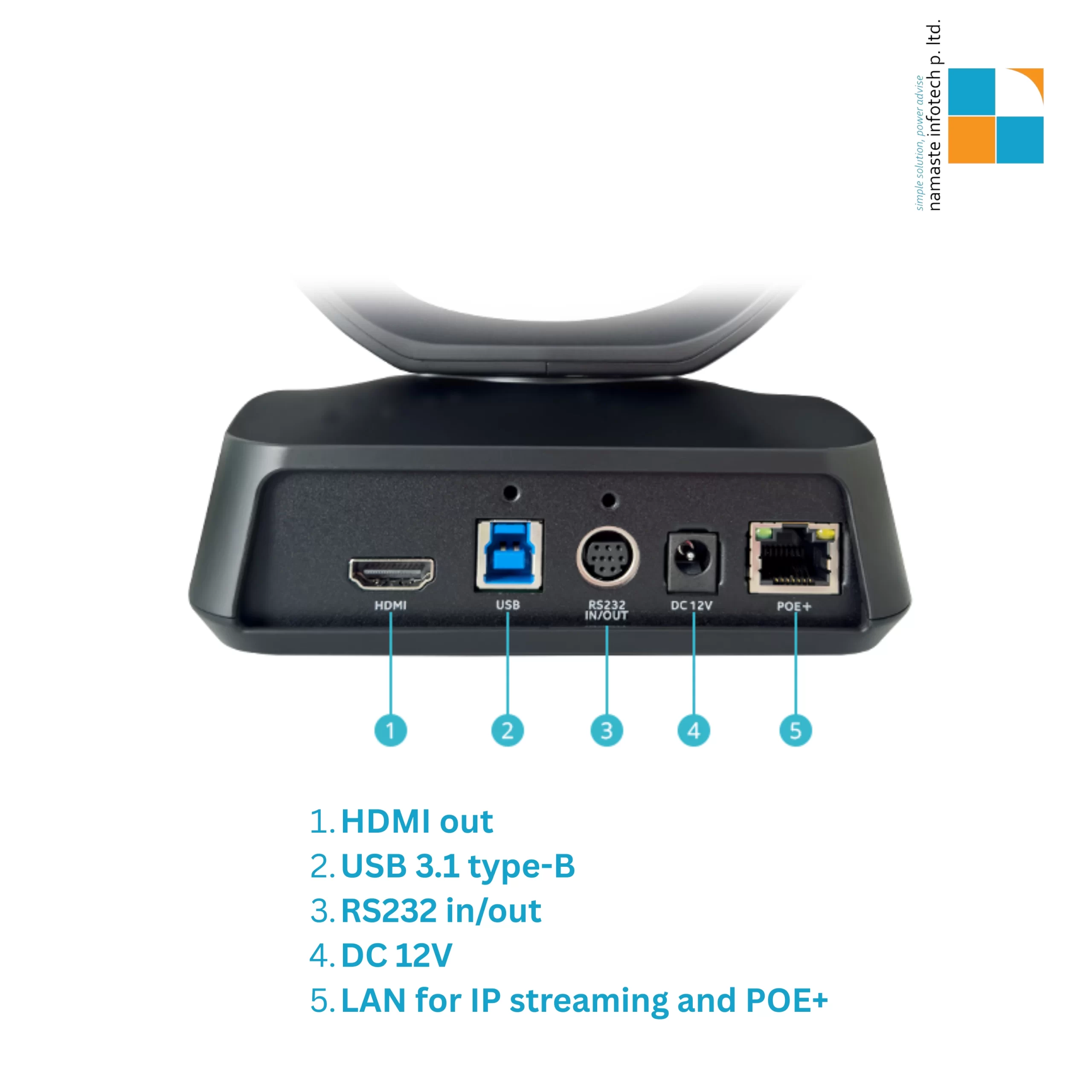

🔌 Connectivity & Interfaces

• Video Outputs:

  • USB 3.1 Type-B (backward compatible with USB 2.0)

  • HDMI 1.4

  • IP Streaming via RJ45 (supports RTSP/RTMP with H.264)

• Control Interfaces:

  • RS232 (Mini DIN9) for VISCA/pelco P/pelco D protocols

  • VISCA over IP

  • UVC Plug and Play

  • WebUI via Chrome browser (not supported on Internet Explorer)

• Power:

  • 12V/2A power adapter

  • PoE+ (802.3at) support

---

🖥️ System Requirements

• Operating Systems:

  • Windows® 7/10/11

  • Mac OS X v10.14 or later

  • Chrome OS 94.0.4606.114 or later

• Hardware:

  • Processor: 3.2 GHz Intel® Core™ i5-4460 or later

  • Memory: 4 GB RAM or more

---

🛠️ Control & Management Software

• PTZApp 2:

  • Camera settings software for smart gallery, virtual USB streaming, preset link, live video viewing, participant metrics, and meeting-interval information. It also allows firmware upgrades, camera control, parameter adjustments, and diagnostics.

• EZManager 2:

  • Camera central management software for remotely grouping firmware/software upgrades, controlling the camera, and managing settings.

• EZLive:

  • Broadcasting software for multi-camera real-time streaming, annotating, image capturing, and video recording.

---

📦 Package Contents

• CAM520 Pro3 Camera Unit

• Remote Control

• USB 2.0 Type-B to Type-A Cable (5 meters)

• Power Adapter (3 meters)

• Wall Mount Bracket with Screws

• Mini DIN9 to Mini DIN8 RS232 Adapter Cable

• Tripod Screw

• Quick Start Guide

• QR Code Card

---

📐 Physical Specifications

• Camera Dimensions: 182 x 142.7 x 153 mm

• Camera Weight: 1.47 kg

• Remote Control Dimensions: 200 x 50 x 21 mm

• Remote Control Weight: 0.09 kg

• Package Dimensions: 256 x 256 x 274 mm

• Package Weight: 3.335 kg

---

🔐 Security & Mounting Options

• Security: Kensington Lock Slot

• Mounting Options:

  • Wall Mount (Bracket Included)

  • Tripod Mount (1/4″ Thread)

  • Optional Ceiling Mount

  • Optional Foldable TV Mount

---

🌐 Compatibility

• Certified for Microsoft Teams

• Compatible with various video conferencing platforms, including:

  • Zoom

  • Skype

  • Skype for Business

  • Google Meet

  • RingCentral

  • BlueJeans

  • Intel Unite

  • Fuze

  • Adobe Connect

  • Cisco WebEx

  • GoToMeeting

  • LiveOn

  • Microsoft Lync

  • TrueConf

  • V-Cube

  • Vidyo

  • vMix

  • WebRTC

  • Wirecast

  • XSplit

---

🛡️ Warranty

• Camera: 3-Year Limited Warranty

• Accessories: 1-Year Limited Warranty

• Optional: 2-Year Extended Warranty available in certain regions

  FONE700-Specifications

  • FONE700 System
    (Hub + Speakerphone)

    • Full duplex acoustic system for optimal meeting experience
    • One cable daisy chain up to 4 speakerphones for flexible installation
    • Versatile connectivity for video conferencing integration
    • Advanced acoustic features optimized for ceiling installation, powered by AVer algorithm for uncompromised audio quality across daisy-chain setup
    • Acoustic echo cancellation (AEC)
    • Advanced noise reduction (NR)
    • Automatic gain control (AGC)
    • Double-talk detection
    • De-reverberation
    • AI noise suppression
    • Voice fencing

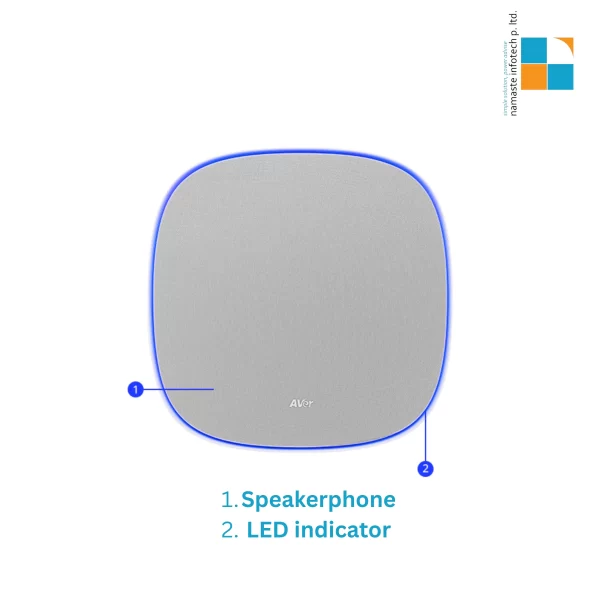

  • FONE700 Speakerphone

    • 3 units directional + 18 units omnidirectional microphones
    • Acoustic pickup angle: 360 degrees per unit
    • Acoustic pickup range*: up to 3.5 m radius per unit
    • Speakerphone volume: adjustable, up to 99 dB SPL at 0.5 m

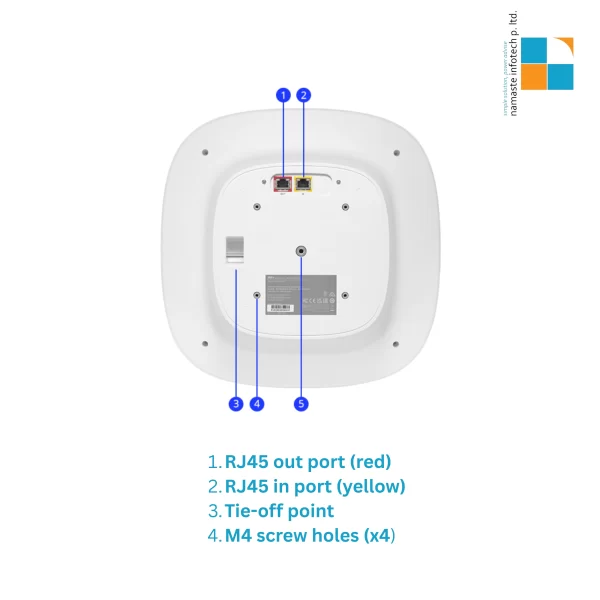

    • Daisy chain: up to 4 speakerphones with AVer-supplied RJ45 cable(s)

    *Optimal performance varies depending on acoustic treatment of meeting room

  • FONE700 Hub

    • Acoustic DSP Hub for speakerphone, expandable up to 3 additional units
    • One cable 48 V powered from Hub to 4 speakerphones via AVer-supplied Cat5 cable; no additional power required
    • Integration for video conferencing with versatile connections for:*
    • USB 3.0 type-C port for PC connection
    • USB 3.0 type-A ports for AVer USB cameras hub; up to 2 cameras connected
    • USB 2.0 type-A port for BT dongle connection
    • Speakerphone port for AVer proprietary daisy-chained technology
    • LAN port for remote control and AVer Virtual Audio technology
    • 4K HDMI output (for USB to display output from connected PC)
    • 3.5 mm line-out jack for external speaker or hearing aid system
    • 3.5 mm phone-in jack for phone calls or external microphone input

    *Settings configured in Room Management (PTZApp 2) or via web browser

  • Connection

    • USB with USB Audio Class (UAC) 1.0
    • RJ45 with AVer proprietary Virtual Audio (IP streaming)
    • Phone in (1Vrms input)



  • Control

    • USB Plug and Play: Video conference software with mute/unmute, volume up/down
    • Room Management (PTZApp 2) for advanced settings and AVer Virtual Audio streaming
    • Web browser for advanced remote settings



  • Security

    • Safety tether attachment points on speakerphone
    • Kensington slot on Hub



  • System Requirements

    • Windows^® 7/10 or later
    • Mac OS X v10.13 or later
    • Google Chromebook™ version 76.0.3809.102 or later



  • Power Supply

    • AC 100 V to 240 V, 50/60 Hz
    • Consumption: 48 V, 3.75 A



  • Software Tools

    • Room Management (PTZApp 2)
    • Supports Windows^® 7 or later, macOS^® 11.6 or later
    • Enterprise Management (PTZ Management)
    • Supports Windows^® 10 or later
    • Cloud Management
    • Supports Windows^® 7 or later, macOS^® 10 or later

  • Environmental Data

    • Operating temperature: 0°C to 40°C
    • Operating humidity: 20% to 80%
    • Storage temperature: -20°C to 60°C
    • Storage humidity: 20% to 80%



  • Dimensions

    • Package dimensions: 39.2 x 39.2 x 24 cm
    • Package weight: 7.83 kg
    • Hub: 21 x 12.5 x 4 cm/1.06 kg
    • Speakerphone: 37 x 37 x 16.5 cm/3.31 kg



  • Package Contents

    • FONE700 Ceiling Speakerphone
    • FONE700 Hub
    • Power adapter (48 V/3.75 A)
    • Power cable
    • RJ45 cable (10 m)
    • USB-C 2.0 cable (5 m)
    • Hub wall mount bracket with screws
    • Mount drill template
    • Quick Start Guide



  • Optional Accessories

    • Ceiling Speakerphone with 10 m cable supplied (for daisy chain)
    • RJ45 cable (10/20 m)
    • Ceiling mount kit
    • BT dongle
    • IR Receiver cable



  • Warranty

    • Speakerphone/ hub: 3 years
    • Accessories: 1 year

    *We offer an optional 2-year extended warranty in the European area. Please contact your local agency for details

  • Compatible Applications

    • Software supports UAC connections, e.g., Zoom, Zoom Rooms, Microsoft^® Teams, Microsoft^® Teams Rooms, Google Meet™, etc
