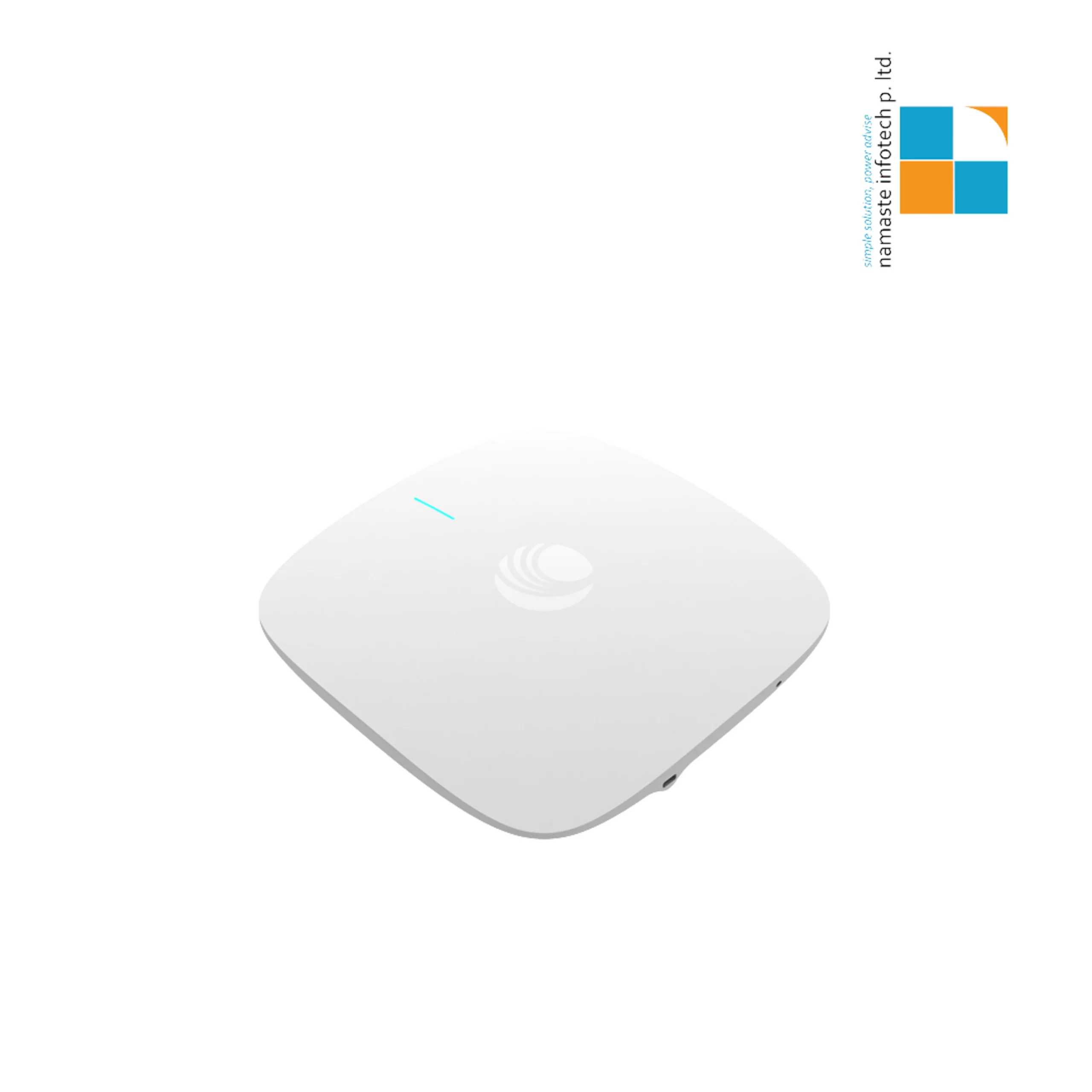

Cambium cnPilot e410 Wi-Fi 5 Indoor Wireless Access Point with PoE Injector

Description

Designed to scale from small enterprises to K12 schools, the e410  feature an easy-to-install integrated bracket and is enterprise grade 802.11ac Wave 2. e410  share a common industrial design for repeatable and predictable installation in any enterprise or business. Access points (AP) can be managed by cnMaestro cloud, on-premises cnMaestro, a private data center or as a standalone AP.

General Specifications

• Wi-Fi Standard: 802.11ac Wave 2
• Frequency Bands:
  • 2.4 GHz (802.11 b/g/n) with 2×2 MU-MIMO
  • 5 GHz (802.11 a/n/ac Wave 2) with 2×2 MU-MIMO
• Maximum PHY Rate:
  • 2.4 GHz: 400 Mbps
  • 5 GHz: 867 Mbps

Hardware and Design

• Antenna Type: Internal omni-directional antennas
  • 2.4 GHz gain: 5.24 dBi
  • 5 GHz gain: 5.47 dBi
• Dimensions: 180 mm x 180 mm x 42 mm (7.09 in x 7.09 in x 1.65 in)
• Weight: 384 g (0.85 lb)
• Power Supply: 802.3af PoE powered device
  • Typical Load: 9 W
  • Maximum Load: 11.5 W
• Mounting Options: Desktop, wall, ceiling tile mount; includes T-bar mount
• LED Indicator: Single Tri-color LED (amber, blue, green)

Capacity and Performance

• Client Capacity: Up to 256 clients per radio
• SSID Support: 32 SSIDs (16 per radio)
• WLAN Security: WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open

Interfaces and Connectivity

• Ethernet: One Gigabit Ethernet port
• Frequency Range:
  • 2.4 GHz: 2400-2483.5 MHz
  • 5 GHz: 5150-5850 MHz
  • Channels vary by country regulations
• Max EIRP:
  • 2.4 GHz: 29.50 dBm
  • 5 GHz: 30 dBm

Environmental and Regulatory

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: Up to 95% RH non-condensing
• Certifications: Wi-Fi Alliance 802.11 a/b/g/n/ac, Passpoint 2.0, FCC, ETSI, CE, EN 60601-1-2, IEC62368, UL2043
• Mean Time Between Failures (MTBF): 1.5 million hours

Software and Management

• Management Platform: cnMaestro (cloud or on-premises)
• Key Features:
  • Zero-touch provisioning
  • Mass configuration & upgrades
  • Dashboard with alarms and troubleshooting tools
  • Controller-less roaming for seamless user experience
  • Hotspot capabilities: Vouchers, social login, and credit card gateways
  • Airtime fairness, MU-MIMO, beamsteering, and RF management
