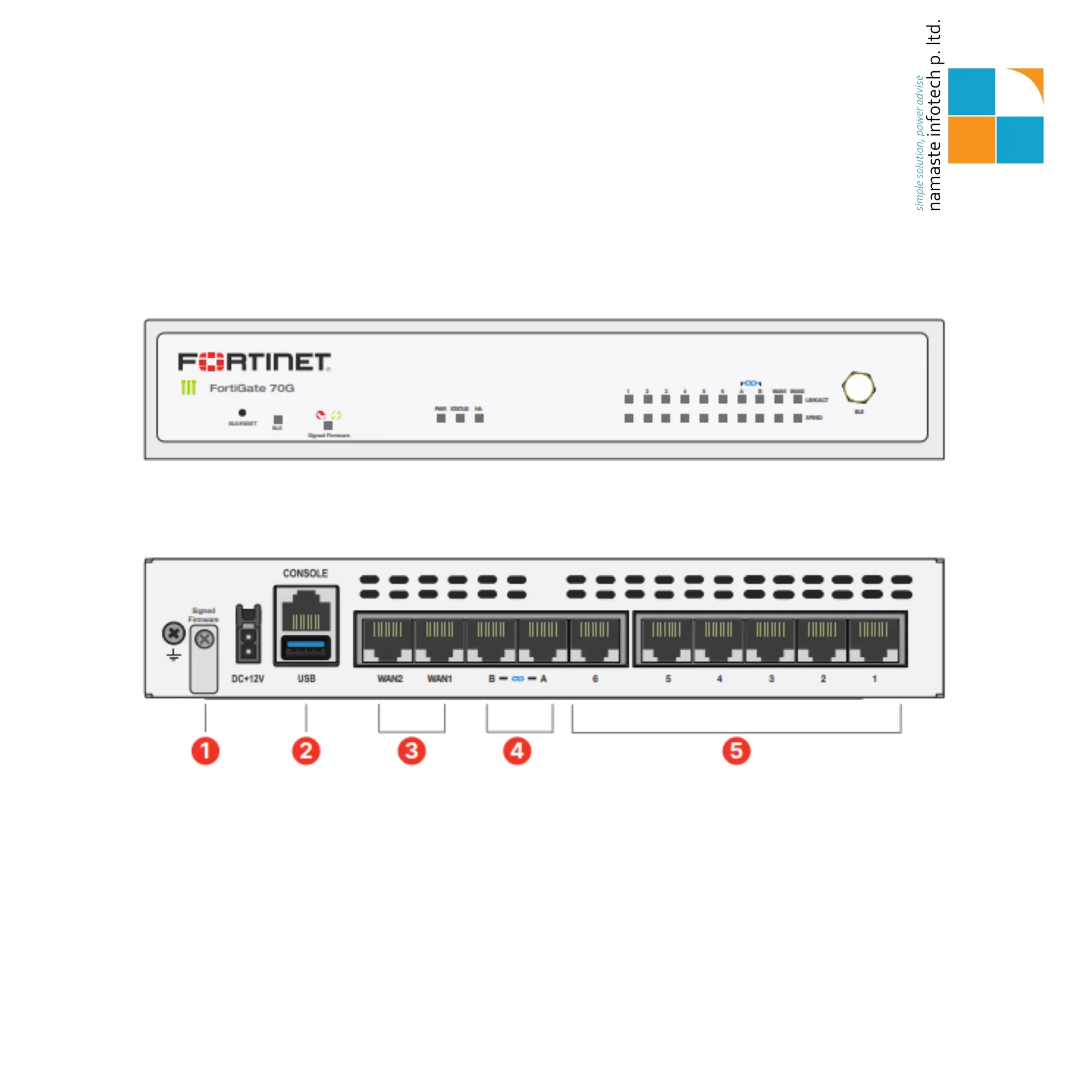

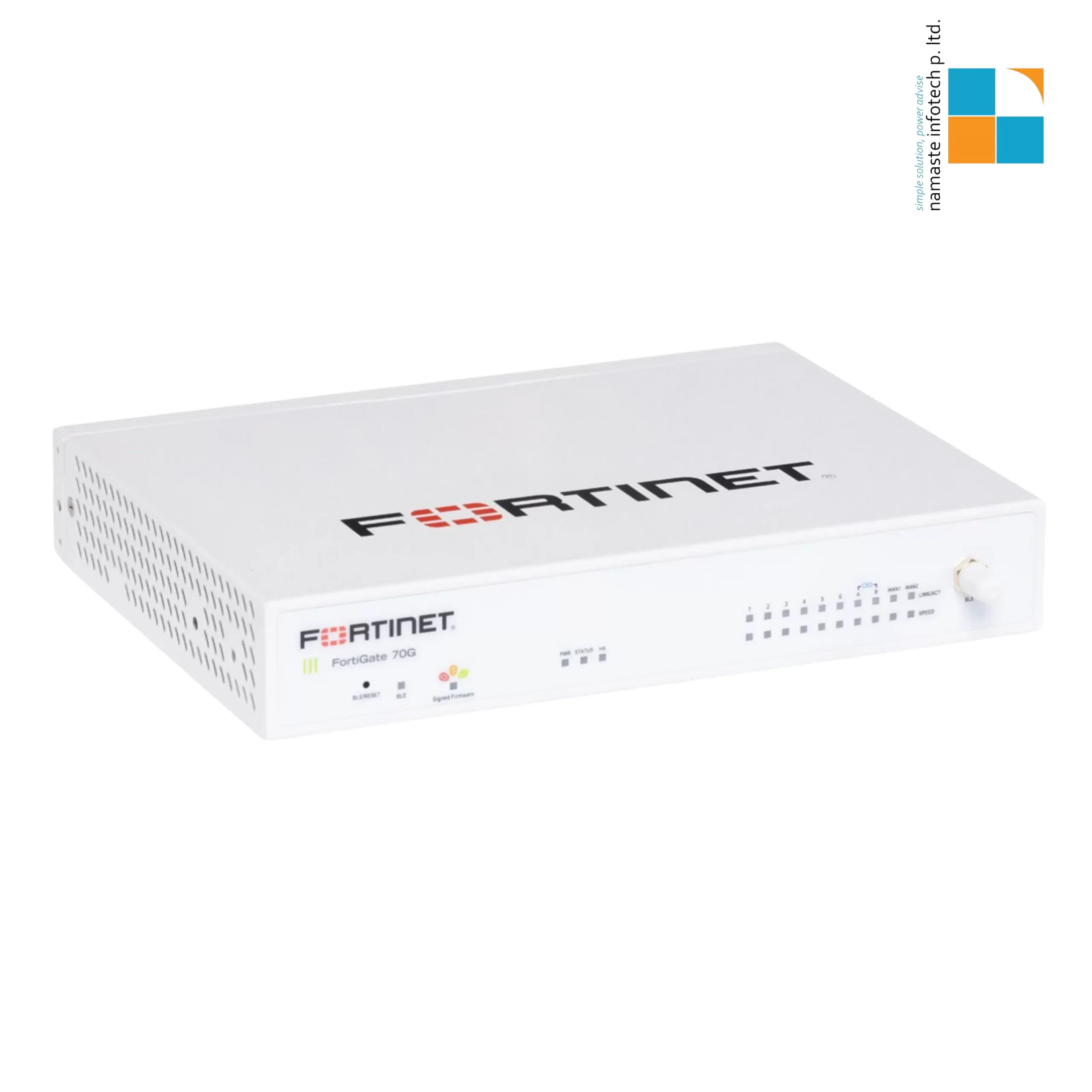

Fortinet Fortigate 70G Firewall Appliance Specifications
| Category | Specification |
|---|---|
| Hardware Specifications | |
| Hardware Accelerated GE WAN Ports | 2 |
| Hardware Accelerated GE RJ45 Ports | 6 |
| Hardware Accelerated GE RJ45 FortiLink Ports (Default) | 2 |
| Hardware Accelerated GE RJ45 PoE/+ Ports | — |
| USB Port | 1 |
| Console Port (RJ45) | 1 |
| Internal Storage | — |
| Trusted Platform Module (TPM) | YES |
| Bluetooth Low Energy (BLE) | YES |
| Signed Firmware Hardware Switch | YES |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 2.5 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Threat Protection Throughput | 1.3 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10 / 10 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.46 μs |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.4 Million |
| New Sessions/Second (TCP) | 100,000 |
| Firewall Policies | 5000 |
| IPsec VPN Throughput (512 byte) | 7.1 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | N/A |
| Concurrent SSL-VPN Users (Tunnel Mode, Recommended Max) | N/A |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.4 Gbps |
| SSL Inspection CPS (avg. HTTPS) | 715 |
| SSL Inspection Concurrent Sessions (avg. HTTPS) | 140,000 |
| Application Control Throughput (HTTP 64K) | 3.6 Gbps |
| CAPWAP Throughput (HTTP 64K) | 6.8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
