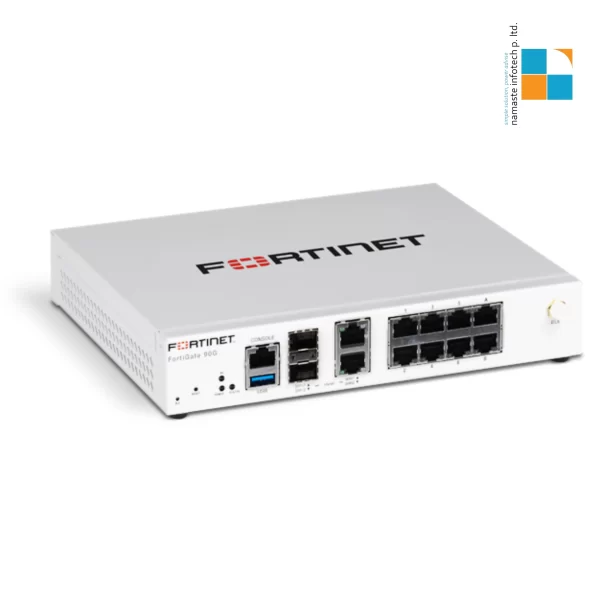

Fortinet Fortigate 90G Firewall Appliance Specifications
| Firewall Throughput (1518/512/64 byte UDP) | 28 / 28 / 27.9 Gbps |
| IPsec VPN Throughput (512 byte) | 25 Gbps |
| IPS Throughput (Enterprise Mix) | 4.5 Gbps |
| NGFW Throughput (Enterprise Mix) | 2.5 Gbps |
| Threat Protection Throughput | 2.2 Gbps |
| Firewall Latency | 3.23 µs |
| Concurrent Sessions | 3 Million |
| New Sessions per Second | 124,000 |
| Firewall Policies | 5,000 |
| Max G/W to G/W IPsec Tunnels | 200 |
| Max Client to G/W IPsec Tunnels | 2,500 |
| SSL VPN Throughput | 1.4 Gbps |
| Concurrent SSL VPN Users | 200 |
| SSL Inspection Throughput | 2.6 Gbps |
| Application Control Throughput | 6.7 Gbps |
| Max FortiAPs (Total / Tunnel) | 128 / 64 |
| Max FortiSwitches | 24 |
| Max FortiTokens | 500 |
| Virtual Domains (Default/Max) | 10 / 10 |

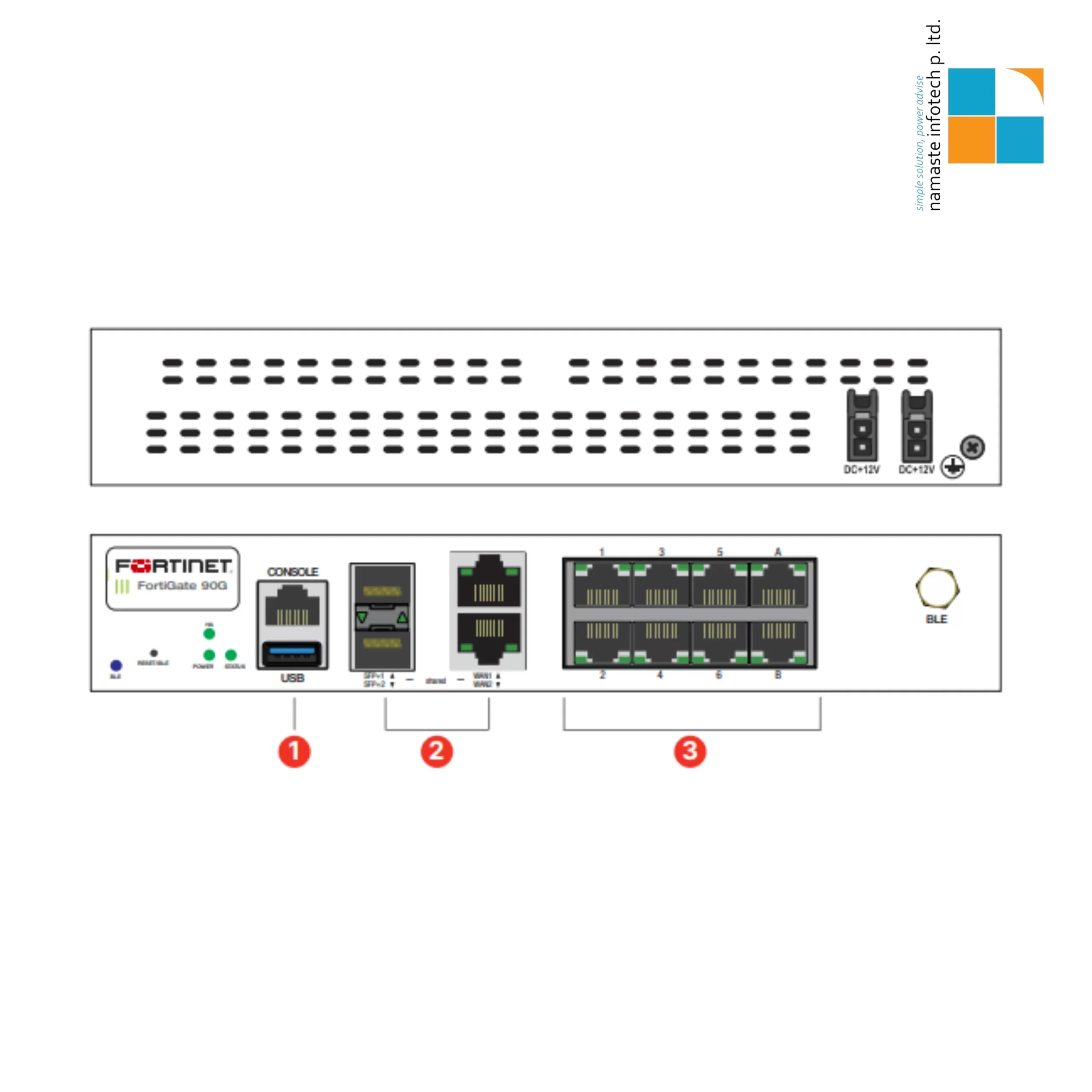

| Interfaces | 8x GE RJ45, 2x 10GE Shared Port Pairs |
| Local Storage | 120 GB (91G) |
| Power Supplies | Single AC PS, dual inputs |
| Form Factor | Desktop |
| Variants | — |
–
–
