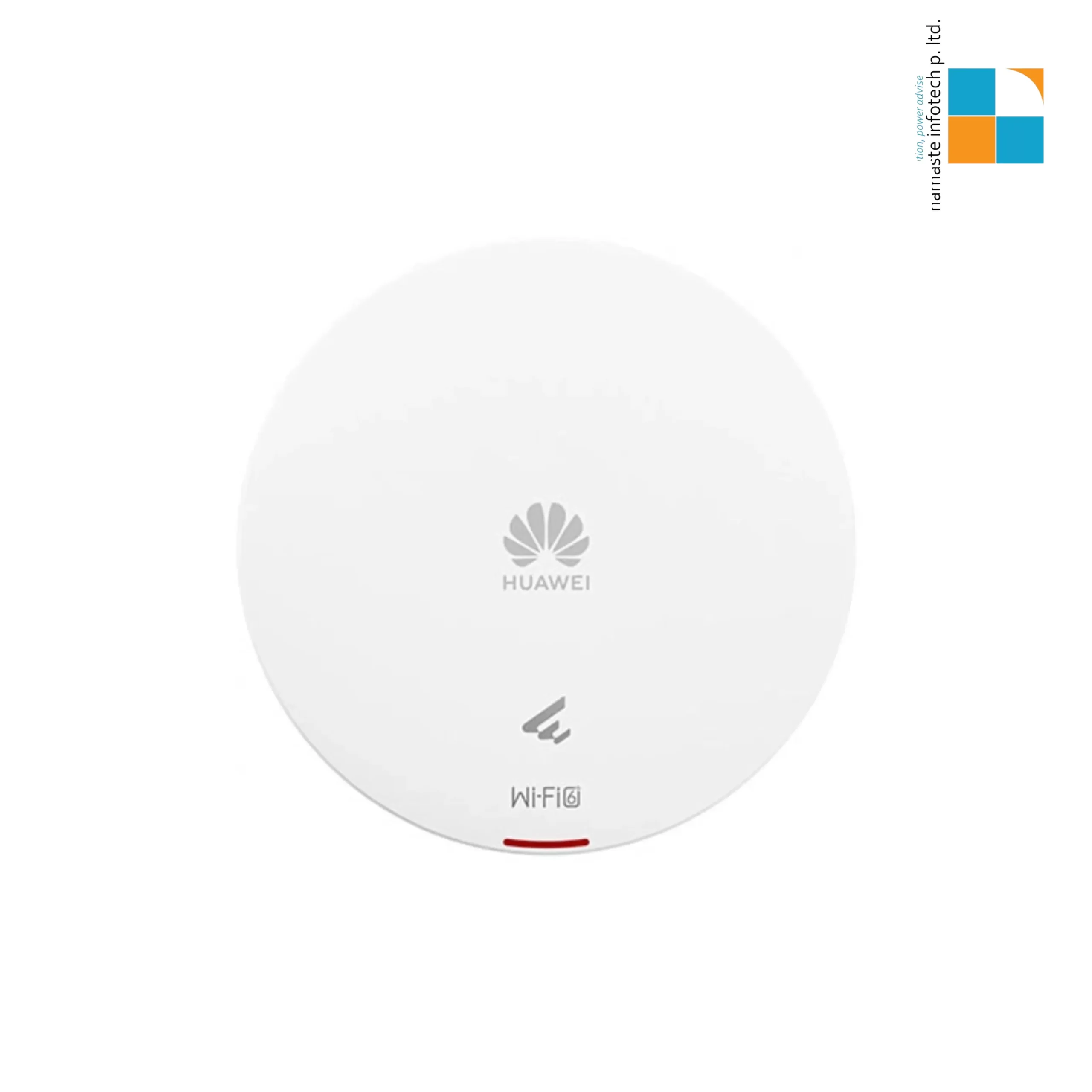

Huawei eKitEngine AP361 Access Point

Description

📌 Technical Specifications

• Dimensions (D × H): 180 mm × 35 mm

• Weight: 0.45 kg

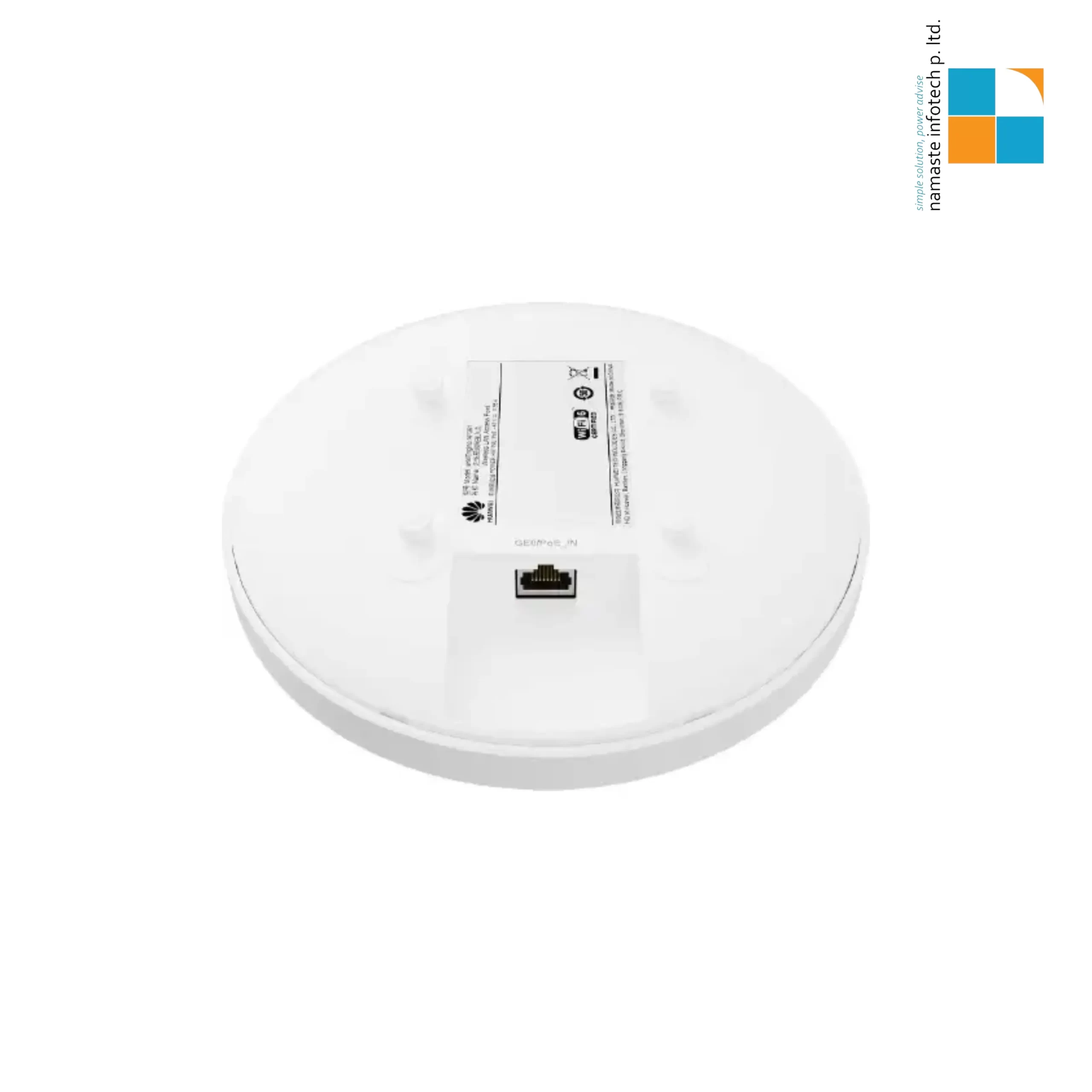

• Port Type: 1 × 10M/100M/1GE electrical port (supports PoE input)

• LED Indicator: Shows power, startup, running, alarm, and fault states

---

⚡ Power Specifications

• Power Input: PoE (IEEE 802.3af compliant)

• Max Power Consumption: 8.8 W (varies by regulations)

---

🌡️ Environmental Specifications

• Operating Temperature: –10°C to +50°C

  • (If altitude 1800–5000 m, temperature decreases 1°C per +300 m)

• Storage Temperature: –40°C to +70°C

• Operating Humidity: 5%–95% (non-condensing)

• Altitude: –60 m to +5000 m

• Atmospheric Pressure: 53–106 kPa

---

📡 Radio Specifications

• Antenna Type: Built-in smart antennas

• Antenna Gain:

  • 2.4 GHz: 4 dBi (combined 2 dBi)

  • 5 GHz: 5 dBi (combined 3 dBi)

• Max SSIDs per Radio: ≤ 6

• Device Capacity: ≤ 128 users (varies by environment)

• Max Transmit Power:

  • 2.4 GHz: 20 dBm

  • 5 GHz: 20 dBm

• Power Adjustment Increment: 1 dBm

• Max Non-overlapping Channels:

  • 2.4 GHz: up to 3 (depending on mode)

  • 5 GHz: up to 13 (20 MHz), 6 (40 MHz), 3 (80 MHz)

---

✅ Standards Compliance

• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax

• Security Standards: WPA, WPA2, WPA3, WAPI, 802.1X, AES, TKIP, WEP

• Safety Standards: UL/EN/IEC 60950-1, UL/EN/IEC 62368-1, GB 4943.1

• Radio Standards: ETSI EN 300 328, ETSI EN 301 893, AS/NZS 4268

• EMC Standards: EN 301 489-1/17, EN 55024, CISPR 32/35, etc.

• Environmental: RoHS, REACH, WEEE compliant

---

📦 Ordering Information

• Part Number: 50086473

• Model: eKitEngine AP361 Indoor AP

• Features: Supports Wi-Fi 6 (802.11ax), 2×2 dual bands, smart antennas
