Description
Technical Specifications:

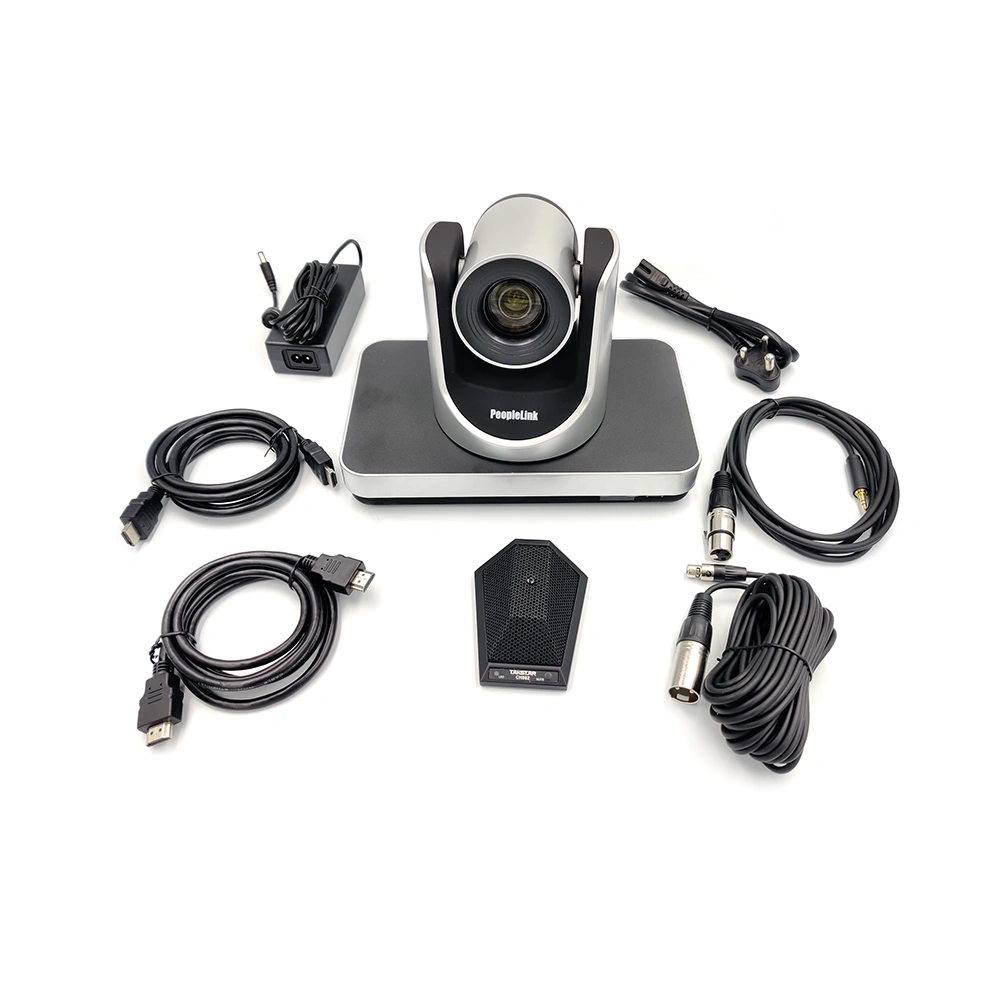

Package Includes:
1 x HD Codec Built-in 20x Zoom HD PTZ Camera
1 x Omni-array Microphone
1 x Remote Control
1 x AC Power Adapter
1 x AC Power Cable
2 x HDMI cable (1.5m)
1 x User Manual (Quick Start, Quick installation Guide)
1 x XLR jack to 3.5mm jack cable
Bandwidth:
IP: 64KBPS – 8MBPS
Standards & Protocols:
ITU-T H.323, IETF SIP
Video Standards And Protocols
H.261, H.263, H.263+, H.263++, H.264, H.264 SVC, H.264
High Profile
Audio Standards And Protocols:
G.711, G.722, G.722.1*, G.722.1C*, AAC-LD, G.723.1, G.726,
G.728, SILK
Dual Stream:
ITU-T H.239, BFCP
Other Standards
H.221, H.225, H.235, H.241, H.245, H.281, H.350, H.460,
T.140, DTMF
Network Standards And Protocols
TCP/IP, DHCP, SSH, HTTP, HTTPS with SSL/TLS, RTP,
RTCP, RFC3261, RFC3264, RFC2190, RFC3407, RFC2833,
RFC4585 (RTP/AVPF), SNTP, ARP
Video Resolution:
1080P (optional), Guaranty bandwidth : 512Kbps
720P, Guaranty bandwidth : 384Kbps
4SIF/4CIF, Guaranty bandwidth : 128Kbps
SIF/CIF/QSIF/QCIF/SQSIF/SQCIF, Guaranty
bandwidth: 64Kbps
Content Video Resolution
Input Resolutions:
VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768),
WXGA (1280 x 768 & 1280 x 800), 1280 x 960,
SXGA (1280 x 1024), 1360 x 768, 1366 x 768, 1440 x 900,
XGA+ (1400 x 1050), 1600 x 900, 1600 x 1200,
1680 x 1050, 720p (1280 x 720), 1080p (1920 x 1080)
Coding/Decoding Resolutions:
800 x 600, 1024 x 768, 1280 x 1024, 1280 x 720,
1920 x 1080 (optional)
Output:
800 x 600, 1024 x 768, 1280 x 1024, 1280 x 720,
1920 x 1080
Dual Stream:
Dual 720P（1080P optional）

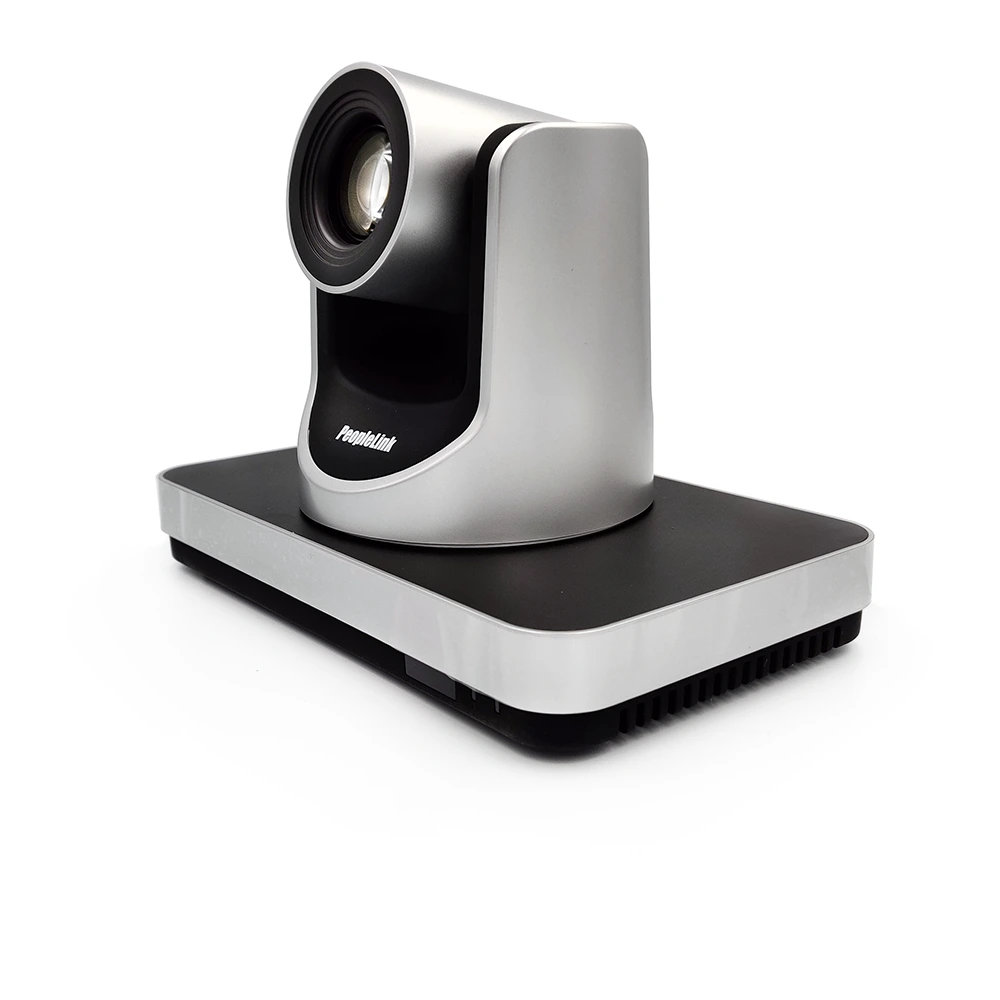

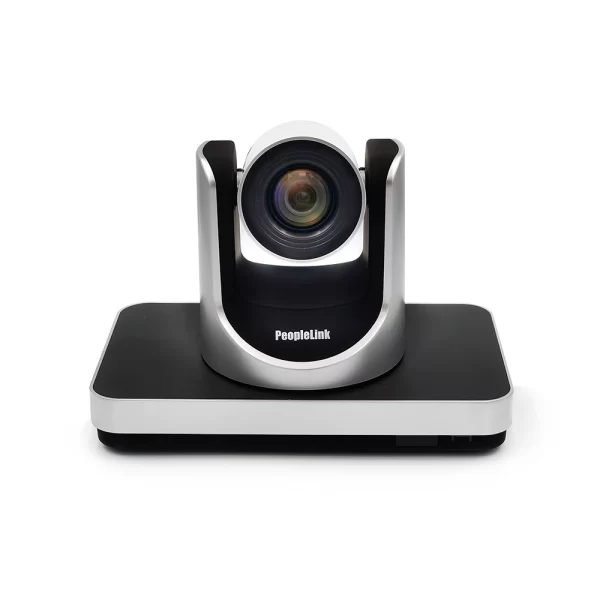

Built-in HD Camera:
Input: 720p (1080p optional)
Sensor: 2.07 million effective pixels, 1/2.7 inch CMOS
Lens: 20x optical zoom
Maximum horizontal viewing angle: 60.7 degrees
PTZ: horizontal +/-170 degrees, vertical -30~+90 degrees
Supports auto white balance, auto exposure, auto focus
Supports remote-camera control
Supports mirror/flip
10 presets
Other Video Features: PiP (Picture in Picture),
PoP (Picture outside Picture)
Other Video Features:
PiP (Picture in Picture), PoP (Picture outside Picture)
Audio Features:
AEC (Acoustic Echo Cancellation)
AGC (Automatic Gain Control)
ANS (Acoustic Noise Suppression)
Lip synchronization
Security And Stability
Network:
FEC (Forward Error Correction)
ARQ (Automatic Repeat-request) etc.
Security
H.235 (AES) signaling and media stream encryption
Administrator password, SSH/HTTPS
Firewall Traversal
H.460.18/19, H.460.23/24, ICE
Bandwidth
64kbps ~ 8Mbps

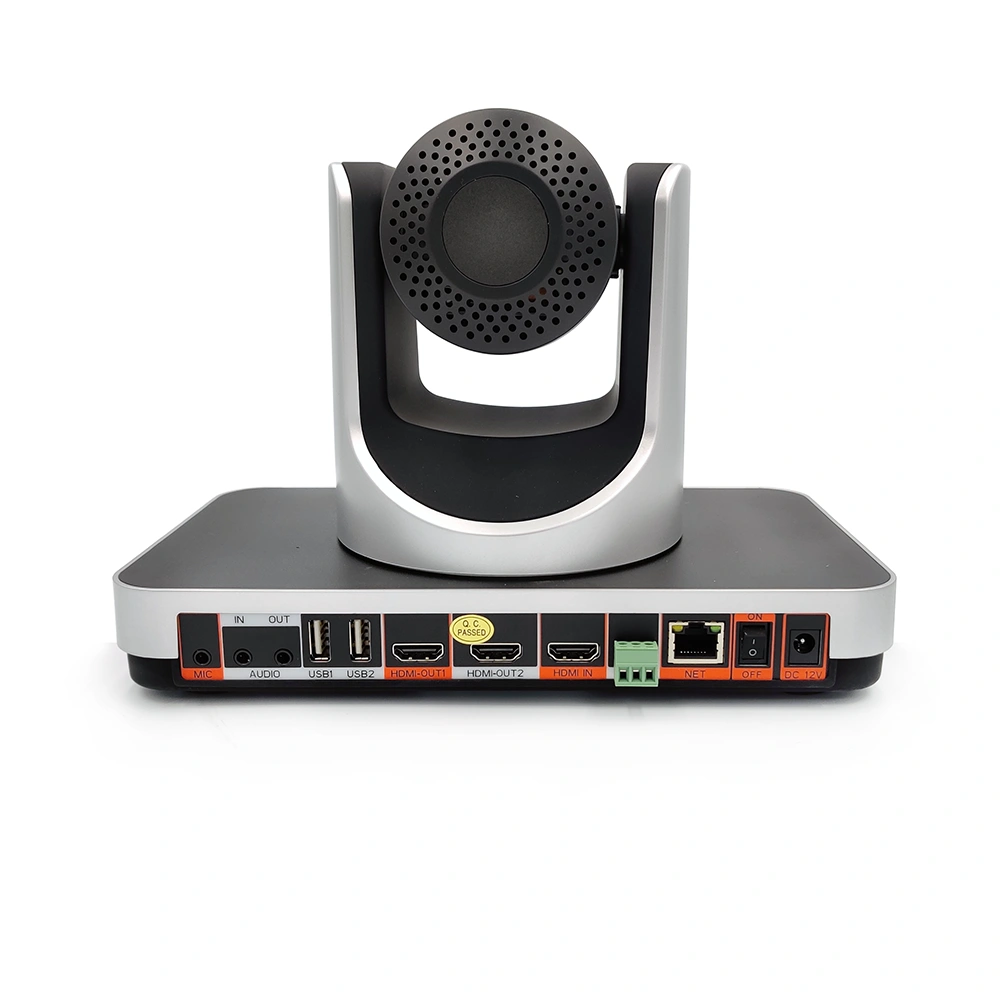

Interfaces
Audio Input : 1 x 3.5mm line-in jack,
1 x 3.5mm mic-in jack
Audio Output : 1 x 3.5mm line-out jack,
1 x HDMI audio output
Video Input : 1 x HDMI, 2 x Built-in Camera
Video Output : 2 x HDMI
Communication Interface : 1 x RS232: 3 pin Phenix jack
USB Interface : 2 x USB 2.0 Host (support USB flash disk,
USB microphone, etc.)
ZHI : 1 x RJ45 : 10/100 Base-T
Application Features:
Approval And Compliance :
1000 local address book
Recommended Luminance : > 300 lux
Special Features :
Audio associated with presentation
Support “SameView”
Timing power on and power off
Automatic standby and wake up on incoming call
Support DNS SRV
Incoming call password
Asymmetric bandwidth
Built-in VPN
Automatic to get static NAT address
PIP : 1/16 picture size, optional position
Split output : Bi-screen and tri-screen display
Network address book
Support SDK API
Bulit-in MCU (optional)
Support web-based conference management
Support USB micphone
Remote Control : H.224, H.281
Remote upgrade by network
Wi-Fi (optional)
Physical Characteristics
Dimensions:
Codec dimensions (L x W x H):
240mm x 144mm x 160mm
Package dimensions (L x W x H):
285mm x 235mm x 230mm
Net weight : 1.7Kg
Package weight : 2.5Kg
Electrical :
Working voltage : AC 100V ~ 240V, DC 12V
Working frequency : 50/60Hz
Power consumption : 18W
Environmental Specification :
Operating temperature : 0°C to 40ºC
Operating humidity : 10% to 80%
Non-Operating temperature : -40º to -70ºC
Non-Operating humidity (non-condensing) : 0% to
95%
Peripheral noise : < 46 dBA SPL
Lowest luminance : 5 lux
Recommended luminance : > 300 lux
Approval and Compliance :
CCC, CE, RoHS, WEEE, FCC
