InstaController ARSI-31074

Description

Technical Specifications

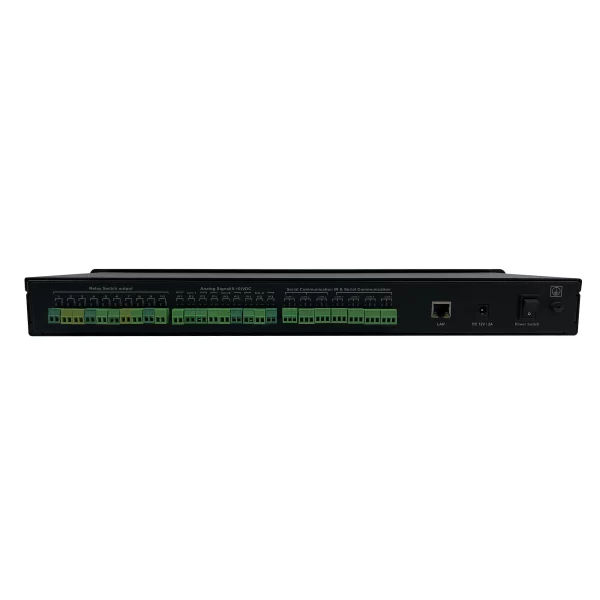

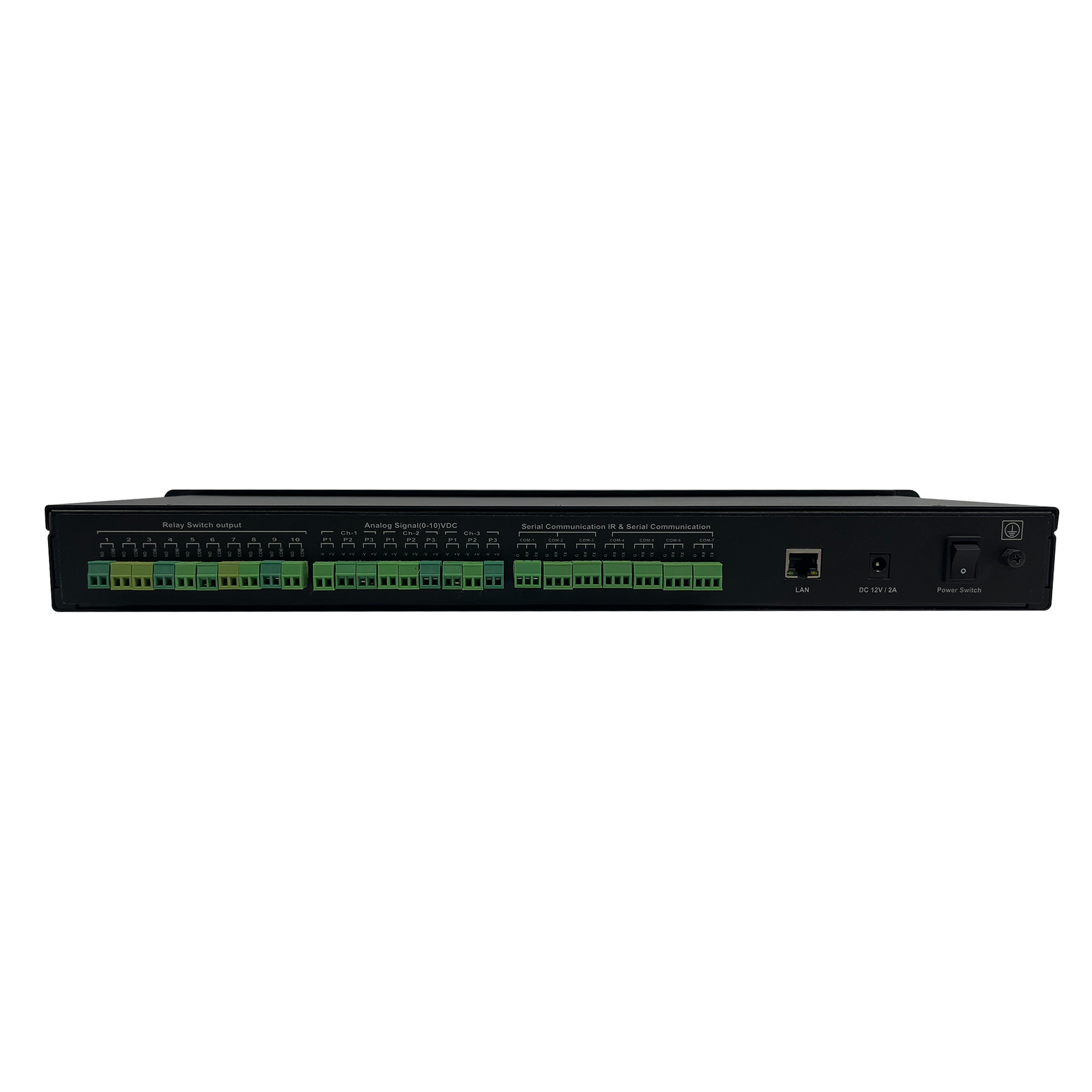

Connectors & Card Slots
Relay Switch Output : Total 10 blocks (1 to 10) on rear
panel with each 2-pin 3.81 mm detachable terminal;
Comprises normally open, Non-Isolated relays;
Rated 6 Amp, 230 Volts AC or 110 Volts DC max.
Analog Signal : Total 9 blocks (operated from 3 channels
Ch-1 to Ch-3) on rear panel with each 2-pin 3.81 mm
detachable terminal; Rated for 0-10 Volts DC, protected
to 10 Volts DC maximum, input impedance 10k Ohms
with pull-up resistor.
Serial Output : Total 3 blocks (COM-1 to COM-3) on rear
panel with each 3-pin 3.81 mm detachable terminal;
Bidirectional TTL/RS-232 (0-5 Volts) port with up to
115200 baud rate.
HW-R : One recessed push button for hardware reset
IR & Serial Output : Total 4 blocks (COM-4 to COM-7) on
rear panel with each 3-pin 3.81 mm detachable
terminal; Comprises IR/Serial output
ports; Bidirectional TTL/RS-232 (0-5 Volts) port with up to
115200 baud rate when configured as serial; One-way
IR output when configured as IR Emitter.
LAN : One 8-pin RJ45 jack on rear panel;
10Base-T/100Base-TX Ethernet port
TMP-R : One 3-pin 3.81mm detachable terminal on rear
panel for reading Temperature / Humidity
Power : One 2.1 mm DC power jack connector associated
with a Power Switch on rear panel; 12 Volt DC power
input and 2 Amp max current rating
Dimensions
Height : 44 mm .
Width : Without rack ears 444 mm, with rack ears 482 mm.
Depth : 185 mm

Communications
Ethernet : 10/100 Mbps
Full / Half Duplex
Industry-Standard TCP/IP stack IPv4
Analog : For one-way device control, 0-10 Volts DC
variable
Serial : For two-way device control and monitoring,
all ports support TTL/RS-232 (0-5 volts) up to 115200
baud rate.
IR & Serial : Supports one-way device control via Infrared
or two-way device control and monitoring via serial,
for serial all ports support TTL/RS-232 (0-5 volts)
up to 115200 baud rate

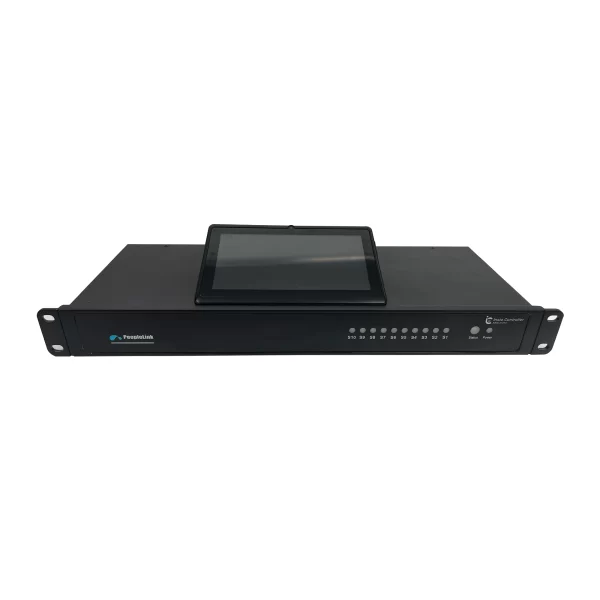

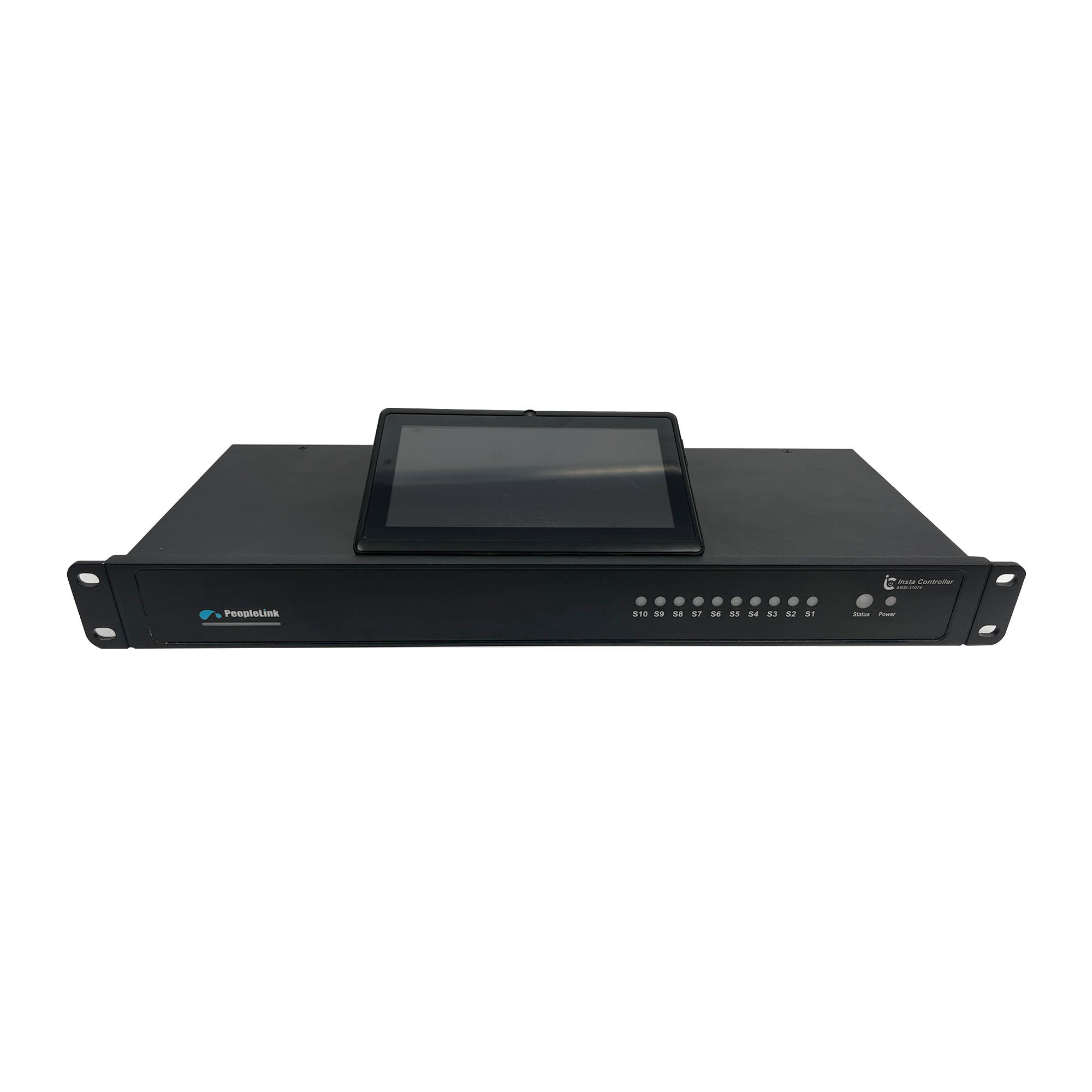

Indicators
Power Indicator : One RED LED on front panel,
indicates operating power supplied from power adaptor.
Status Indicator : One LED on front panel, turns to
RED while initializing the controller;
turns to Green only when the controller is ready to use.
Relay Switch Indicators : 10 Green LEDs on front panel,
indicates whether the corresponding Relay Switch is
turned on or off. Two LEDs on rear panel; Green LED
indicates Ethernet link status; Amber LED indicates
Ethernet activity.
Indicators
Operating Temperature : 50° to 113° F (10° to 45° C)
Humidity : RH Non-Condensing 15% to 85%.
Heat Dissipation : 45BTU/hr.

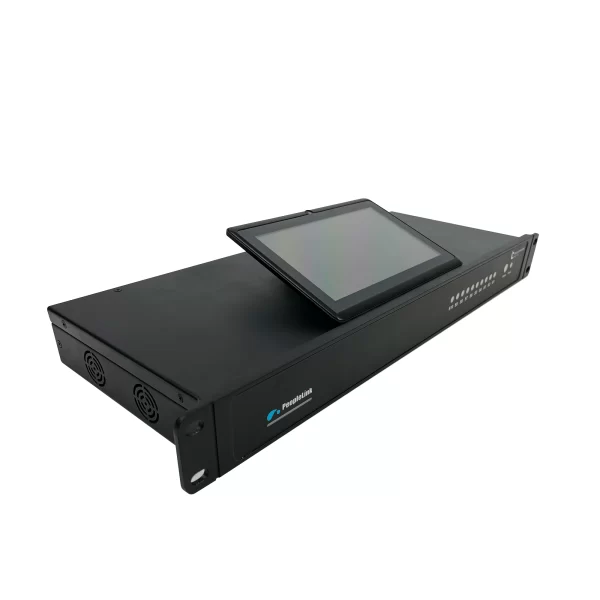

Enclosure
Chassis : Metal, black finish
Faceplate : Metal, black finish with white label
Mounting : Freestanding; 1U rack-mountable
(including rack ears)
