Model |
PA-410 |
Firewall Throughput (HTTP/appmix) |
1.7 Gbps / 1.3 Gbps |
Threat Prevention Throughput (HTTP/appmix) |
0.6 Gbps / 0.7 Gbps |
IPsec VPN Throughput |
0.93 Gbps |
Max Sessions |
64,000 |
New Sessions Per Second |
13,000 |
Interface Modes |
L2, L3, Tap, Virtual Wire (Transparent Mode) |
Routing |
OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, Static Routing |
Policy-based Forwarding |
Yes |
Point-to-Point Protocol (PPPoE) |
Yes |
Multicast |
PIM-SM, PIM-SSM, IGMP v1, v2, v3 |
SD-WAN |
Path quality measurement (jitter, packet loss, latency), Initial path selection (PBF), Dynamic path change |
IPv6 |
L2, L3, Tap, Virtual Wire (Transparent Mode) |
Features |
App-ID, User-ID, Content-ID, WildFire, SSL Decryption |
SLAAC |
Yes |
IPsec VPN |
Key exchange: manual key, IKEv1, IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |

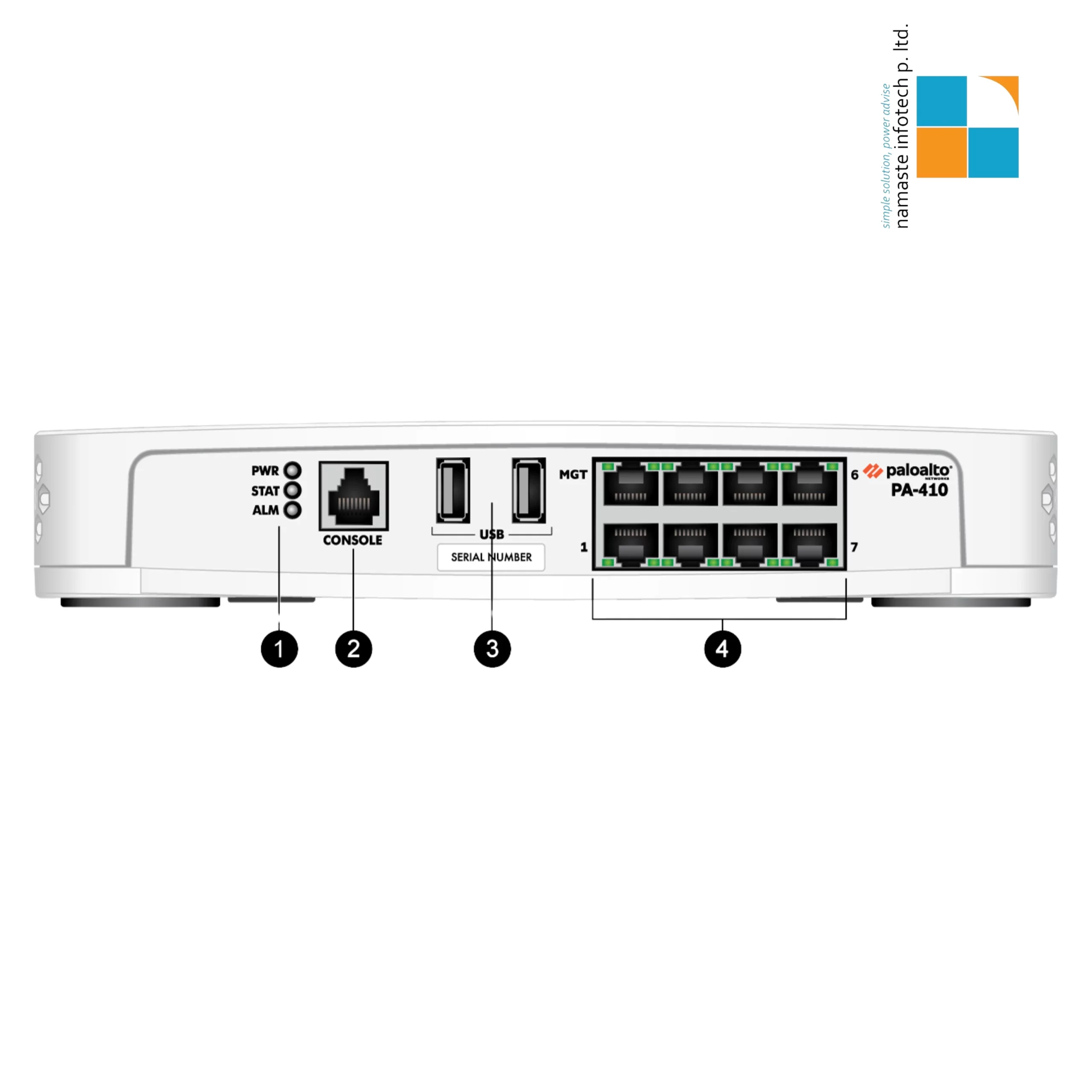

I/O Ports |
10/100/1000 (7) RJ45 |
Management I/O |
10/100/1000 Out-of-Band Management Port (1), RJ45 Console Port (1), USB Port (1), Micro USB Console Port (1) |
Storage Capacity |
64 GB eMMC |
Power Supply |
Avg Power Consumption: 17W / Max Power Consumption: 18W |
Max BTU/HR |
78 |
Input Voltage |
100–240 VAC (50–60 Hz) |
Max Current Consumption |
1.5 A @ 12 VDC |
Max Inrush Current |
2.1 A |
Dimensions |
1.63″ H x 6.42″ D x 9.53″ W |
Weight (Standalone/As Shipped) |
3.1 lbs / 5.9 lbs |
Safety |
cTUVus, CB |
EMI |
FCC Class B, CE Class B, VCCI Class B |
Operating Temperature |
32° to 104° F (0° to 40° C) |
Non-Operating Temperature |
-4° to 158° F (-20° to 70° C) |
Cooling |
Passive Cooling |
