Description
General Specifications

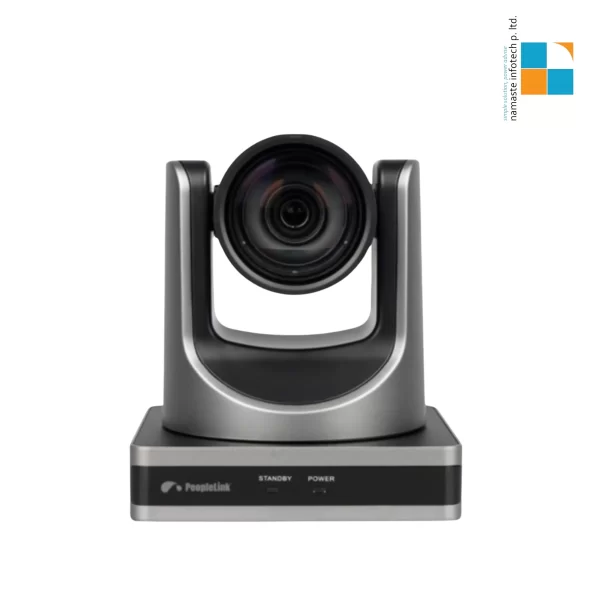

Camera
Sensor : 1/2.8 inches, CMOS, Effective Pixels 8.42MP
Zoom : 20x Optical Zoom, 16x Digital Zoom
Lens : 20x, f3.47mm ~ 41,65mm, F1.84 ~ F3.72
Diagonal field of view : 66.6°
Video Format : YUY2: Max. 1080P30; MJPEG: Max. 2160P30; H.264 AVC: Max. 2160P30
Signal System : 4KP30, 4KP25, 1080P30, 1080P25
Scanning Mode : Progressive
Minimum Illumination : 0.5Lux @ (F1.8, AGC ON)
Shutter : 1/30 ~ 1/10000s
White Balance : Auto, Indoor, Outdoor, One Push, Manual VAR
Backlight Compensation : Support
DNS : 2D & 3D Digital Noise Reduction
SNR : ≥ 55dB
Pan Angle : ± 170°
Tilt Angle : -30° ~ +90°
Pan Speed : 2.7° ~ 35.7°/s
Tilt Speed : 2.7°~ 31.5°/s
Image Flip : Support
Preset Position : 255
Preset Accuracy : 0.1°
Network
Video Compression : H.264/MJPEG
Video Stream : First Stream, Second
Stream
First Stream Resolution : 3840×2160, 1920×1080, 1280×720
Second Stream Resolution : 1920×1080, 1280×720, 1024×576
Video Bit Rate : 32kbps ~ 20480kbps
Bit Rate Control : VBR, CBR
Frame Rate : 50Hz : 1fps ~ 25fps, 60Hz:
1fps ~ 30fps
Audio Compression : AAC
Audio Bit Rate : 96Kbps, 128Kbps, 256Kbps
Protocols : NDI®IHX2, TCP/IP, HTTP, RTSP, RTMP(s), Onvif , DHCP, SRT, GB/T 28181, Multicast. USB
Operating System Supported : Windows 7(onlysupports UVC1.1 features), Windows 8 andaboveversions, macOS 10.5 and above version, Linux2.4.6and above version, Android needs to includetheversion of UVC-related Drivers
USB Video : Support
Color System / Compression : YUY2 / MJPEG/H.264USB Video Communication Protocol : UVC1.1~1.5UVC PTZ Control : Support
General

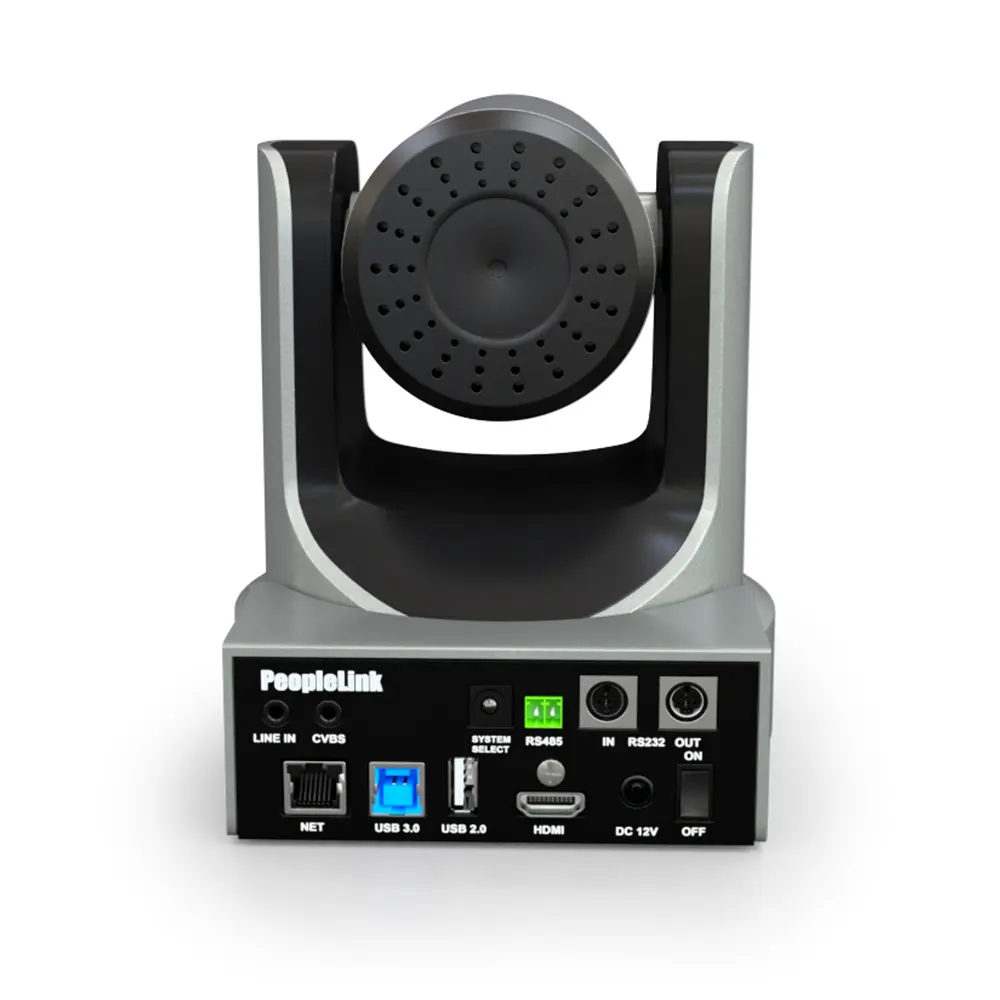

USB Interfaces : 1x USB 3.0 Type-C
HD Output : 1x HDMI 1.4b
Network Interface : 1x RJ45 10M/100M/1000Madaptive Ethernet
Audio Interface : 1x LINE IN 3.5mmJack
Control Interface : 1 x RS485 IN(Optional): 2pinphoenix port, Max Distance: 1200m, Protocol: VISCA/Pelco-D / Pelco-P 1 x RS232 IN: 8pin Mini DIN, MaxDistance: 30m, Protocol: VISCA / Pelco-D/ Pelco-P. Power Interface : JEITA Type (DC IN12V)
Input Voltage : DC 12V / PoE (802.3af)
Input Current : 12V 1.0A (Max)
Operating Temperature : -10°C ~ 40°CStorage Temperature : -40°C ~ 60°C
Power Consumption : 12W (Max)
Power Interface : JEITA Type (DC IN 12V)
Input Voltage : DC 12V / PoE (802.3af)
Input Current : 12V 1.0A (Max)
Operating Temperature : -10°C ~ 40°C
Storage Temperature : -40°C ~ 60°C
Dimensions
Length (L) : 144 mm
Height (H) : 173.4 mm
Depth (D) : 144 mm
Net Weight : 1.41kg
