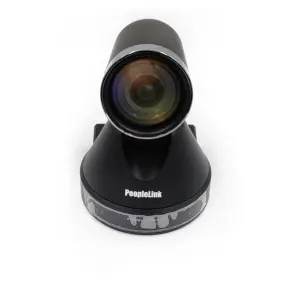

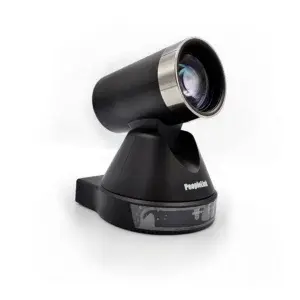

PeopleLink iCam WHD 1080 12X USB

PeopleLink iCam WHD 1080 are cameras for board rooms
offering easy connectivity with laptops/PCs through USB
ports. The pan/tilt features present in the devices allow
for wider angle coverage. HD video quality with real-time,
face-to-face experience through the powerful 12x optical
zoom is another unique offering of these cameras. They
can adjust the brightness automatically according to the
room’s lighting condition, ensuring clear video.

Key Features

● True HD 1080p @ 60 FPS: This camera
offers recordings with very vivid clarity (True
HD) at a resolution of 1080p @ 60 frames
per second (FPS)
● 12x Optical zoom: Optical zoom lens
produces much better-quality images than
digital zoom, which performs in-camera
image processing
● FOV 72.5º: The camera has a wide field of
view (FOV), the area covered by the camera,
of 72.5º
● Pan tilt zoom: Pan-tilt-zoom (PTZ) type of
cameras enable the user to control the
movement and position of the lens.
Panning refers to the len’s horizontal
movement while tilting describes its vertical
movement
● IR remote controllable: Remotes with
infrared light can be used to reliably control
this camera
● RS – 232: RS – 232 / VISCA to control the
PTZ functions of the camera remotelyPower Consumption : 12W (Max)
MTBF : >30000h
Size : 128.5x118x156.2mm
Net Weight : 0.91K g

SKU: PPU-PVC-PC3-108P-12X Categories: , , Tags: , , , , , , , , , , Brand:

Description

General Specifications

Camera
Video System : 1080p/60, 720p/60
Sensor : 1/2.7”, CMOS
Effective Pixel: 2.07M
Scanning Mode : Progressive
Focal length : -3.5 mm ~ 42.3mm, F1.8 ~ F2.8
Optical Zoom : 12x
Digital Zoom : 16x
Auto Gain Control : Supports
Shutter : 1/30s ~ 1/10000s
Minimal Illumination : 0.5 Lux @ (F1.8, AGC
ON)
White Balance : Auto, Indoor, Outdoor,
One Push, Manual
Backlight Compensation : support
Digital Noise Reduction : 2D&3D Digital Noise
Reduction
Video S/N : ≥55dB
Horizontal Angle of View : 72.5° ~ 6.9°
Vertical Angle of View : 44.8° ~ 3.9°
Horizontal Rotation Range : ±170°
Vertical Rotation Range : -30° ~ +30°
Pan Speed Range : 1.7° ~ 100°/s
Tilt Speed Range : 0.7° ~ 28°/s
H & V Flip : Support
Image Freeze : Support
Number of Preset : 255
Preset Accuracy : 0.1°

USB Features
Operate System : Windows 7, Windows 8, Windows 10
Mac OS X, Linux
Color System / Compression : YUV 4:2:2 / H.264 / MJPEG
Video Format : USB3.0: 1080p/60, 1080p/50, 1080p/30,
1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 USB2.0:
1080p/30, 1080p/25, 1080p/15, 1080p/10, 720p/30, 720p/25,
960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50
Audio on USB : Support
USB Video Communication Protocol : UVC 1.0 ~ UVC 1.5
UVC PTZ : Support

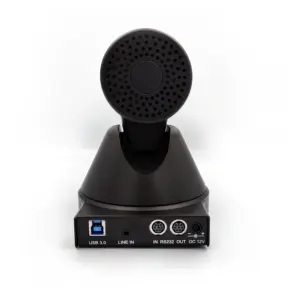

Input/Output Interface
USB Interface : 1xUSB3.0: Type B female jack
Audio Interface : 1-ch: 3.5mm Audio Interface, Line In
Communication
Interface
: 1xRS232 Out: 8pin Min DIN,
Max Distance: 30m, Protocol: VISCA
network use only
: 1xRS485: Share with RS232 Out,
Max Distance: 1200m,
Protocol: VISCA / Pelco-D / Pelco-P
Power Jack : JEITA type (DC IN 12V)
Generic Specifications
Input Voltage : DC 12V
Current Consumption : 1.0A (Max)
Operating Temperature : -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature : -40°C ~ 60°C (-40°F ~ 140°F)

–

Download Product Datasheet

https://www.peoplelinkvc.com/wp-content/uploads/2023/03/iCam-WHD-12X-Camera-2024.pdf

–

Additional information

Dimensions 128.5 × 118 × 156.2 cm
