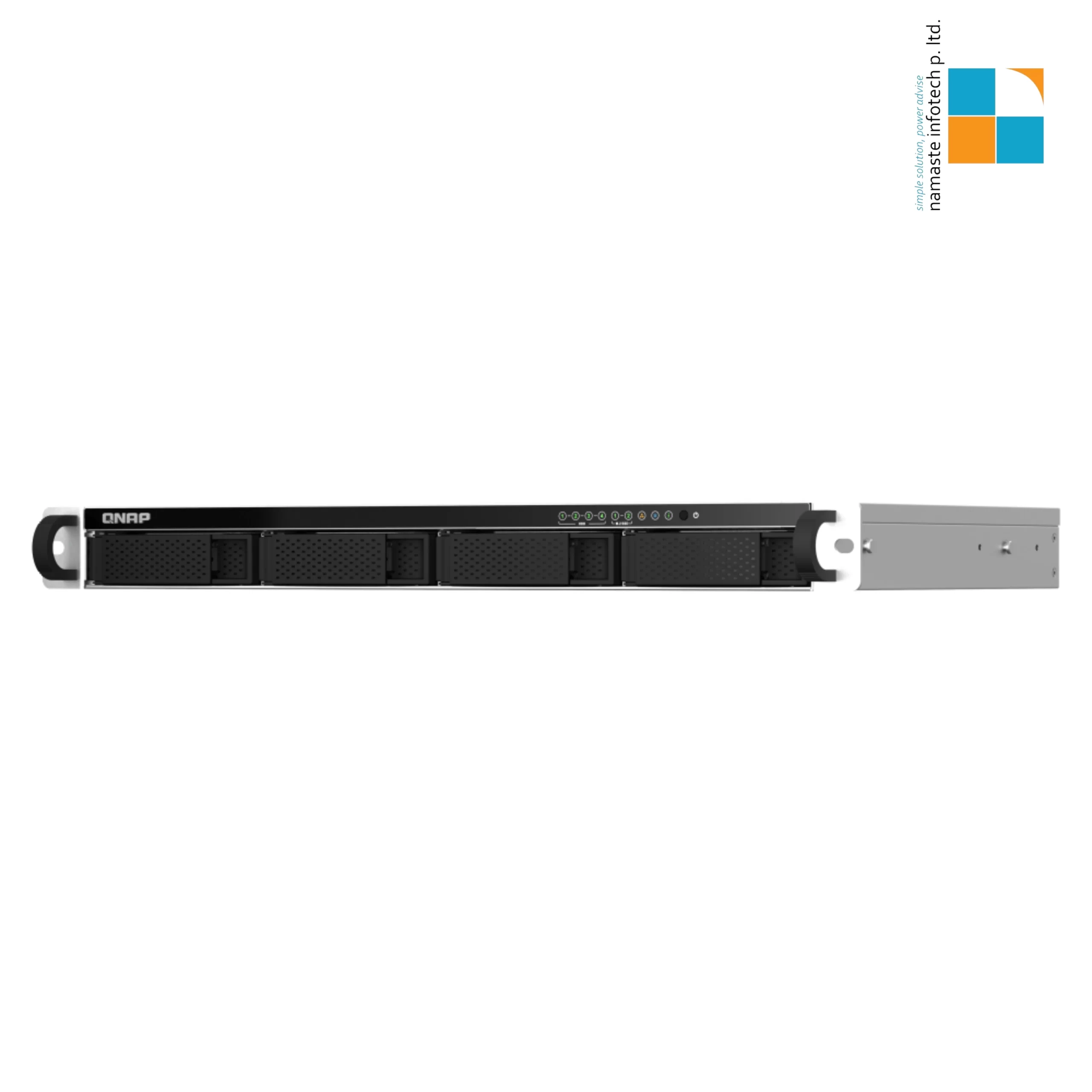

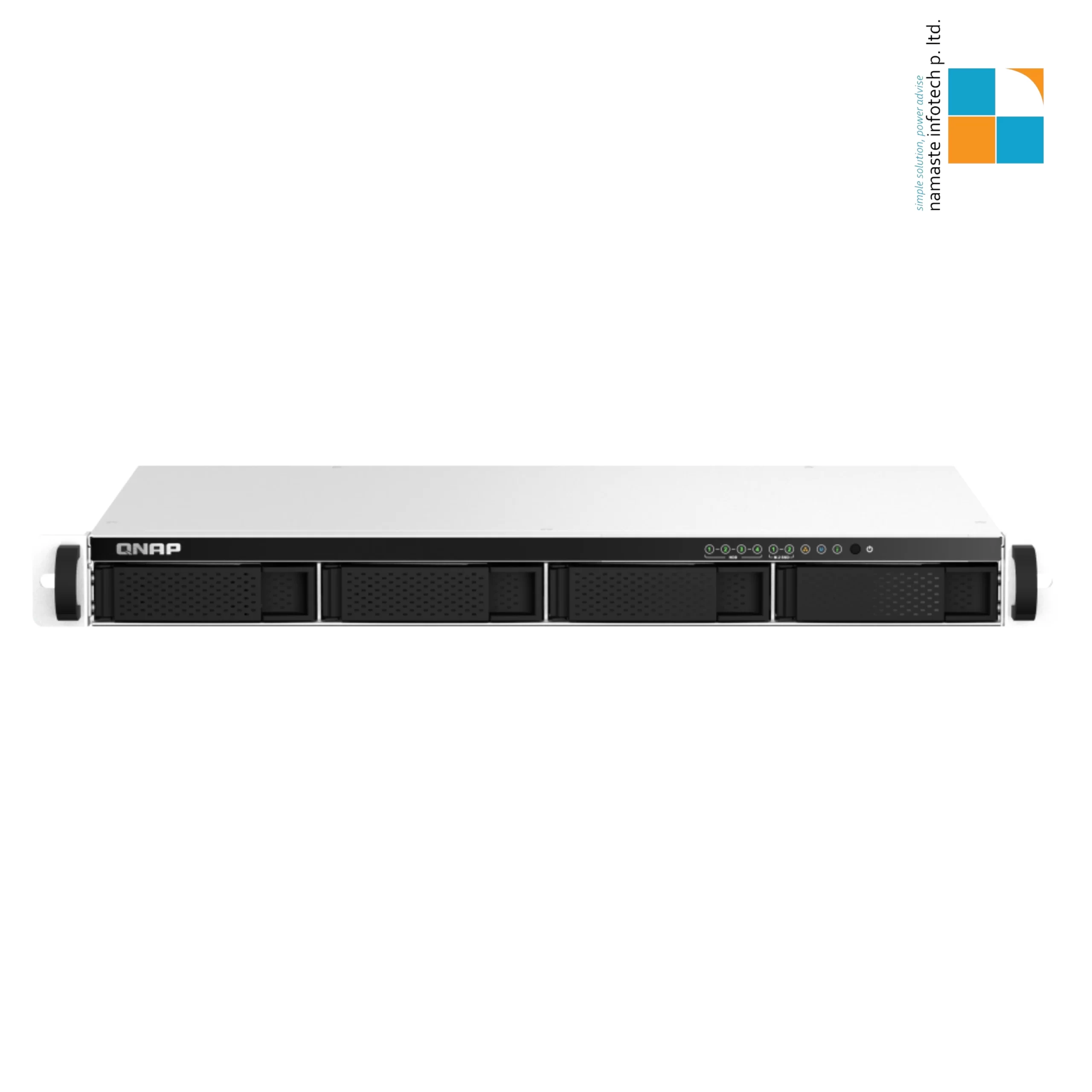

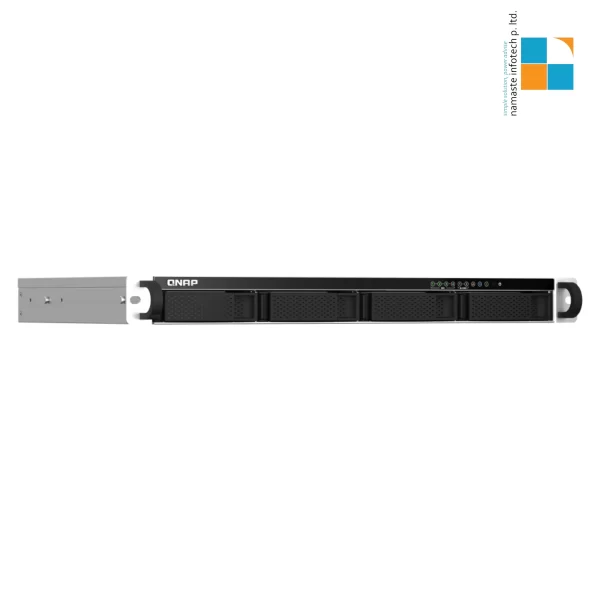

TS-464eU-8G – Specifications
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | ✅ |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | ✅ |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB)
Since 2024/01
|
| Maximum Memory | 16 GB (2 x 8GB) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
|
| SSD Cache Acceleration Support | ✅ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| Wake on LAN (WOL) | ✅ |
| Jumbo Frame | ✅ |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen 2 |
| HDMI™ Output | 1, HDMI™ 1.4b |
| Form Factor | 1U Short Depth Rackmount |
| LED Indicators | Power/Status, LAN, USB, HDD1-4, M.2 SSD 1-2 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 430 × 292.1 mm |
| Weight (Net) | 4.96 kg |
| Weight (Gross) | 5.9 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 100W PSU, 100-240V |
| Power Consumption: Disk Standby Mode | 21.105 |
| Power Consumption: Operating Mode, Typical | 35.297 W
Tested with drives fully populated.
|
| Fan | 3 x 40mm |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1500 |
