Description
Physical Specifications
| Category | Specification |
|---|---|
| Mounting | Rackmount kit available (to be ordered separately) |

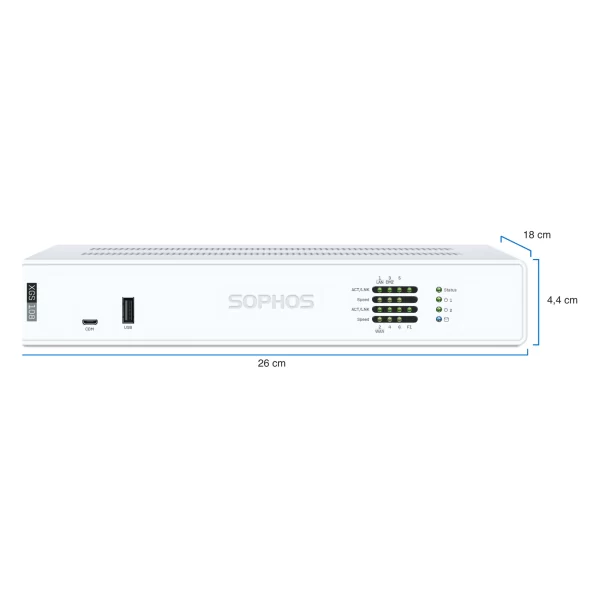

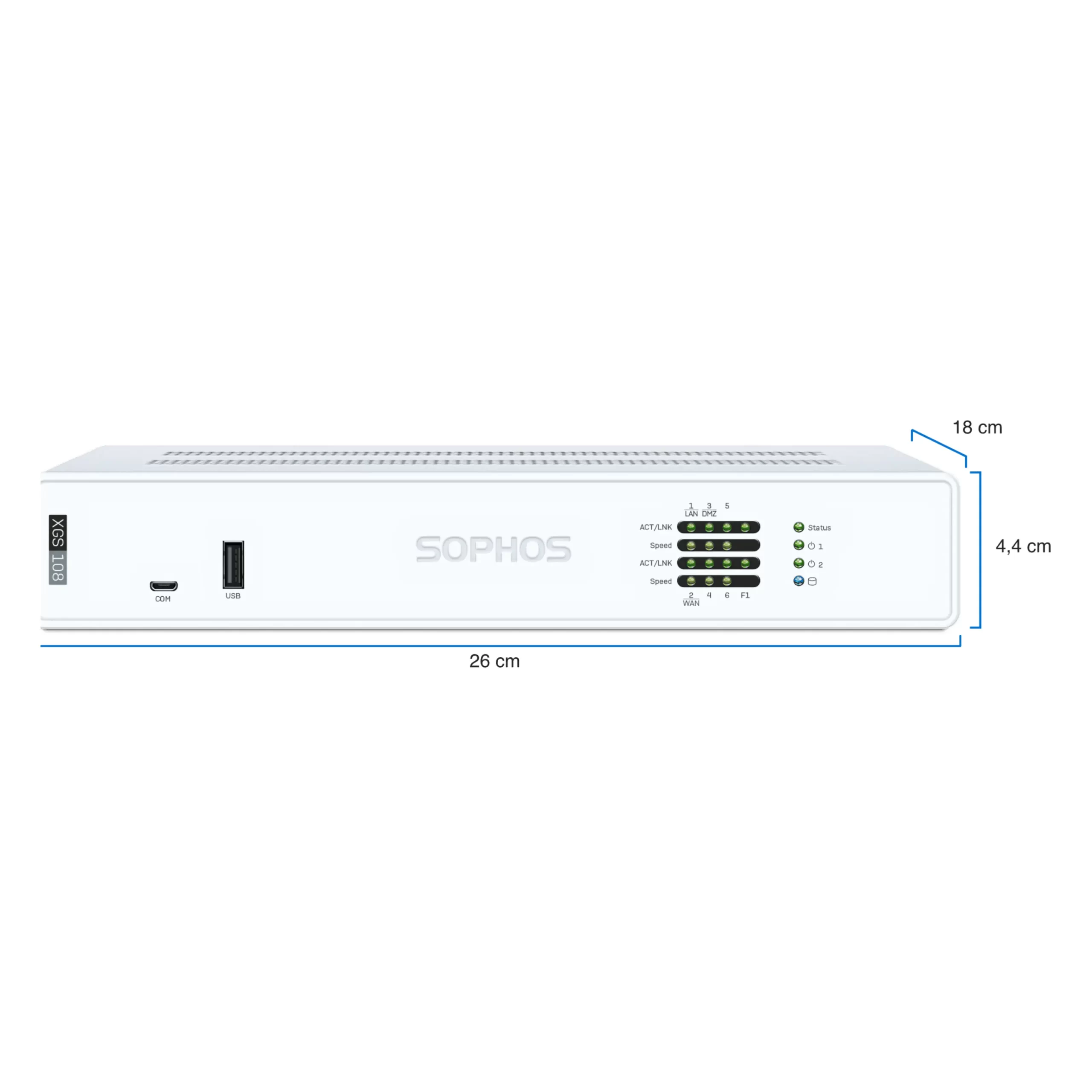

| Dimensions | Width × Height × Depth: 260 × 44 × 180 mm |
| Weight (unpacked) | 1.8 kg / 3.97 lbs |
| Weight (packed) | 2.4 kg / 5.29 lbs (w-model minimally more) |
| Power Supply | External auto-ranging AC-DC, 100-240VAC, 2A@50-60 Hz, 12VDC, 5A, 60W |
| Redundant Power Supply | Optional second redundant power supply |
| Power Consumption | 21.5 W / 73.36 BTU/hr (108 idle), 25.5 W / 87.01 BTU/hr (108w idle), 27 W / 92.13 BTU/hr (108 max.), 30 W / 102.36 BTU/hr (108w max.) |
| Noise Level (avg.) | 0 dBA – fanless |
| Operating Temperature | 0°C to 40°C (operating) |
| Storage Temperature | -20°C to +70°C |
| Humidity | 10% to 90%, non-condensing |
| Certifications | CB, CE, UKCA, UL, FCC, ISED, VCCI, KC*, BSMI, RCM, NOM, Anatel*, TEC |
Performance (XGS 108)
| Category | Specification |
|---|---|
| Model | XGS 108 |
| Firewall Throughput | 12,500 Mbps |
| Firewall IMIX | 8,100 Mbps |
| IPS Throughput | 2,500 Mbps |
| Threat Protection Throughput | 2,500 Mbps |
| NGFW Throughput | 2,600 Mbps |
| Concurrent Connections | 4,190,000 |
| New Connections per Second | 53,000 |
| IPsec VPN Throughput | 8,250 Mbps |
| SSL VPN Concurrent Tunnels | 1,000 |
| IPsec VPN Concurrent Tunnels | 1,000 |
| Xstream SSL/TLS Inspection | 800 Mbps |
| Xstream SSL/TLS Concurrent Connections | 12,288 |
Physical Interfaces
| Category | Specification |
|---|---|
| Storage (local quarantine/logs) | 64 GB UFS 2.1 |

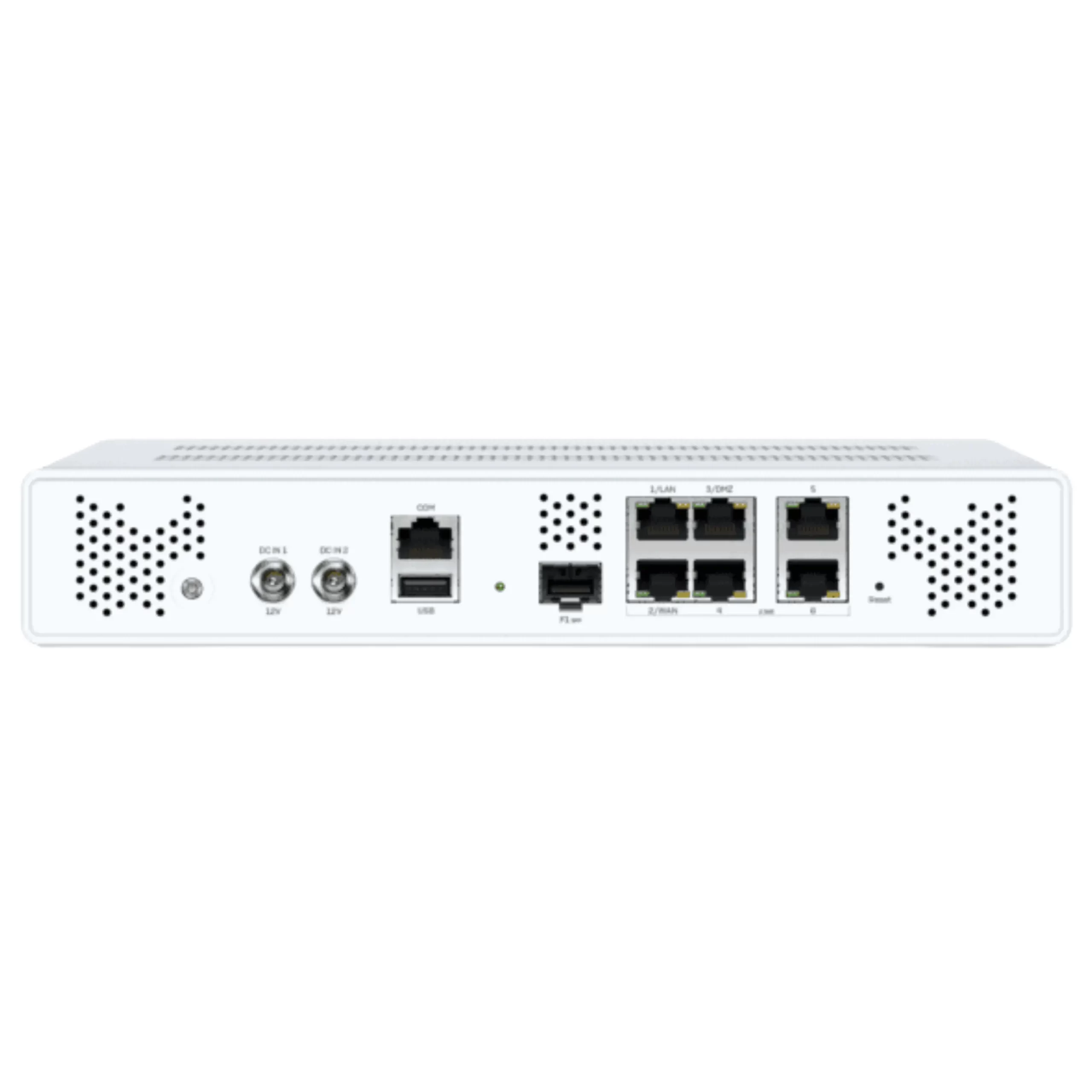

| Ethernet Interfaces (fixed) | 6 × 2.5 GE copper, 1 × SFP fiber |
| Management Ports | 1 × COM RJ45, 1 × Micro-USB (cable included) |
| Other I/O Ports | 1 × USB 2.0 (front), 1 × USB 3.0 (rear) |
| Number of Expansion Slots | 0 |
| Optional Add-on Connectivity | n/a |
