Description
Detailed Specifications
General

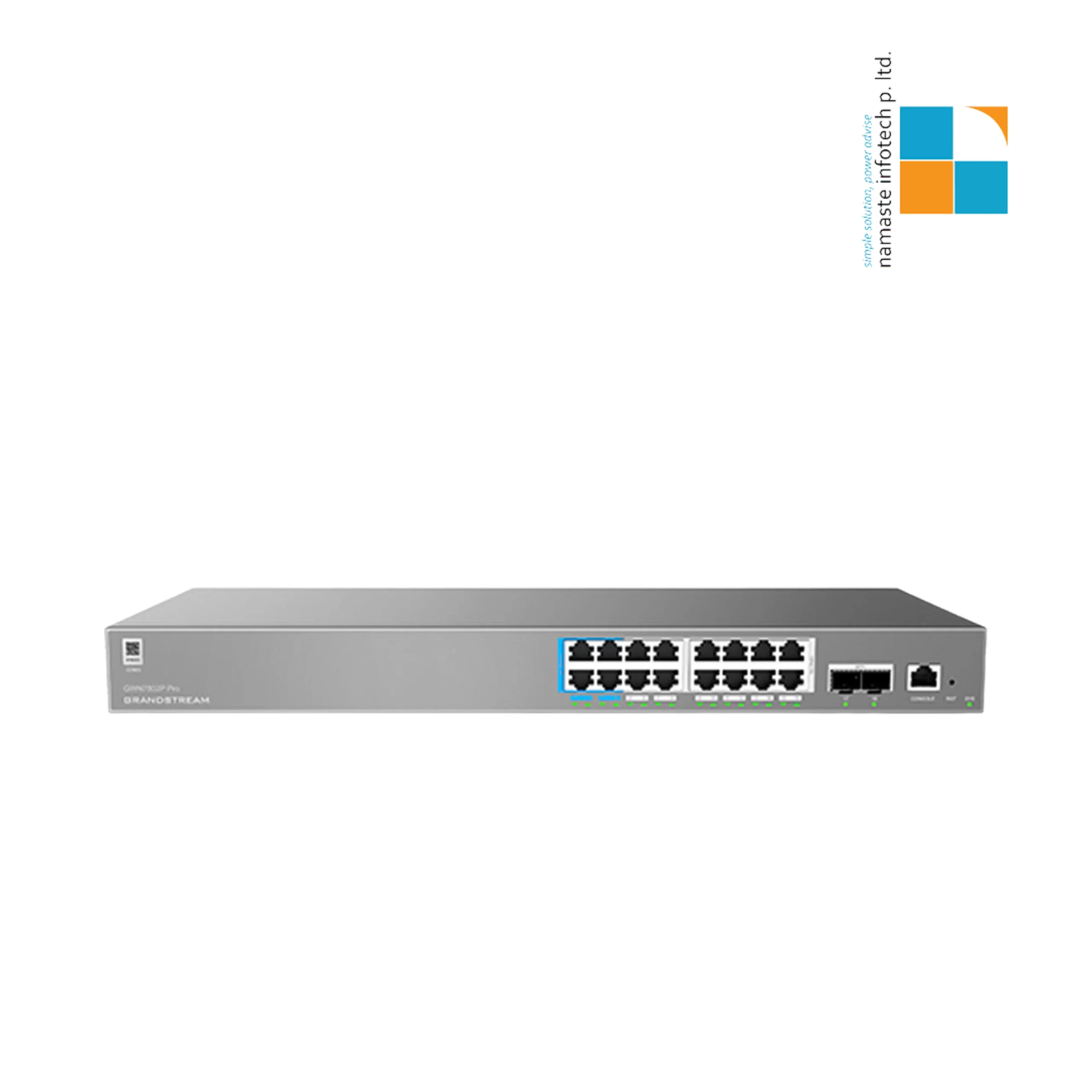

- Model: GWN7802P Pro
- Series: GWN7800 Pro Series
- Switch Type: Layer 2++ Managed Switch
- Form Factor: Rack Mountable
- Management: Web UI, CLI, GDMS Networking (Cloud), GWN Manager, GWN Routers
- Networking Support: IPv4 & IPv6
Ports & Interfaces
- 16 × Gigabit RJ45 Ethernet Ports
- 16 × PoE++ (802.3bt Type 3) Ports
- 2 × 10 Gigabit SFP+ Uplink Ports
- 1 × RJ45 Console Port
PoE Features
- PoE Standards: IEEE 802.3af/at/bt
- Maximum PoE Output: Up to 60W per port
- Total PoE Budget: 250W
- Smart Dynamic PoE Power Allocation
Performance
- Switching Capacity: 72 Gbps
- Non-Blocking Throughput: 36 Gbps
- Forwarding Rate: 53.57 Mpps
- Packet Buffer: 8.4 MB
- MAC Address Table: 16K Entries
- Jumbo Frame Support: Up to 12,288 Bytes
Network Features
- VLAN Support
- Link Aggregation
- IGMP/MLD Snooping
- QoS Traffic Prioritization
- DHCP Server
- Port Mirroring
- Storm Control
- Auto-MDI/MDIX
- IPv4 & IPv6 Support
Security Features
- ARP Inspection
- IP Source Guard
- DHCP Snooping
- Port Security
- DoS Attack Protection
- RADIUS Authentication
- MAC Filtering
Hardware
- CPU: Single-Core MIPS Processor
- Memory: 256 MB RAM
- Flash Storage: 32 MB
- Cooling: Intelligent Fan Cooling System
Physical & Power
- Dimensions: 440 × 200 × 44 mm
- Weight: 2.9 kg
- Power Input: 100–240V AC, 50/60Hz
- Maximum Power Consumption: 294.4W
- Operating Temperature: 0°C to 45°C
