Detailed Specifications
General

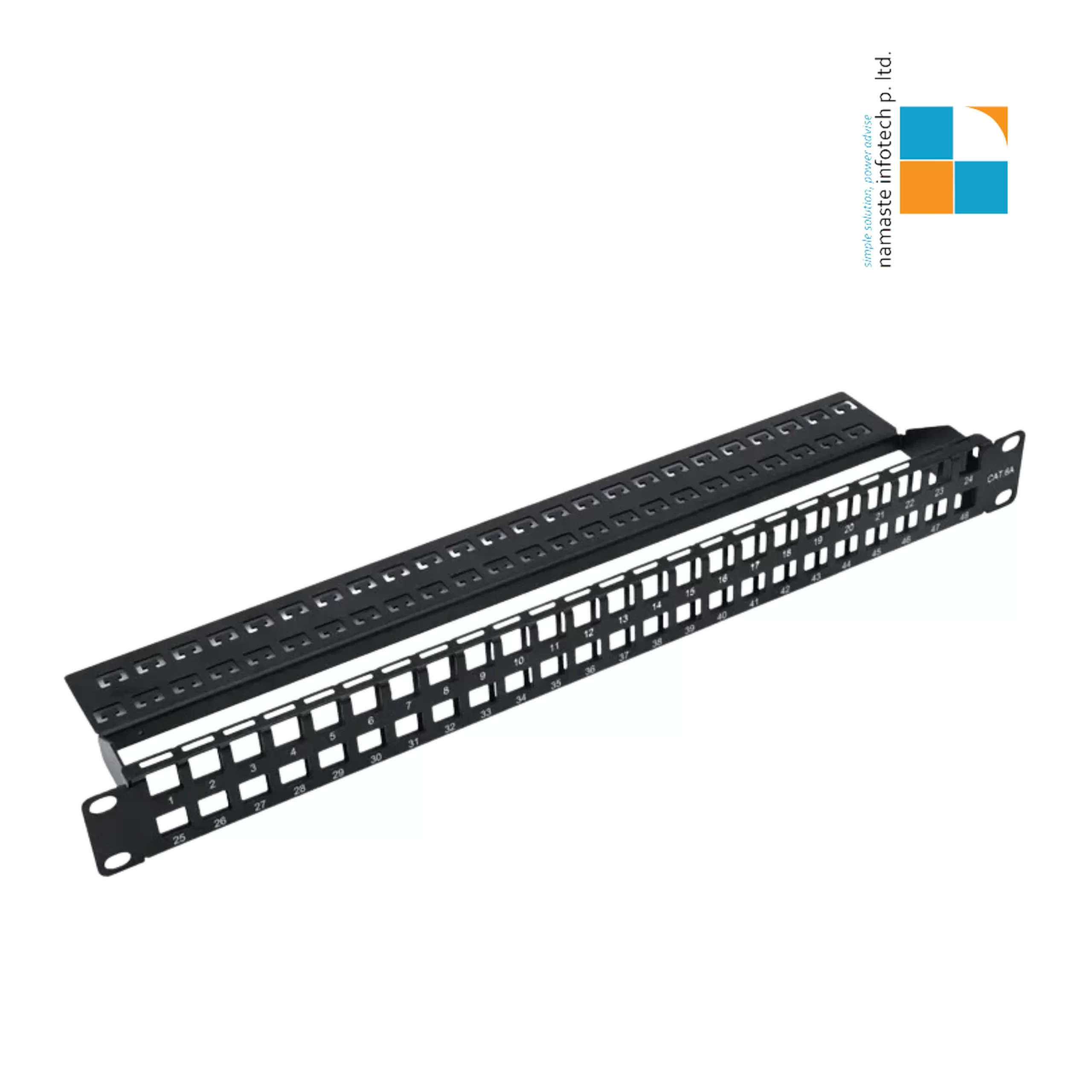

- Product Type: RJ45 Network Patch Panel
- Port Capacity: 48 Ports
- Form Factor: 1U Rack Mount
- Rack Compatibility: Standard 19-inch Rack/Cabinet
- Network Category Support: Cat6, Cat5e, Cat5
- Installation Type: Horizontal Rack Mount
- Application: Structured Cabling Systems
Connectivity
- Connector Type: RJ45 Female Ports
- Number of Ports: 48
- Wiring Standards: T568A / T568B
- Ethernet Support: Gigabit Ethernet (1000Base-T)
- Backward Compatibility: Cat5e and Cat5 Networks
- Cable Support: 23–26 AWG Twisted Pair Cables
Construction
- Material: High-Grade Cold-Rolled Steel
- Housing Design: High-Density Compact Structure
- Finish: Corrosion-Resistant Industrial Coating
- Height: 44.5 mm (1U)
- Mounting Method: Rack-Mounted
Cable Management
- Integrated Rear Cable Management Bar
- Organized Cable Routing and Strain Relief
- Improved Airflow Management
- Simplified Maintenance and Troubleshooting
- Pre-Labeled Port Identification
Electrical Performance
- Supports Category 6 Transmission Standards
- High-Speed Gigabit Data Transmission
- Balanced PCB Design for Reduced Crosstalk
- Enhanced Signal Integrity
- Low Insertion Loss and Interference
IDC & Contact System
- IDC Terminals Suitable for 23–26 AWG Cables
- Phosphor Bronze IDC Contacts
- 50μm Gold-Plated Contact Pins
- Contact Durability: Up to 1000 Mating Cycles
- Clear Color-Coded Wiring Labels
Features
- High-Density 48-Port Design in 1U Space
- Space-Saving Rack Optimization
- Easy Installation and Expansion
- DIY-Friendly Modular Structure
- Suitable for Large-Scale Network Deployments
- Reliable Long-Term Network Performance
Applications
- Data Centers
- Server Rooms
- Enterprise Networks
- Telecommunications Rooms
- Campus Networks
- Network Distribution Frames
- Commercial Office Infrastructure
