Description
Detailed Specifications
Physical Structure

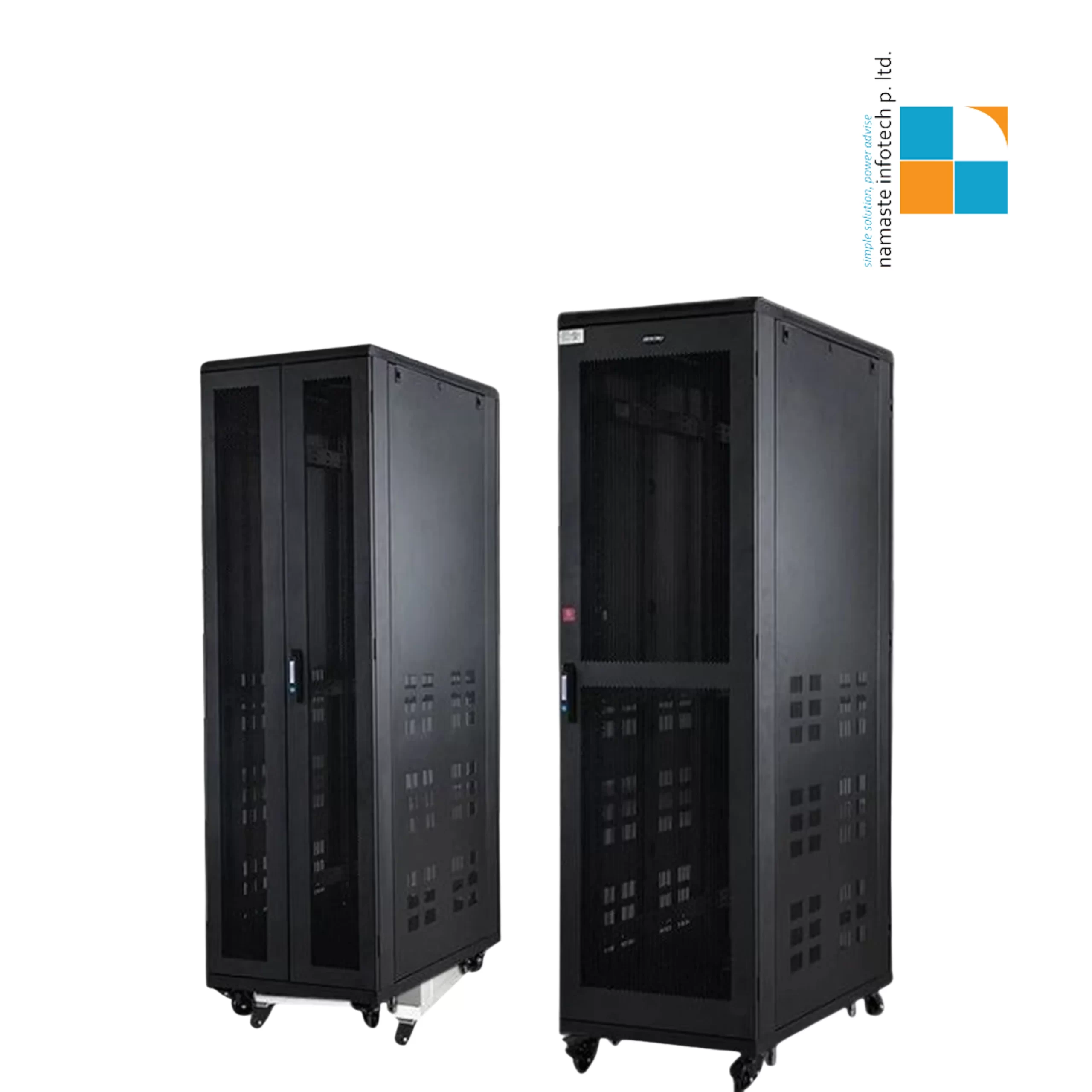

- Type: Floor standing / free-standing data center cabinet
- Rack Units: 42U
- Dimensions: 600 mm (W) × 1000 mm (D)
- Standard compliance: 19-inch EIA-310 rack standard
- Material: High-quality cold rolled steel (SPCC)
- Finish: Anti-corrosion powder-coated (black, RAL 9004/9005)
- Enclosure type: Fully enclosed server rack cabinet
Design & Construction
- Heavy-duty welded / modular frame construction
- Removable side panels for maintenance access
- Lockable front and rear doors
- Adjustable vertical mounting rails (front & rear)
- Numbered U-marking for precise equipment installation
- Reinforced structure for high load stability
Load Capacity
- Static load capacity: up to 800–1000 kg (model dependent)
- Suitable for:
- Rack servers
- Network switches
- Patch panels
- Storage systems (SAN/NAS)
- UPS and power modules
Cooling & Ventilation
- Perforated / mesh front and rear doors for airflow
- Optional top-mounted fan tray support
- Passive airflow design optimized for hot/cold air circulation
- Side ventilation structure for heat dissipation
Cable Management System
- Top and bottom cable entry points
- Cable routing channels for structured wiring
- Vertical cable organizers (optional support)
- Supports high-density cabling environments
Security Features
- Lockable steel front door
- Lockable rear door system
- Lockable removable side panels
- Secure enclosure for enterprise IT hardware
Applications
- Data centers
- Enterprise server rooms
- Telecom infrastructure
- Cloud hosting environments
- Network operation centers (NOC)
- CCTV and surveillance control systems
