Description
Detailed Specifications
Physical Specifications
- Product Type: Cat6 Outdoor Network Cable
- Cable Category: Category 6 (Cat6)
- Installation Type: Outdoor
- Cable Length: 305m Pull Box / Drum
- Jacket Material: UV-Resistant Polyethylene (PE)
- Cable Color: Black
- Cable Diameter: Approximately 6.0–6.5 mm
- Weatherproof Construction for Outdoor Use
Conductor Specifications
- Conductor Material: 99.99% Pure Bare Copper
- Conductor Size: 23 AWG
- Number of Conductors: 8 Conductors
- Pair Configuration: 4 Twisted Pairs
- Core Type: Solid Copper
- Insulation Material: High-Density Polyethylene (HDPE)
Network Performance
- Category Standard: Cat6
- Bandwidth Capacity: Up to 250 MHz
- Data Transmission Speed: Up to 1 Gbps
- Supports:
- 10Base-T
- 100Base-TX
- 1000Base-T Gigabit Ethernet
- Low Signal Loss and Stable Transmission
- Enhanced Crosstalk Suppression
Outdoor Protection Features
- UV Resistant Outer Jacket
- Moisture Resistant Construction
- Suitable for Direct Outdoor Exposure
- Temperature Resistant Design
- Durable PE Sheath for Long Service Life
- Excellent Mechanical Strength

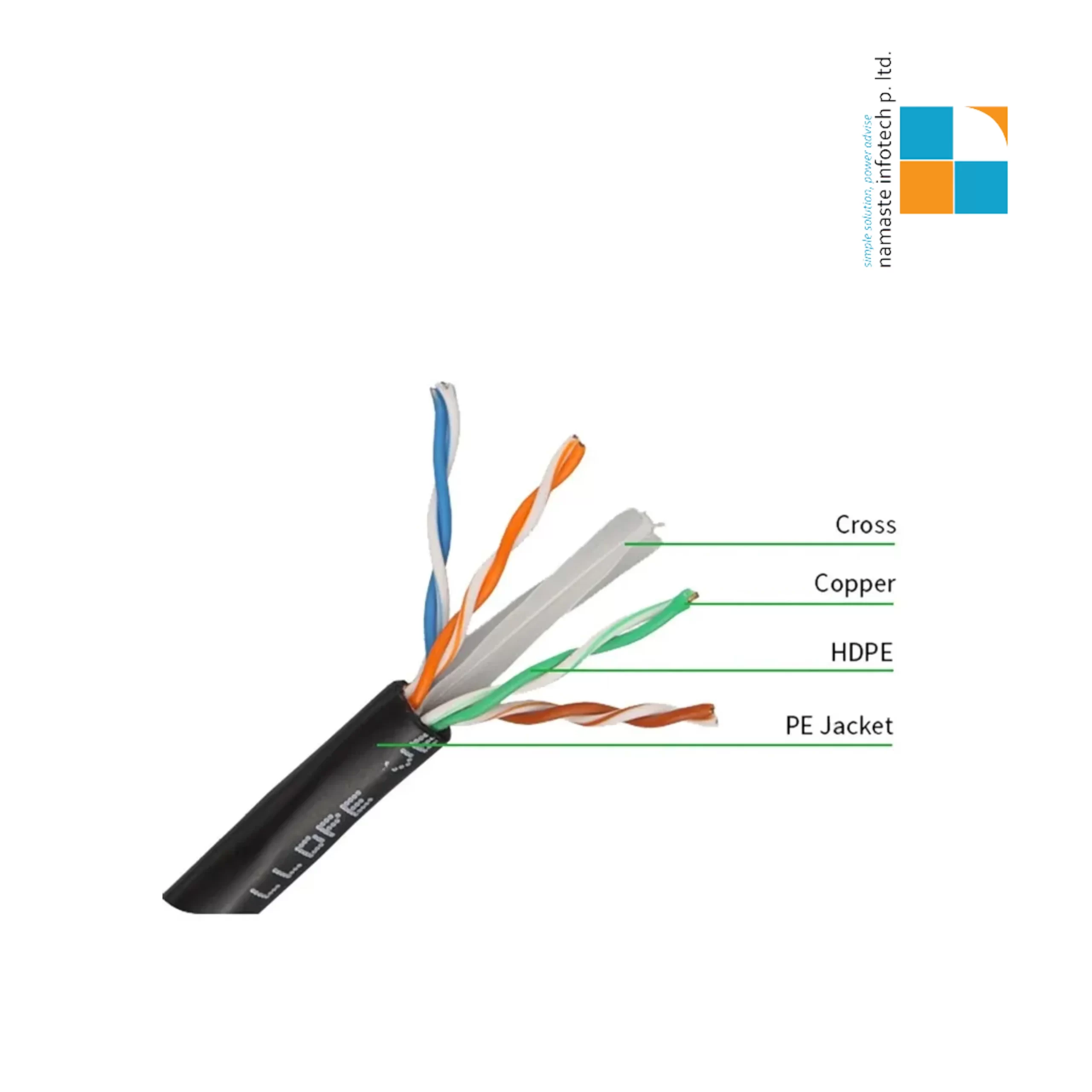

Cable Construction
- Precision Twisted Pair Technology
- Optimized Pair Geometry
- Stable Impedance Characteristics
- Low Insertion Loss
- Improved NEXT (Near-End Crosstalk) Performance
- Designed for Structured Cabling Systems
Applications
- Outdoor Network Installations
- IP CCTV Surveillance Systems
- Wireless Access Points
- Campus Networks
- Industrial Networking
- Building-to-Building Connections
- Telecom Infrastructure
- Enterprise LAN Deployments
- Smart City Projects
Standards & Compliance
- ANSI/TIA/EIA-568 Cat6 Compliant
- ISO/IEC 11801 Compliant
- RoHS Compliant
- Supports Gigabit Ethernet Networks
- Suitable for Structured Cabling Installations
