Description
Detailed Specifications
Audio & Speaker
- 30W high-fidelity HD coaxial speaker
- Frequency response: 110 Hz – 20,000 Hz
- Sensitivity: up to 95 dBA @ 1W/1m
- Supports wide-band & full-band audio codecs (Opus, G.722, etc.)
- HD acoustic chamber for clear sound output
Communication Features
- SIP paging support
- Multicast paging
- Group paging capability
- Push-to-Talk (PTT) support
- Call waiting with priority override
- Built-in blocklist / allowlist control
Network & Interfaces
- 1× 10/100 Mbps Ethernet port
- Supports PoE / PoE+ / PoE++
- 1× USB port
- 1× 3-pin differential line-out port
- 1× 2-pin switch-in input port
- 1× alarm-in input port
- DC 24V power input support
Security & Protocols
- TLS, SRTP, HTTPS encryption
- 802.1x network security
- AES encrypted configuration files (256-bit)
- Secure boot support
- MD5 / MD5-sess authentication
Management & Provisioning
- GDMS cloud device management support
- TR-069 / XML provisioning
- Firmware upgrade via HTTP / HTTPS / TFTP
- Batch device management support
Physical & Power

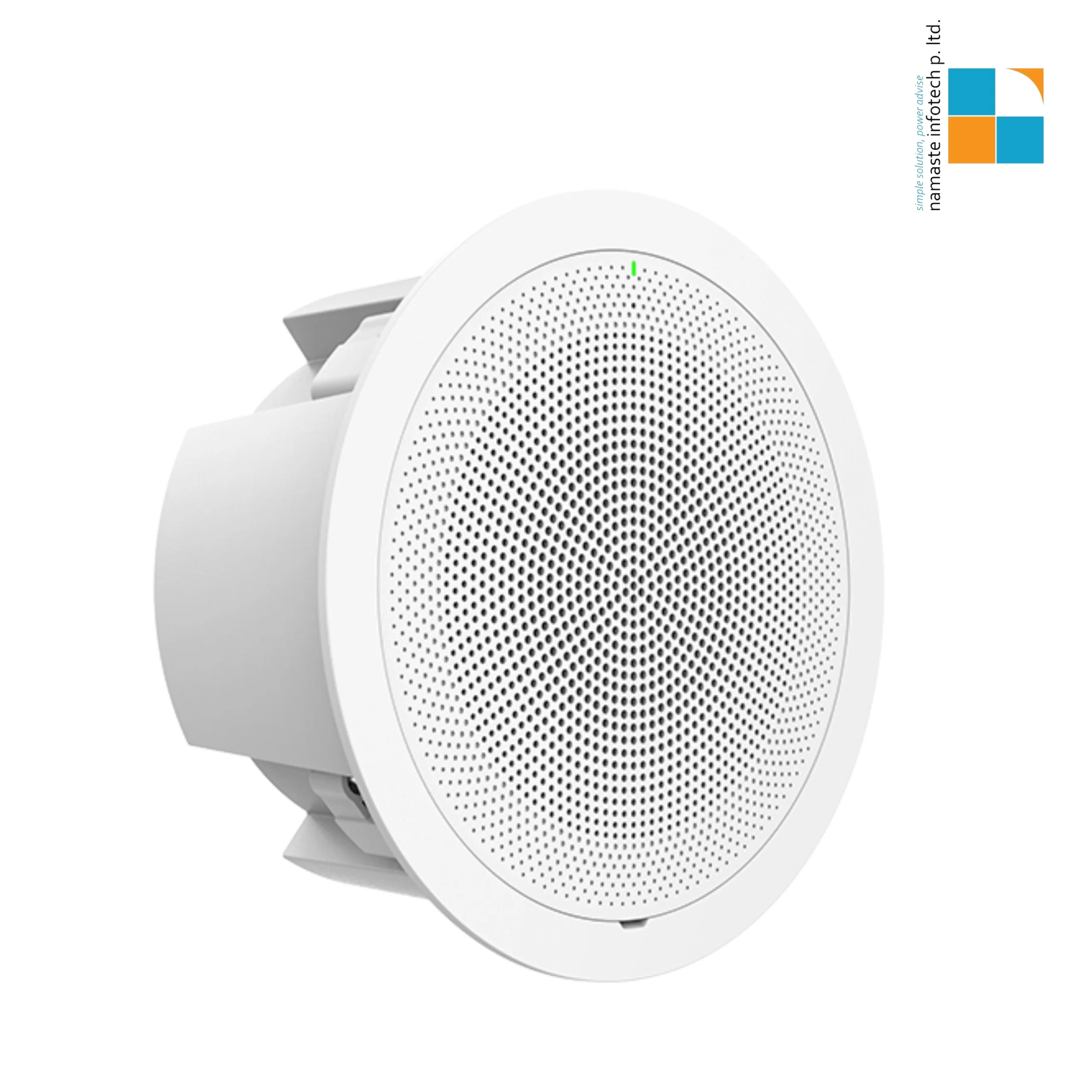

- Ceiling-mountable design
- Diameter: ~257.5 mm
- Depth: ~118 mm
- Weight: ~2.14 kg
- PoE / PoE+ / PoE++ powered or 24V DC input
