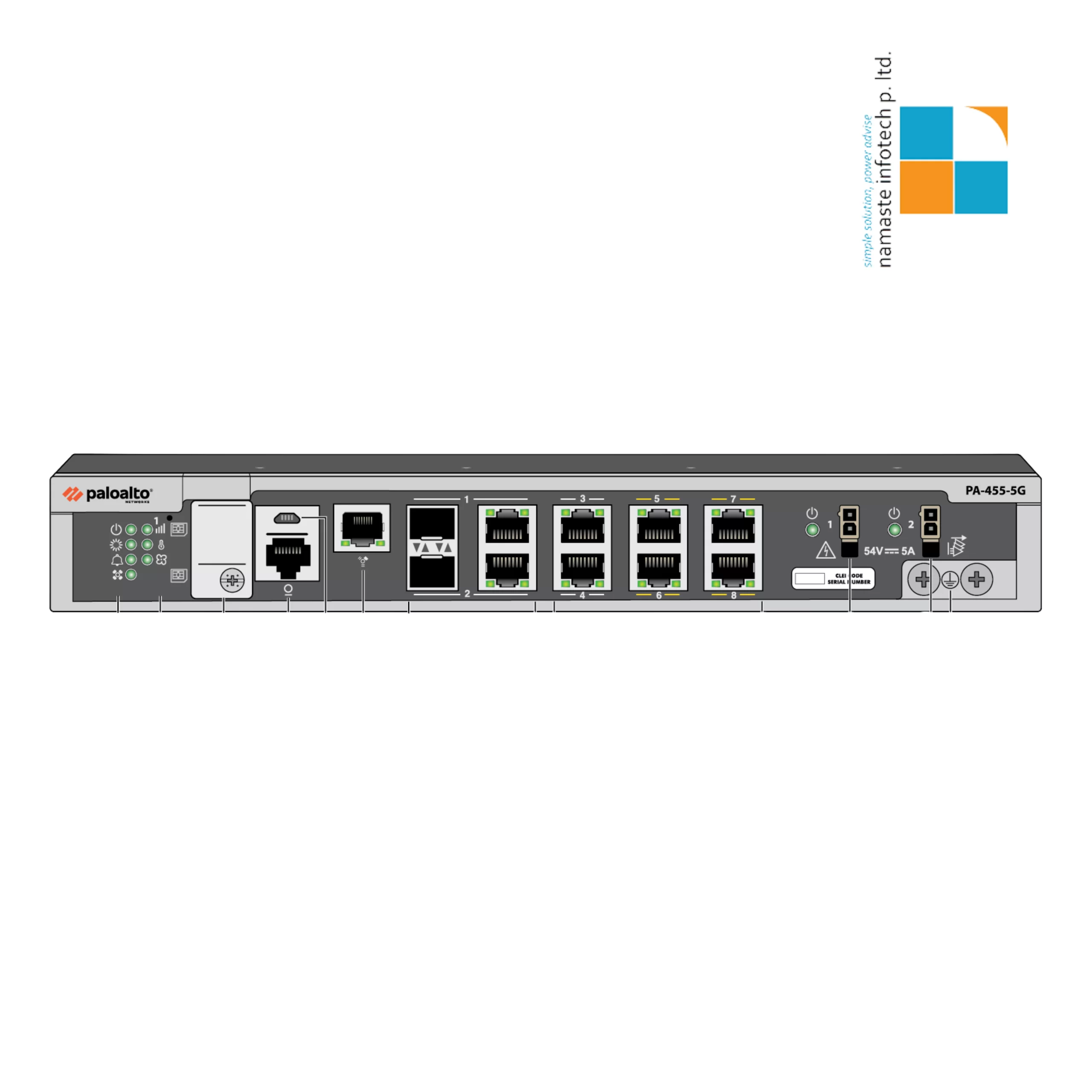

Palo Alto Networks PA-455-5G

Description

1. Performance

• Firewall Throughput (App-ID): 3.2 Gbps

• Threat Prevention Throughput: 1.8 Gbps

• IPsec VPN Throughput: 650 Mbps

• New Sessions per Second: 48,000

• Max Concurrent Sessions: 300,000

2. Networking & Routing Features

• Routing Protocols: OSPFv2/v3, BGP, RIP, PIM, IGMP

• Supports IPv4, IPv6, PPPoE

• Policy-Based Routing (PBR)

• VLAN Support: Up to 4094 VLAN tags

• SD-WAN capability

• NAT, QoS, App-ID, User-ID processing

3. Security Features

• Intrusion Prevention System (IPS)

• Advanced Threat Prevention

• URL Filtering & Web Security

• Data Loss Prevention (DLP)

• SSL/IPSec inspection & decryption

• Machine Learning-based threat detection

4. 5G & Wireless Capabilities

• Built-in 5G cellular connectivity

• 4x multi-band 5G antennas

• Supports FR1 (sub-6GHz) and LTE bands

• Frequency ranges: 615 MHz – 3700 MHz

5. Hardware & System Architecture

• CPU: Multi-core architecture (management + dataplane cores)

• Storage: 128 GB SSD

• Form Factor: 1U desktop/rack-mountable

• Cooling: Active cooling with dual-rotor fan (unique in PA-400 series)

6. Interfaces & Connectivity

• Ethernet / Fast Ethernet / Gigabit Ethernet ports

• PoE Support (up to 60W per port)

• Management & console interfaces

• SIM slot for cellular connectivity

7. Power & Physical Specs

• Power Supply: AC 100–240V (50/60 Hz)

• Dimensions: ~30.3 × 28.3 cm

• Weight: ~4.08 kg

8. Environmental Specifications

• Operating Temperature: 0°C to 40°C

• Humidity: 10% – 90% non-condensing

• Max Altitude: 10,000 ft

• Acoustic Noise: Silent operation

9. Virtualization & Capacity

• Virtual Systems: 1 (base) / up to 5 (max)

• Suitable for multi-tenant environments
