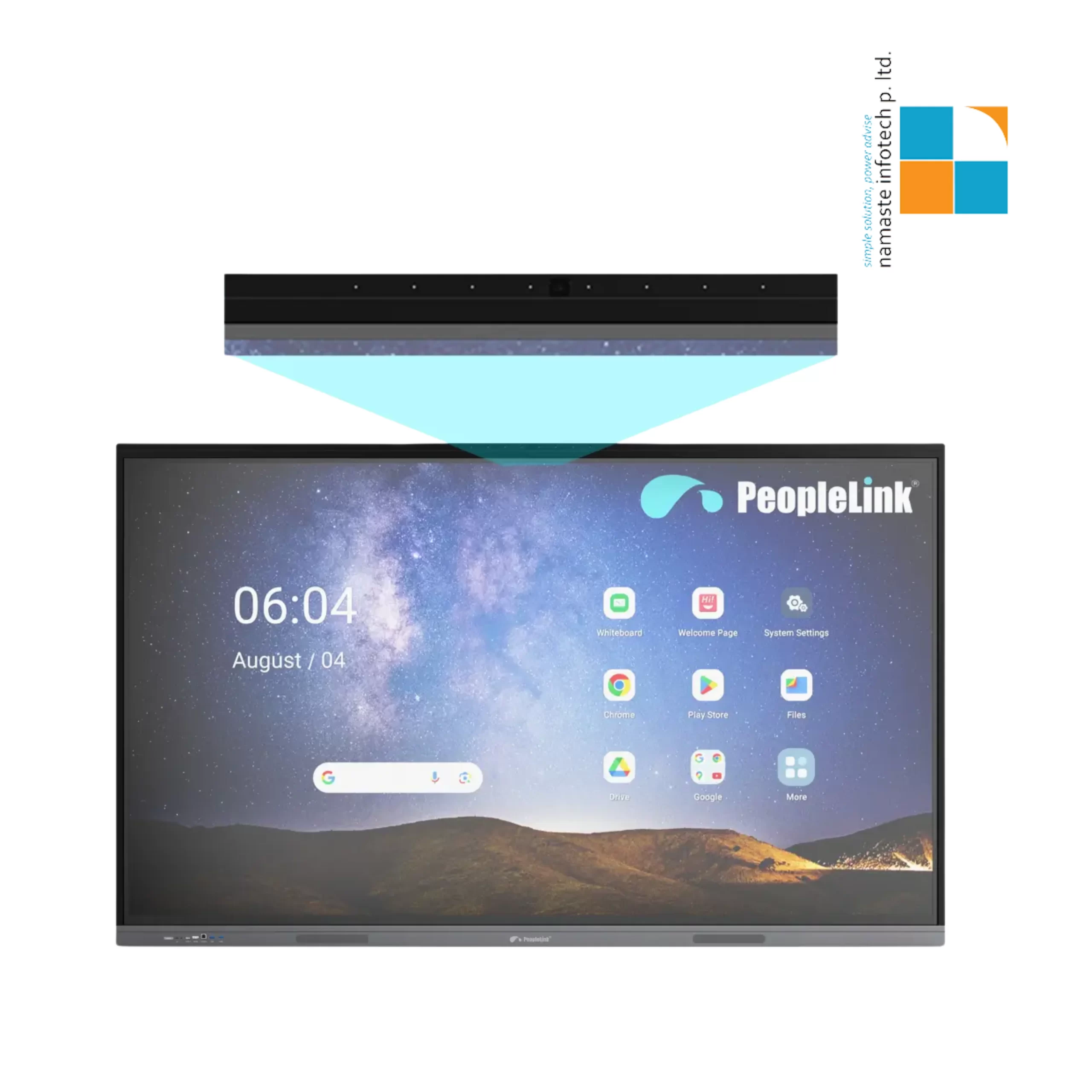

Peoplelink AILive Board Plus X55HC

Description

1. Display

• Screen Size: 55 inches

• Resolution: 3840 × 2160 (4K UHD)

• Aspect Ratio: 16:9

• Brightness: Up to 450 cd/m²

• Contrast Ratio: 4000:1 (typical)

• Viewing Angle: 178° (H/V)

• Display Colors: 1.07 Billion (10-bit)

• Backlight: DLED

• Lifespan: ≥ 50,000 hours

2. Touch and Writing

• Touch Technology: Infrared (IR) Touch

• Touch Points: Up to 40-point multi-touch

• Touch Accuracy: ±1 mm

• Response Time: ≤ 6 ms

• Input Mode: Finger / Passive IR Pen

• Writing Height: ≤ 5 mm

• Object Recognition: ≥ 2–2.5 mm

3. System Performance

• Operating System: Android 14.0

• CPU: Quad-core ARM Cortex A73

• GPU: Mali-G52

• RAM: 8 GB

• Storage: 128 GB

• Working Frequency: ~1.5 GHz

4. Audio

• Speakers: 2 × 20W

• Audio System: 2.0 channel

5. Camera (Optional)

• Resolution: 48 MP

• Position: Top frame

• Features:

  1. AI gesture control

  2. Face tracking

  3. Voice tracking

6. Microphone (Optional)

• Microphone Array: 8 microphones

• Pickup Range: 0–8 meters

• Features:

  1. Echo cancellation

  2. Noise suppression

  3. Gain compensation

7. Connectivity

• Wi-Fi: Dual-band (2.4GHz / 5GHz)

• Bluetooth: Version 5.2

• Wireless Range: Up to 10 meters

8. Power & Build

• Power Supply: 100–240V AC

• Max Power Consumption: ~400W (typical for series)

• Standby Power: ≤ 0.5W

• Build: Industrial-grade interactive flat panel

9. Key Highlights

• 4K Ultra HD interactive display

• 40-point ultra-smooth touch

• Android 14 with powerful hardware

• AI-enabled collaboration (camera & mic)

• Ideal for classrooms, boardrooms & hybrid meetings
