Description
Camera Features

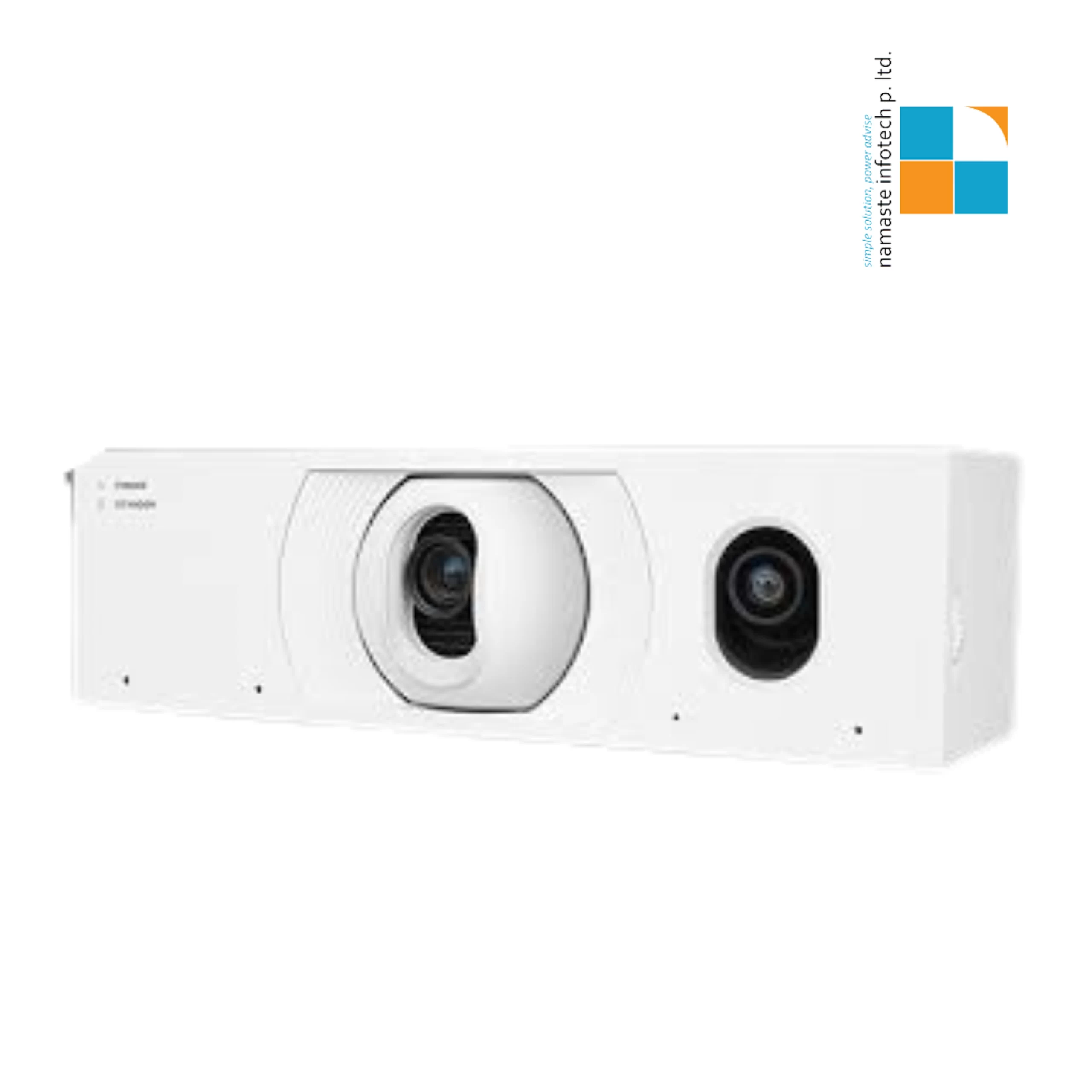

- Camera Type: AI Dual-Lens Classroom Tracking Camera
- Resolution: 4K Ultra HD (3840 × 2160)
- Lens Type: Dual Lens (Panoramic + Close-up)
- AI Features: Auto Tracking, Facial Recognition, Behavior Analysis
- Digital Zoom: 2×
- Preset Positions: 255
- Preset Accuracy: 0.5°
Close-Up Camera Specifications
- Sensor: 1/2.7″ CMOS, 8.29MP
- Lens Mount: M12
- Student Close-up Lens: f=7.37mm, 43° HFOV
- Teacher Close-up Lens: f=13.1mm, 25° HFOV
- Pan Angle: ±40°
- Tilt Angle: +5° ~ -30°
- Pan Speed: Up to 60°/s
- Tilt Speed: Up to 30°/s
- Minimum Illumination: 0.5 Lux
- Noise Reduction: 2D & 3D DNR
- Backlight Compensation: Supported
Panoramic Camera Specifications
- Sensor: 1/2.7″ CMOS, 4.93MP
- Student Panoramic Lens: f=2.2mm, 110° HFOV
- Teacher Panoramic Lens: f=7.37mm, 43° HFOV
- Tilt Angle: 0° ~ -24°
- Image Flip: Supported
- Image Freeze: Supported
Video & Network Specifications
- Video Compression: H.265 / H.264 / MJPEG
- Stream Output: Quad Stream
- Frame Rate: 25/30fps
- Supported Protocols: RTSP, RTMP, SRT, ONVIF, DHCP, NDI
- Ethernet Port: RJ45 10/100Mbps
- PoE Support: IEEE 802.3af
- USB Interface: USB 3.0 Type-C
- USB Protocol: UVC 1.1
- Audio Protocol: UAC 1.0
Audio Specifications
- Audio Input: 1 × Line In
- Audio Output: 1 × Line Out
- USB Audio: Supported
- Audio Compression: AAC / G.711A
- Beamforming Audio: Supported
- 3A Audio Processing: Supported
System Compatibility
- Windows: Windows 7 / 8.1 / 10 / 11
- macOS: macOS 10.10 and above
- Linux: UVC Supported
- Chromebook: Supported
Physical Specifications
- Power Supply: DC 12V / PoE
- Power Consumption: 12W Max
- Operating Temperature: -10°C to 40°C
- Dimensions: 242 × 86 × 70 mm
- Weight: 0.62 kg
- MTBF: 30,000 Hours
